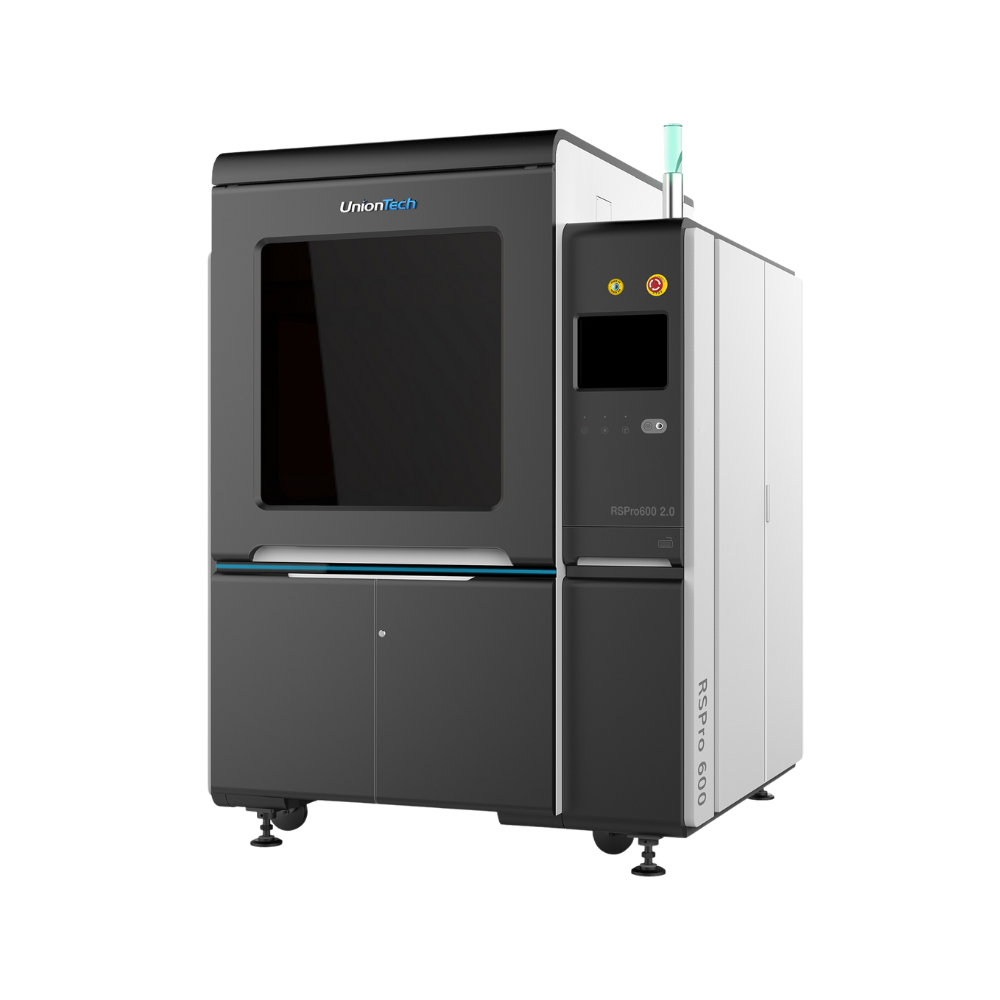

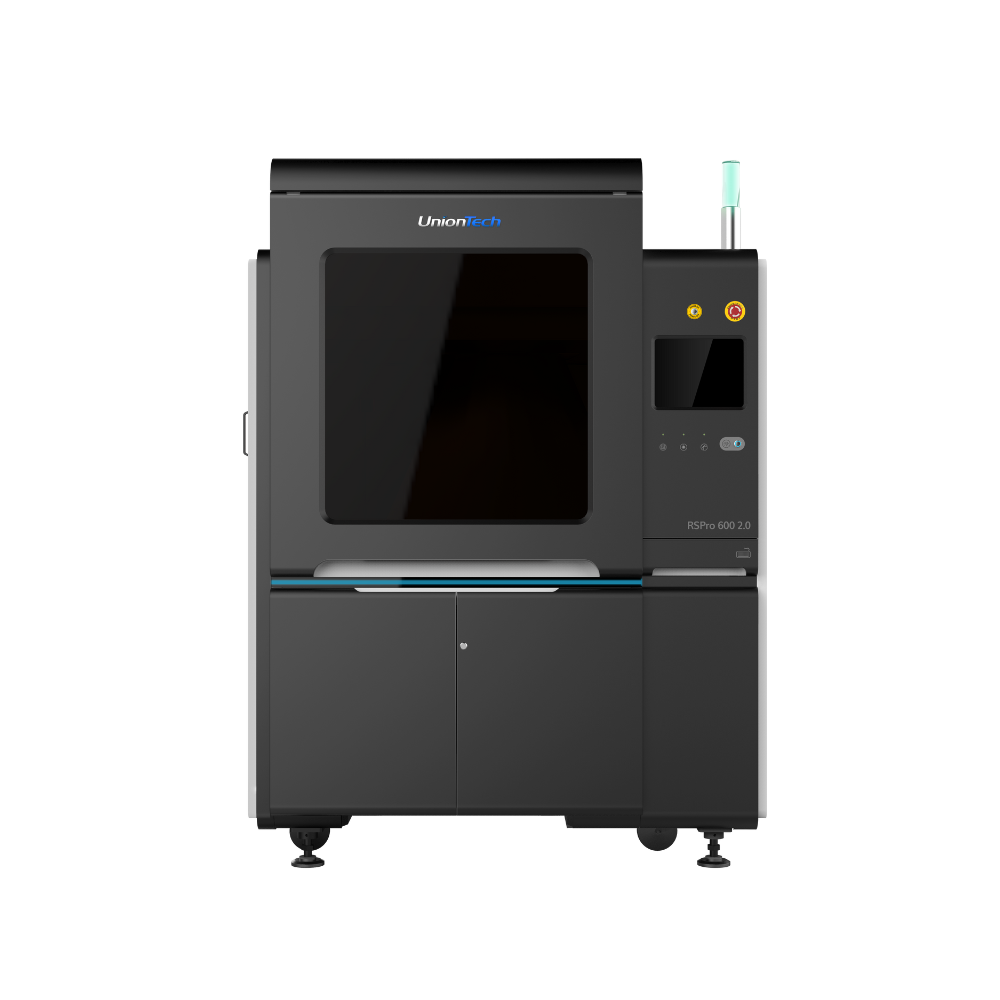

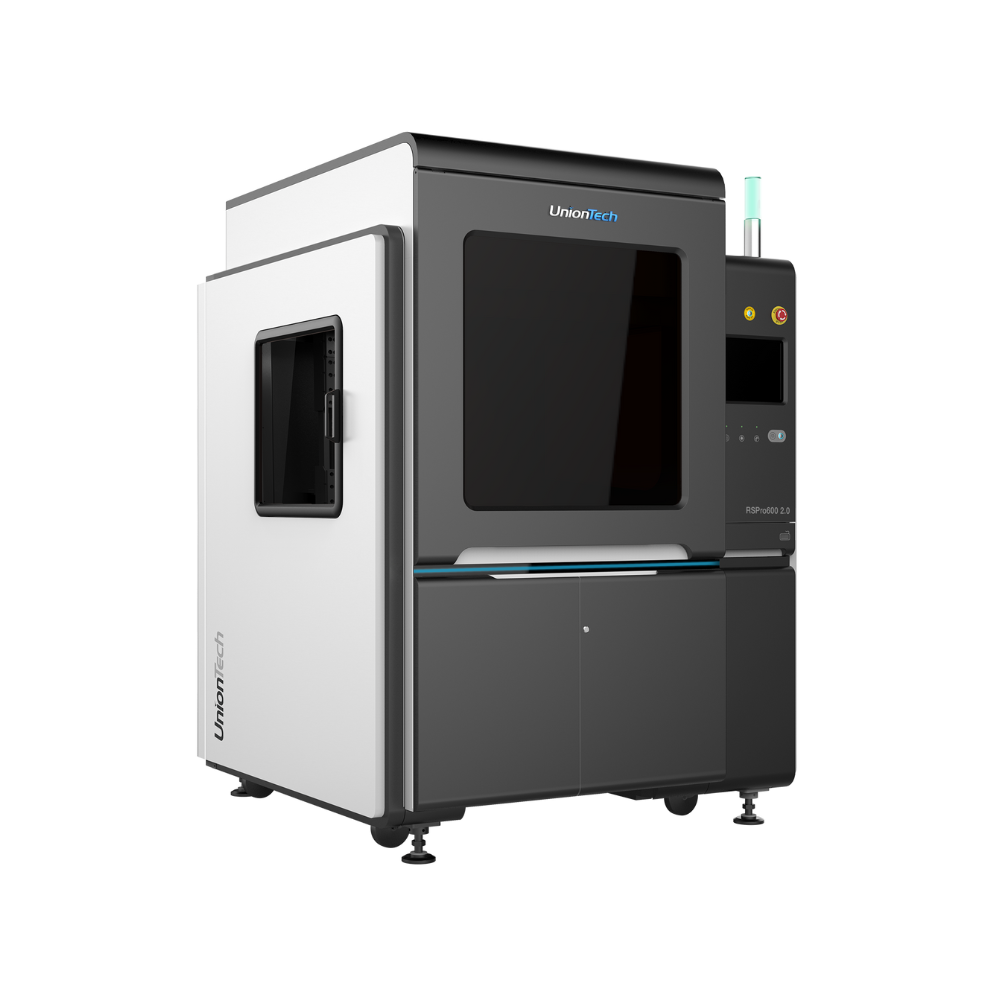

RSPro600 2.0
Industrial Resin Printing for Businesses
RSPro600 2.0 is an industrial-grade, large-format SLA printer offering ±0.10 mm accuracy for parts under 100 mm and surface roughness down to 1.50 Ra µm. An upgrade to the Lite600 series, it features durable hardware for OEM use and a larger build plate of 600 x 600 x 500 mm.
Browse UnionTech 3D printers.
The products below are optional but included in the quote for successful operation.
Equipment: PCU-60 Curing Unit, RRT-60 Resin Tank
Technical Specifications
Download DatasheetSLA (Stereolithography)
600 × 600 × 500 mm
Size < 100 mm: ±0.1 mm
Size ≥ 100 mm: ±0.1% × Size
0.05–0.25 mm
355 nm, Solid-State Frequency-Tripled Nd:YVO4
Dynamic and Variable
0.12–0.2 mm
6–10 m/s
UnionTech™ RSCON
Interchangeable
STL
Ethernet, IEEE 802.3, TCP/IP
200–240 VAC, 50/60 Hz
3.0 kVA
22–26 °C
< 40%
1,550 × 1,600 × 2,115 mm
1,490 kg
CE
UTR 3100NE, UTR 6180-90R, UTR 8080, UTR 8100, UTR 9000, UTR 9000E, Anima 405G, Crysta 8Q, Crysta EB, FIX C4, Pure BLK, Temp R220, Therm 1, TUF 127, TUF 182, Xtyre 005, Xtyre 009
The system is an open platform; besides the listed materials, it is also compatible with third-party materials that the machine specifications support. Parameters must be developed separately.
High Efficiency with a Variable Beam
With a variable laser beam, automatic laser calibration and industry-leading liquid level control, the RSPro600 2.0 delivers efficiency in multi-material production thanks to its interchangeable resin tank.
Variable Laser Beam
A fine beam for contours and a wide beam for infill combine speed and detail in the same layer.
Automatic Laser Calibration
Laser power and focus are calibrated automatically, reducing operator intervention.
Industry-Leading Liquid Level Control
Precise level control keeps layer thickness stable.
Interchangeable Resin Tank
Changing the tank allows quick switching between different resins.
Large Build Volume
The 600 × 600 × 400 mm volume builds medium and large parts in one go.
UT-ONE Remote Monitoring
Multi-machine management and data analysis keep production efficiency in view.
Exhaust Manifold Pattern for Investment Casting
A honeycomb-filled investment casting pattern is turned directly into an investment casting mold without tooling costs; fine channels and flange details are preserved.
System Workflow
-
Data Preparation
Supports and slicing are prepared in Polydevs Pro.
-
Resin Preparation
The resin tank is filled and heated.
-
3D Printing
The laser cures the resin layer by layer.
-
Part Removal
The platform is raised and the part is removed.
-
Washing
Residual resin is cleaned off with solvent.
-
UV Curing
The part is UV-cured in the PCU unit.
