Crysta-8Q
Transparent 3D Printing
Crysta-8Q is a transparent SLA resin known for its precision and longevity. It is perfectly suited for fabricating clear prototypes and models that reveal inner structures and intricate details.
Technical Specifications
Download DatasheetTransparent
312–420 Cps (25 °C)
1.12 g/cm³ (25 °C)
7.7 mJ/cm²
0.18 mm
0.1 mm
70–80% (5 mm, GB/T 12010.8-2010)
44–62 MPa (ASTM D638)
2,590–2,760 MPa (ASTM D638)
7–11% (ASTM D638)
75–84 MPa (ASTM D790)
2,670–2,870 MPa (ASTM D790)
27–38 J/m (ASTM D256)
83 (ASTM D2240)
40–51 °C (ASTM D648, 66 Psi)
42–58 °C (DMA, E″ Peak)
Lite600, Lite600 2.0, Lite800, Pilot250, Pilot450, RSPro600 2.0, RSPro800 2.0, RSPro800 X, RSPro1400, RSPro1800, RSPro2100
It can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.
Key Features and Applications
Key Features
- Offers superior clarity and excellent accuracy.
- Maintains strength and dimensional stability in humid environments.
- Burns out completely and forms very few bubbles.
Applications

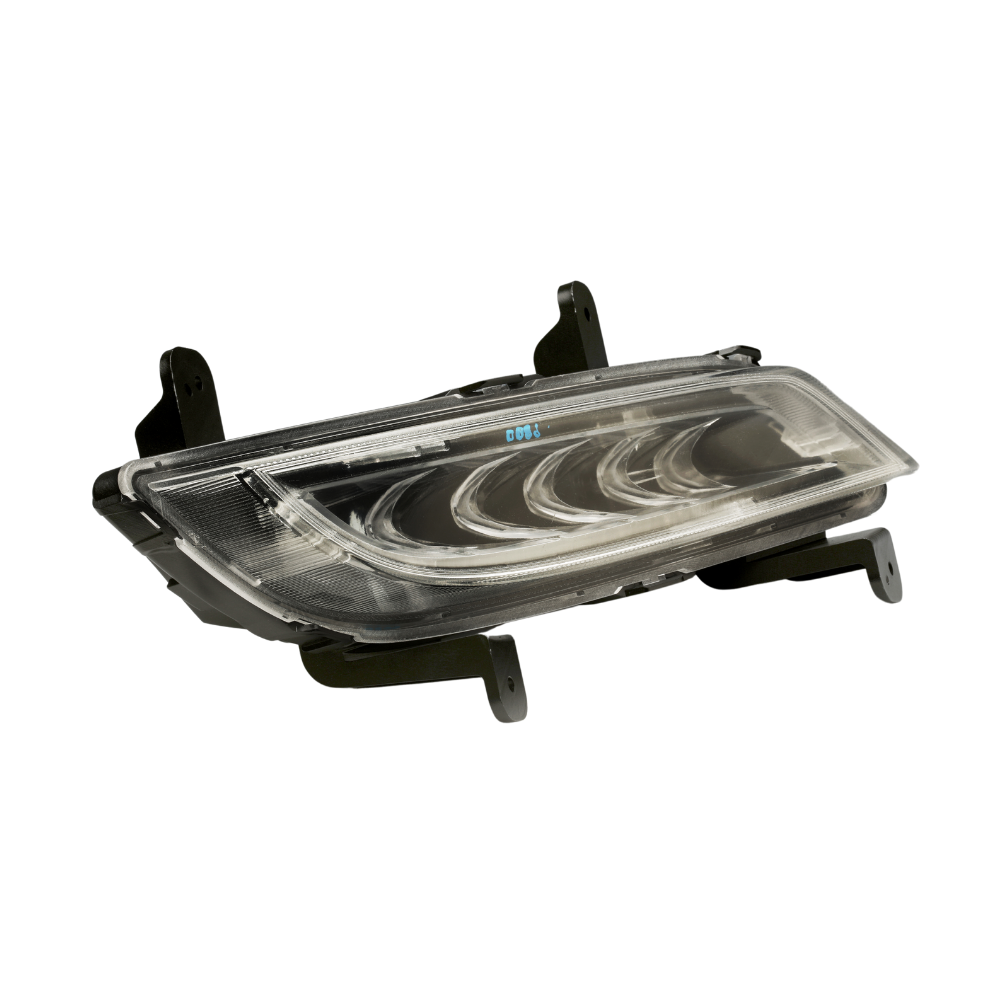

- Ideal for transparent concept models in automotive, medical and consumer electronics.
- Master model production for casting.
