Lite600
Efficient and Stable

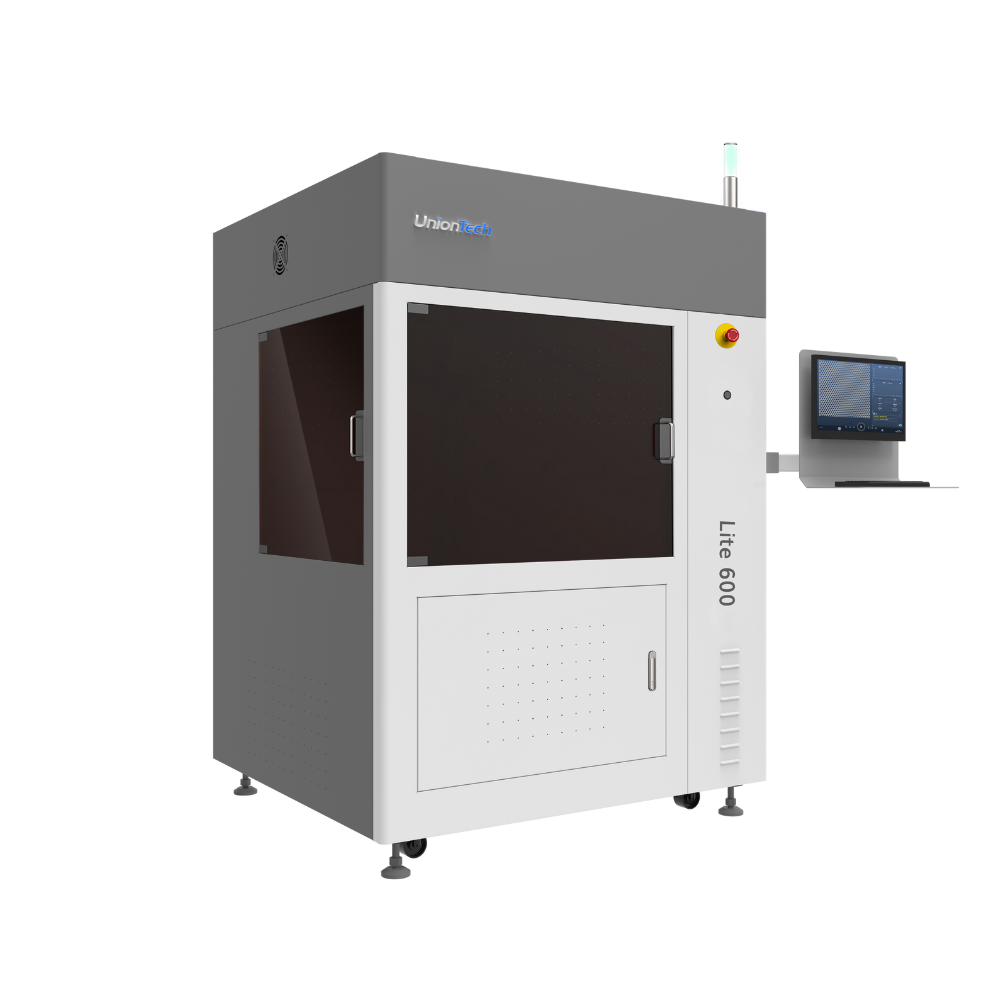

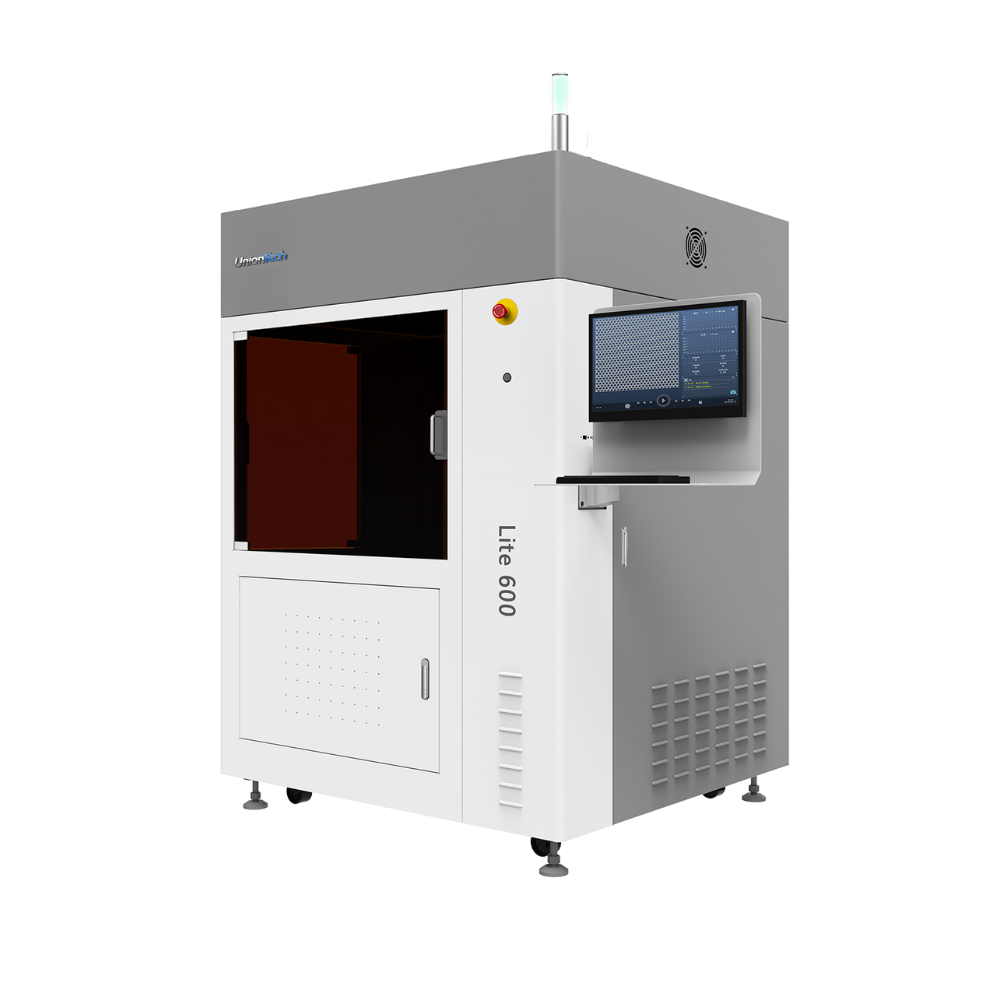

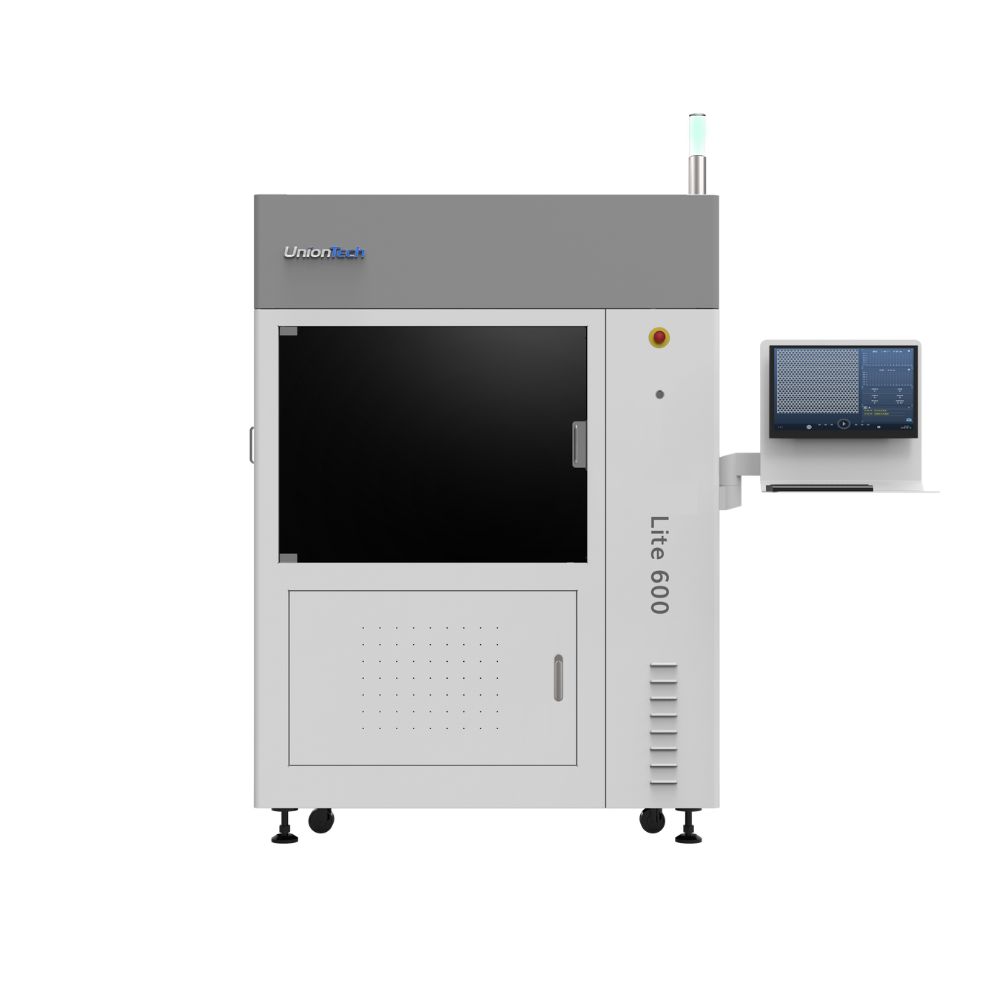

Lite600, a mid-format industrial-grade SLA 3D printer supports various engineering resins for small-batch printing. It's a cost-effective option, offering an efficient, precise, and stable one-stop solution for small-batch production needs.
Browse UnionTech 3D printers.
The products below are optional but included in the quote for successful operation.
Equipment: PCU-60 Curing Unit, RRT-60 Resin Tank
Technical Specifications
Download DatasheetSLA (Stereolithography)
600 × 600 × 400 mm
Size < 100 mm: ±0.1 mm
Size ≥ 100 mm: ±0.1% × Size
0.05–0.25 mm
Solid-State Frequency-Tripled Nd:YVO4
355 nm
0.12–0.8 mm
8–15 m/s
UnionTech™ RSCON
Interchangeable / Fixed
STL
Ethernet, IEEE 802.3, TCP/IP
200–240 VAC, 50/60 Hz, Single Phase
2.6 kVA
22–26 °C
< 40%
1,375 × 1,295 × 1,930 mm
850 kg
CE
UTR 3100NE, UTR 6180-90R, UTR 8080, UTR 8100, UTR 9000, UTR 9000E, Anima 405G, Crysta 8Q, Crysta EB, FIX C4, Pure BLK, Temp R220, Therm 1, TUF 127, TUF 182, Xtyre 005, Xtyre 009
The system is an open platform; besides the listed materials, it is also compatible with third-party materials that the machine specifications support. Parameters must be developed separately.
Economical SLA for Small-Batch Production
Combining high efficiency, accuracy and stability at an affordable cost, the Lite600 is a one-stop solution for small-batch prototype production.
High-Speed Galvanometer Scanning
A scanning speed of 8–15 m/s shortens layer times and increases production efficiency.
Vacuum-Assisted Recoater Blade
Ensures an even, reliable resin coating on every layer.
Removable Platform
Makes part removal and cleaning easier.
Online Laser Measurement
Laser power is measured continuously and process parameters are adjusted fully automatically.
Automatic Liquid Level Control
The resin level is held stable on every layer, preserving dimensional accuracy.
PLC-Controlled Electrical System
An industrial PLC architecture ensures stable, reliable long-term operation.
3D printed with Lite600.
Serial Cover Production
Automotive Interior Trim Parts
Dense Platform Nesting
System Workflow
-
Data Preparation
Supports and slicing are prepared in Polydevs Pro.
-
Resin Preparation
The resin tank is filled and heated.
-
3D Printing
The laser cures the resin layer by layer.
-
Part Removal
The platform is raised and the part is removed.
-
Washing
Residual resin is cleaned off with solvent.
-
UV Curing
The part is UV-cured in the PCU unit.
