Pure BLK
Black Prototyping Resin
Pure BLK is an opaque SLA resin producing deep matte-black parts with excellent surface quality and high detail accuracy. It offers up to 60 °C heat resistance.
SLA (Stereolithography)Photopolymer Resins
Technical Specifications
Download DatasheetOpaque Black Liquid
265 Cps (30 °C)
1.11 g/cm³ (25 °C)
20.3 mJ/cm²
0.10 mm
252 mJ/cm²
65 MPa (ASTM D638)
3,260 MPa (ASTM D638)
6.8% (ASTM D638)
101 MPa (ASTM D790)
3,128 MPa (ASTM D790)
26 J/m (ASTM D256)
84 (ASTM D2240)
62.0 °C (ASTM D648)
57.5 °C (ASTM D648)
Lite600, Lite600 2.0, Lite800, Pilot250, Pilot450, RSPro600 2.0, RSPro800 2.0, RSPro800 X, RSPro1400, RSPro1800, RSPro2100
It can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.
Key Features and Applications
Key Features
- Delivers high black saturation and excellent surface quality.
- Provides high detail fidelity and high strength.
- Shows heat resistance up to 60 °C.
Applications
- Ideal for models for the electronics industry with color requirements.

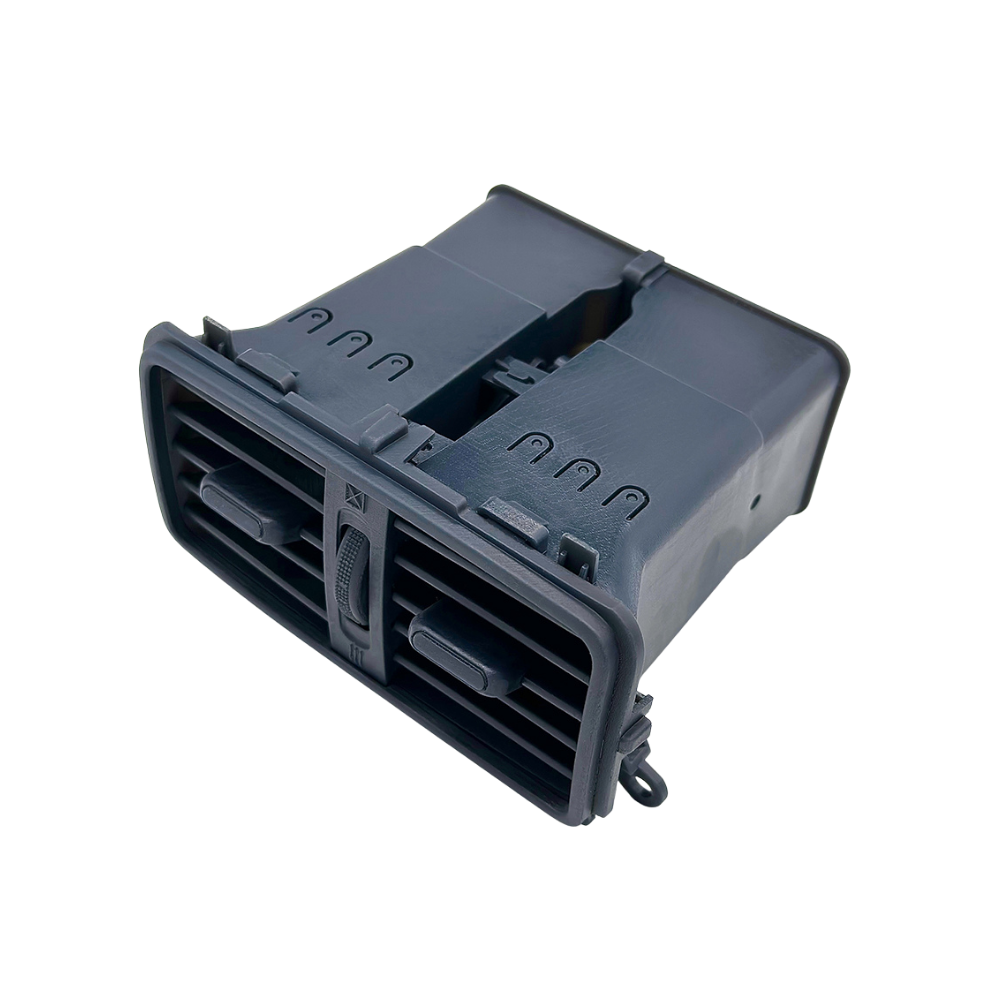

- Appearance prototypes delivered unpainted.
