UTR 6180-90R
Durable, ABS-like Resin
UTR 6180-90R is an ABS-like SLA resin. It offers outstanding machinability, excellent dimensional stability in humid conditions, and heat deflection temperatures ranging from 70-85 °C, making it ideal for functional prototypes and high-precision parts.
Technical Specifications
Download DatasheetWhite
450–530 Cps (27 °C)
1.11–1.15 g/cm³ (25 °C)
7.1–8.1 mJ/cm²
0.14–0.16 mm
0.05–0.12 mm
44–56 MPa (ASTM D638)
2,621–2,775 MPa (ASTM D638)
7–12% (ASTM D638)
70–76 MPa (ASTM D790)
2,675–2,765 MPa (ASTM D790)
29–39 J/m (ASTM D256)
78–90 (ASTM D2240)
70–85 °C (ASTM D648, 66 Psi)
80–95 °C (DMA, E″ Peak)
Lite600, Lite600 2.0, Lite800, Pilot250, Pilot450, RSPro600 2.0, RSPro800 2.0, RSPro800 X, RSPro1400, RSPro1800, RSPro2100
It can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.
Key Features and Applications
Key Features
- Medium viscosity allows easy coating and cleaning.
- Maintains strength and dimensional stability in humid environments.
- Offers superior machinability and heat resistance.
Applications

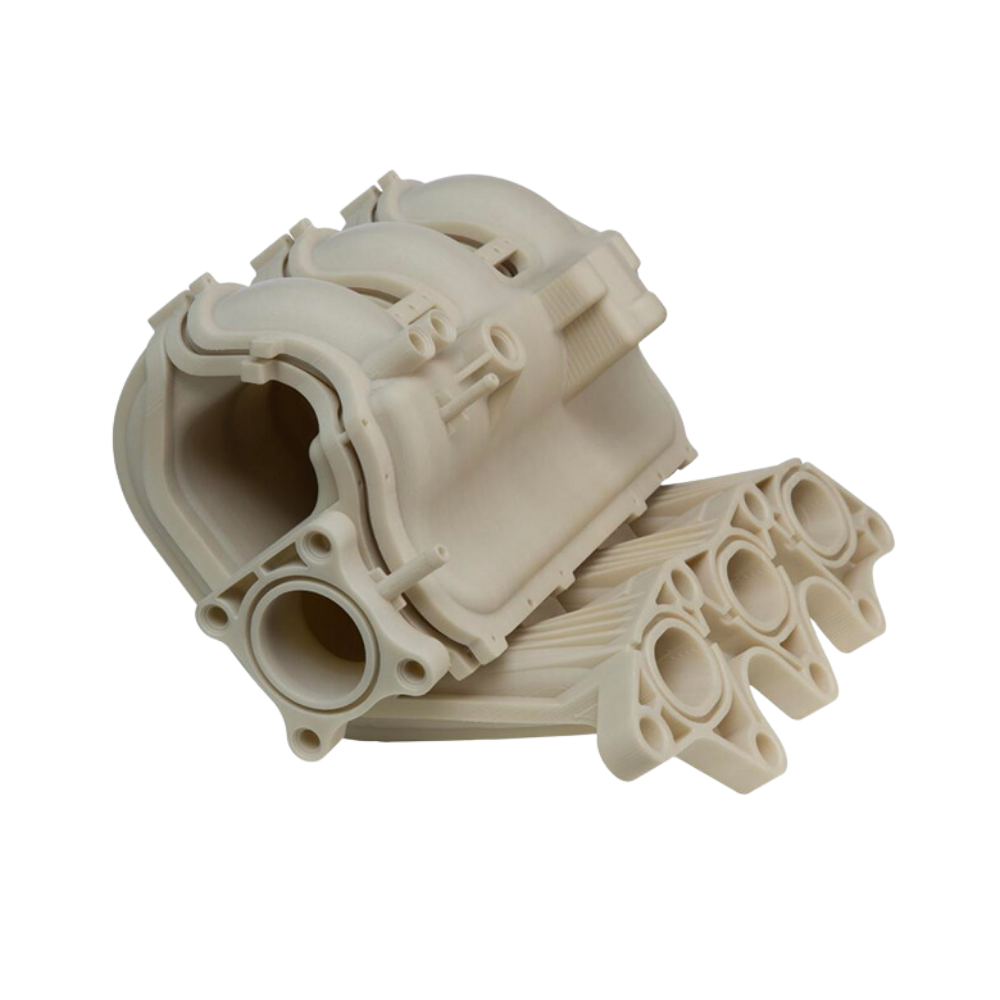

- Ideal for master models and functional prototypes in automotive, medical and consumer electronics.
- High-quality control in vacuum casting parts.
