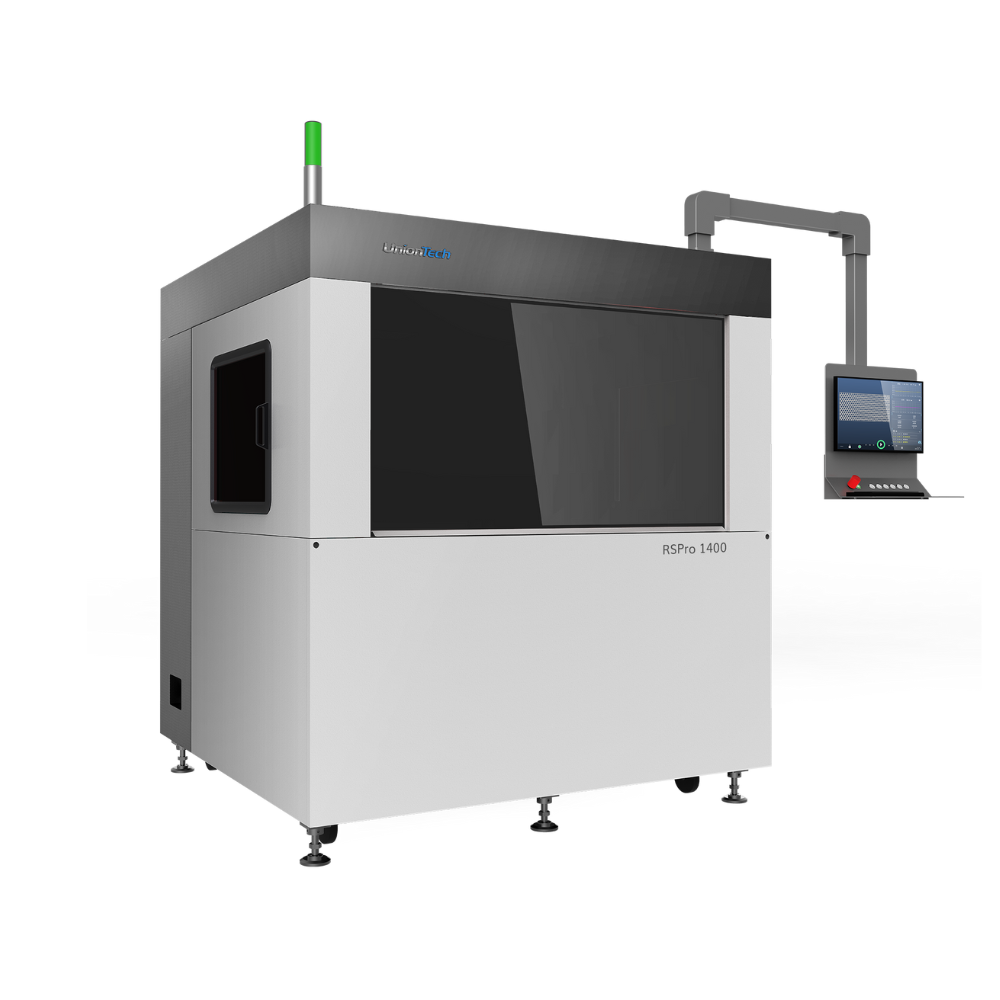

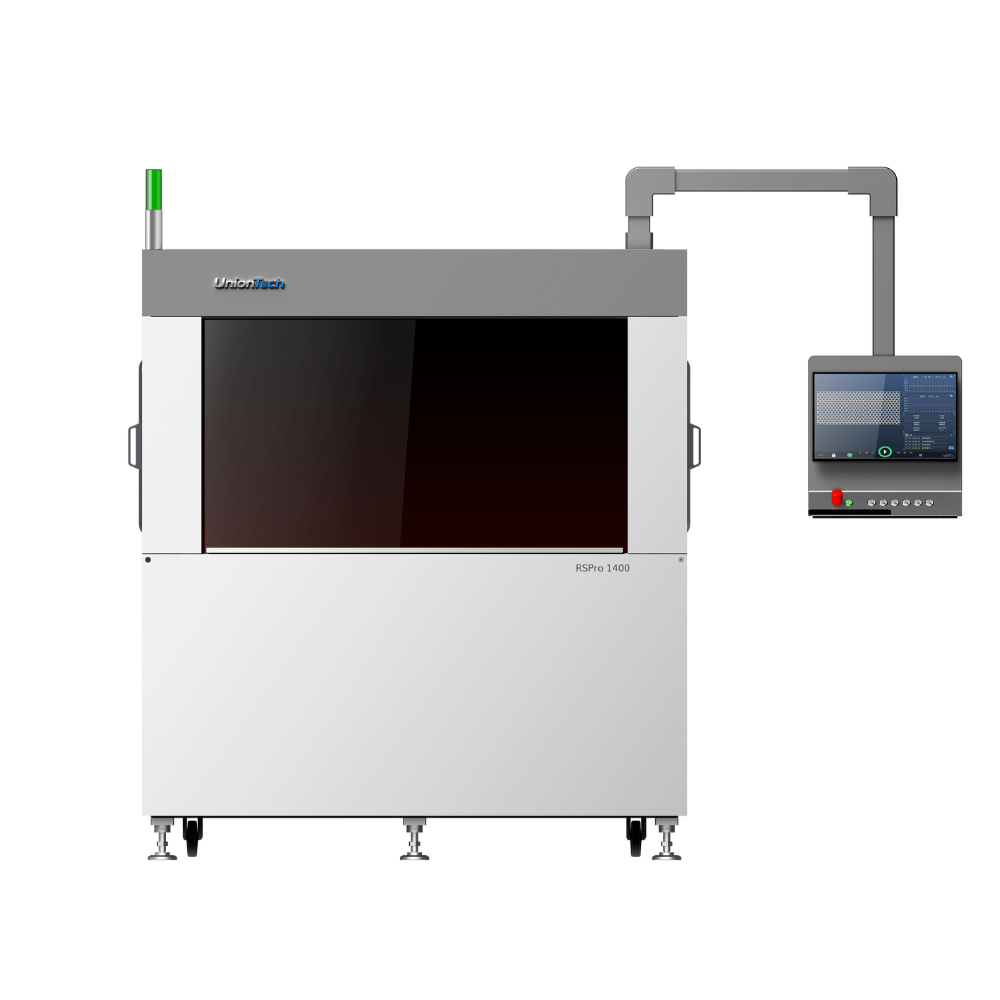

RSPro1400
Large-Format Industrial 3D Printer
RSPro1400 features an innovative 2-laser, dual-scanning system, excelling in industrial resin printing. It can produce parts up to 1.5 meters in size within days or enable toolless production of smaller parts in quantities of thousands within weeks.
Browse UnionTech 3D printers.
The products below are optional but included in the quote for successful operation.
Equipment: PCU-140 Curing Unit, RRT-140 Resin Tank
Technical Specifications
Download DatasheetSLA (Stereolithography)
1,400 × 700 × 500 mm
Size < 100 mm: ±0.2 mm
Size ≥ 100 mm: ±0.2% × Size
0.1–0.25 mm
2 Lasers, Solid-State Frequency-Tripled Nd:YVO4
355 nm
0.12–0.85 mm
6–10 m/s
UnionTech™ RSCON
Fixed
STL
Ethernet, IEEE 802.3, TCP/IP
200–240 VAC, 50/60 Hz
3.9 kVA
22–26 °C
< 40%
1,980 × 1,842 × 1,957 mm
1,907 kg
CE
UTR 3100NE, UTR 6180-90R, UTR 8080, UTR 8100, UTR 9000, UTR 9000E, Anima 405G, Crysta 8Q, Crysta EB, FIX C4, Pure BLK, Temp R220, Therm 1, TUF 127, TUF 182, Xtyre 005, Xtyre 009
The system is an open platform; besides the listed materials, it is also compatible with third-party materials that the machine specifications support. Parameters must be developed separately.
Ultra-Wide Format, 2 Lasers
With an ultra-wide format, high-speed scanning and 2 lasers, the RSPro1400 builds large parts up to 1.4 m long and small batches on a single platform.
Large Build Volume
The 1,400 × 700 × 500 mm volume lets long parts such as bumpers and dashboards be built without splitting.
2 Lasers
2 lasers share the build area, significantly shortening layer time.
High-Speed Scanning
A scanning speed of 6–10 m/s processes large layers efficiently.
Solid-State Nd:YVO4 Laser
The 355 nm laser provides long life and stable beam quality.
Fixed Resin Tank
The large tank ensures uninterrupted operation during long builds.
RSCON Control Software
2-laser coordination and process parameters are managed automatically.
3D printed with RSPro1400.
One-Piece Dashboard Prototype
Air Conditioner Prototype
System Workflow
-
Data Preparation
Supports and slicing are prepared in Polydevs Pro.
-
Resin Preparation
The resin tank is filled and heated.
-
3D Printing
The laser cures the resin layer by layer.
-
Part Removal
The platform is raised and the part is removed.
-
Washing
Residual resin is cleaned off with solvent.
-
UV Curing
The part is UV-cured in the PCU unit.
