Xtyre 009
High-Precision Tire Mold Resin

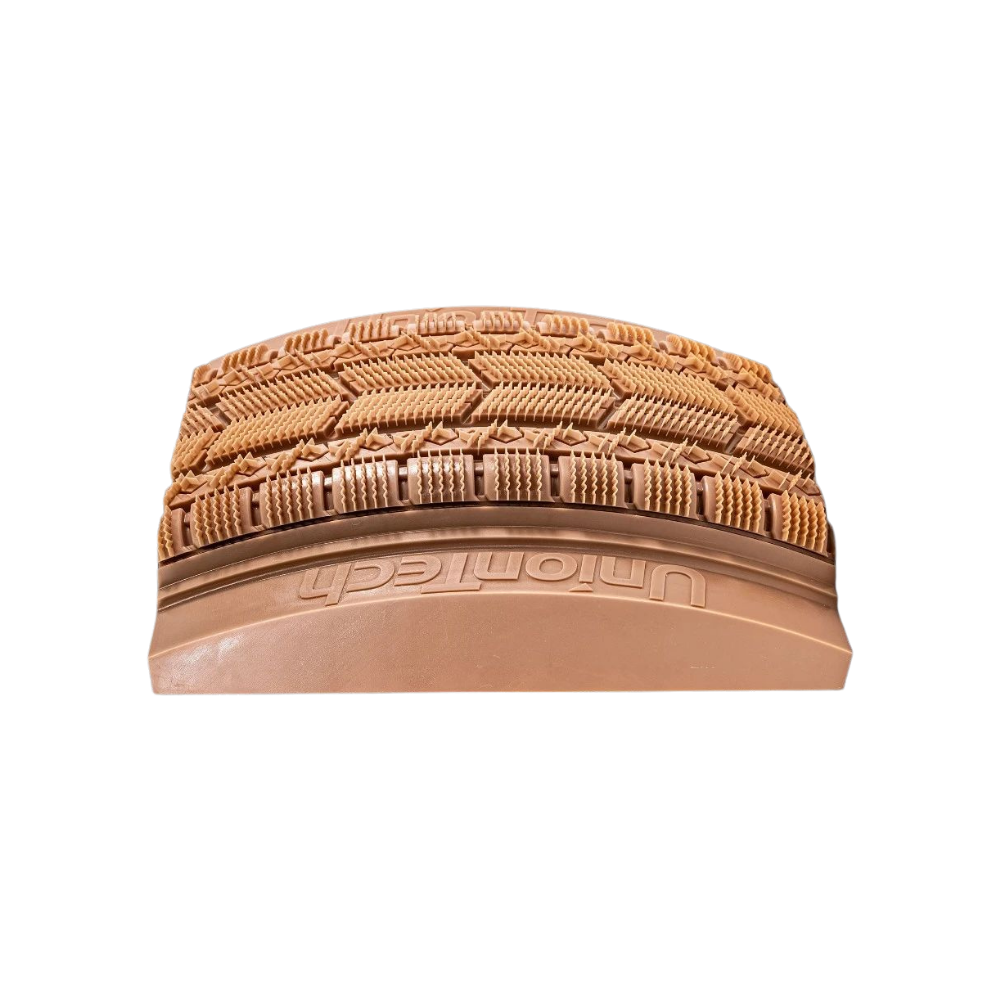

Xtyre 009 is a brown SLA resin engineered for high-accuracy tire mold fabrication. It delivers fine texture, dimensional precision, and excellent surface smoothness when used with UnionTech RA600 systems.
SLA (Stereolithography)Tire Mold Resins
Technical Specifications
Download DatasheetOpaque Brown Liquid
421 ± 40 Cps (30 °C)
1.11 g/cm³ (25 °C)
1.89 mJ/cm²
0.154 mm
9.8 mJ/cm²
40 ± 10 MPa (ASTM D638)
2,118 ± 300 MPa (ASTM D638)
19 ± 3% (ASTM D638)
55 ± 10 MPa (ASTM D790)
1,800 ± 300 MPa (ASTM D790)
30 ± 5 J/m (ASTM D256)
76 ± 4 (ASTM D2240)
49 ± 5 °C (ASTM D648)
43 ± 5 °C (ASTM D648)
RA600, RA900
It can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.
Key Features and Applications
Key Features
- Offers clear texture and high detail fidelity.
- Provides dimensional stability and resin stability.
- Eliminates manual touch-up and steel sheet insertion.
Applications
- Ideal for tire mold production.
- Full-part production with the RA600 in place of traditional CNC wooden molds.
