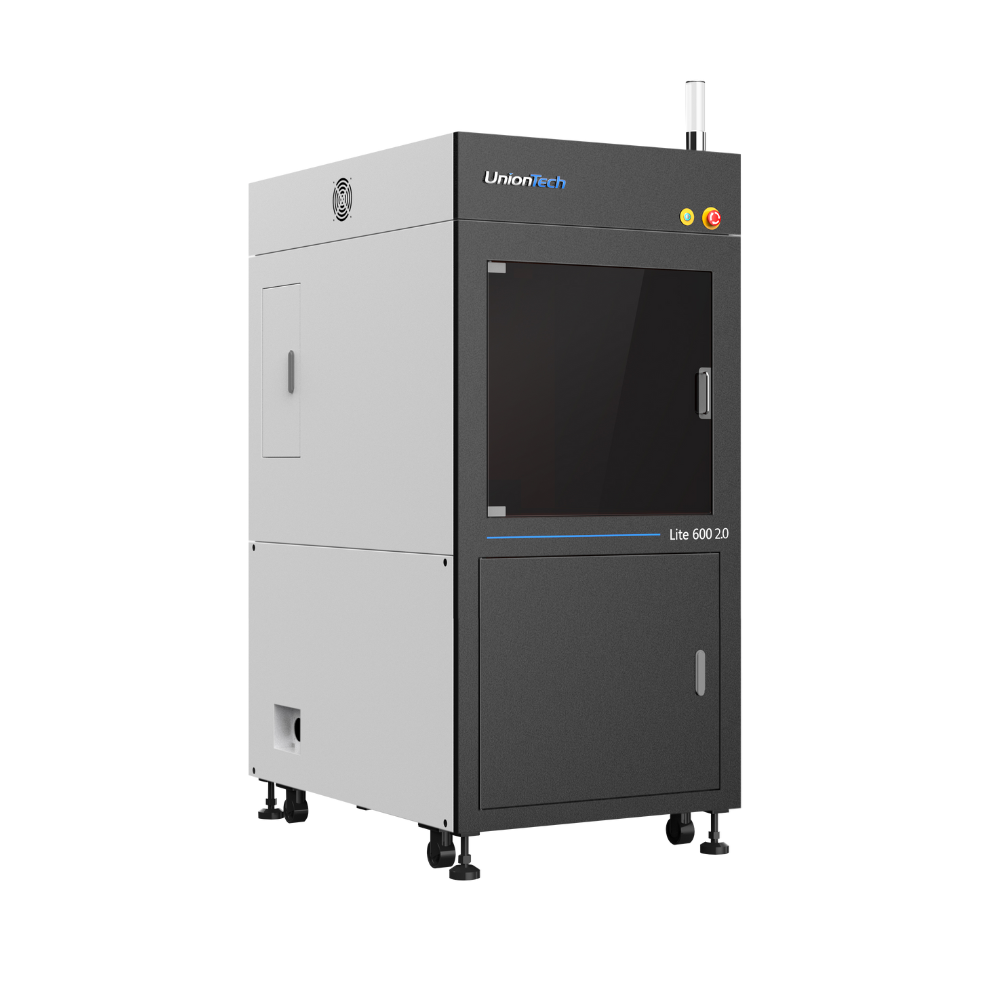

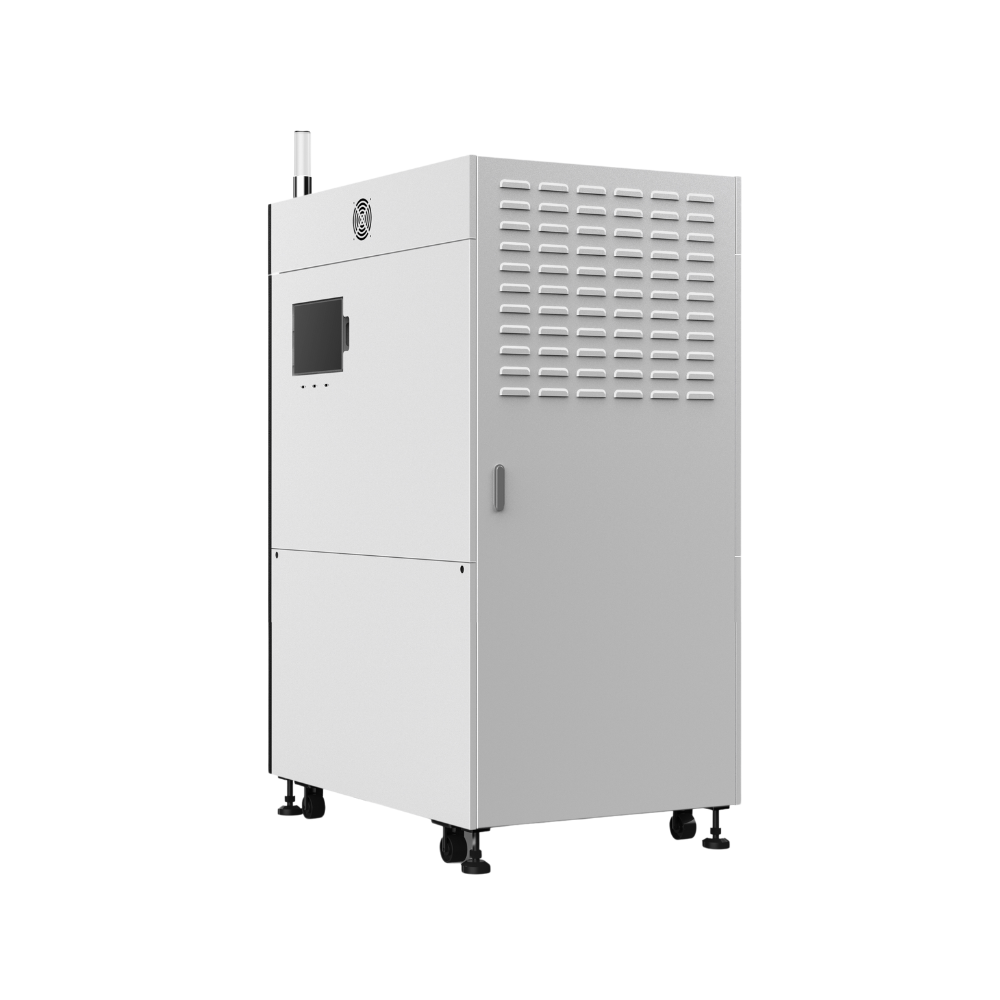

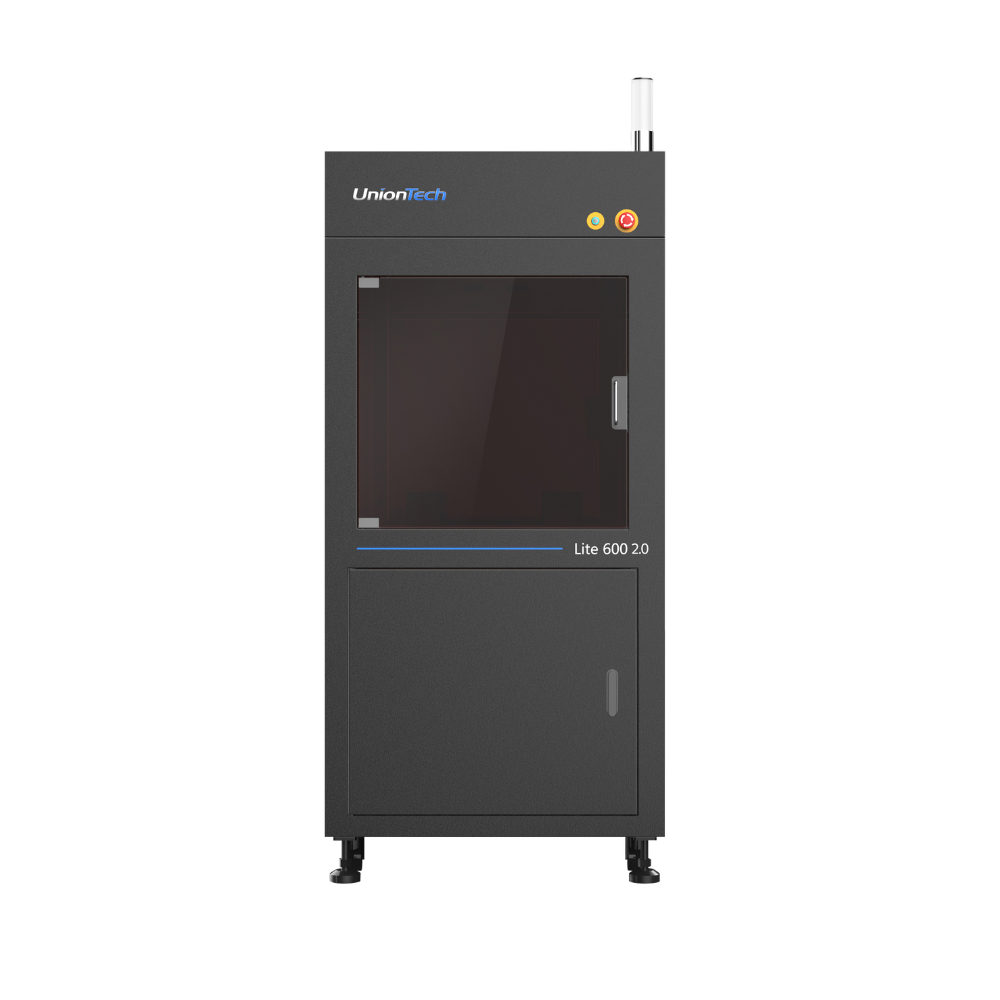

Lite600 2.0
Precise, Industrial SLA 3D Printer
More compact than the Lite600, the Lite600 2.0 offers an enhanced user experience with its ergonomic design. With a dimensional accuracy of ±0.10 mm at 100 mm, high printing speed, and a build volume of 600 x 600 x 400 mm, it is an essential tool for businesses aiming to scale up their additive manufacturing processes.
Browse UnionTech 3D printers.
The products below are optional but included in the quote for successful operation.
Equipment: PCU-60 Curing Unit, RRT-60 Resin Tank
Technical Specifications
Download DatasheetSLA (Stereolithography)
600 × 600 × 400 mm
Size < 100 mm: ±0.1 mm
Size ≥ 100 mm: ±0.1% × Size
0.05–0.25 mm
Solid-State Frequency-Tripled Nd:YVO4
355 nm
0.12–0.80 mm
8–15 m/s
UnionTech™ RSCON
Fixed
STL
Ethernet, IEEE 802.3, TCP/IP
200–240 VAC, 50/60 Hz, Single Phase
2.6 kVA
22–26 °C
< 40% (Non-Condensing)
880 × 1,315 × 1,894 mm
760 kg
CE
UTR 3100NE, UTR 6180-90R, UTR 8080, UTR 8100, UTR 9000, UTR 9000E, Anima 405G, Crysta 8Q, Crysta EB, FIX C4, Pure BLK, Temp R220, Therm 1, TUF 127, TUF 182, Xtyre 005, Xtyre 009
The system is an open platform; besides the listed materials, it is also compatible with third-party materials that the machine specifications support. Parameters must be developed separately.
Higher Quality in a Smaller Footprint
With a variable laser beam, a redesigned liquid level algorithm and factory calibration, the Lite600 2.0 offers the same build volume in a more compact body with higher print quality.
Variable Laser Beam
A beam diameter of 0.12–0.80 mm delivers precision on fine details and speed on large areas.
Redesigned Liquid Level Algorithm
The resin level settles faster, shortening layer transitions.
Factory Calibration
The machine is delivered calibrated, so production can start right after installation.
Compact Body
At 880 mm wide, the same 600 × 600 × 400 mm volume takes up less floor space.
Fixed Resin Tank
A sealed fixed tank reduces resin loss and maintenance needs.
RSCON Control Software
An intuitive interface brings job loading, monitoring and parameter management together on one screen.
3D printed with Lite600 2.0.
Large Part in Clear Resin
Functional Prototype Batch
Serial Production Layout
System Workflow
-
Data Preparation
Supports and slicing are prepared in Polydevs Pro.
-
Resin Preparation
The resin tank is filled and heated.
-
3D Printing
The laser cures the resin layer by layer.
-
Part Removal
The platform is raised and the part is removed.
-
Washing
Residual resin is cleaned off with solvent.
-
UV Curing
The part is UV-cured in the PCU unit.
