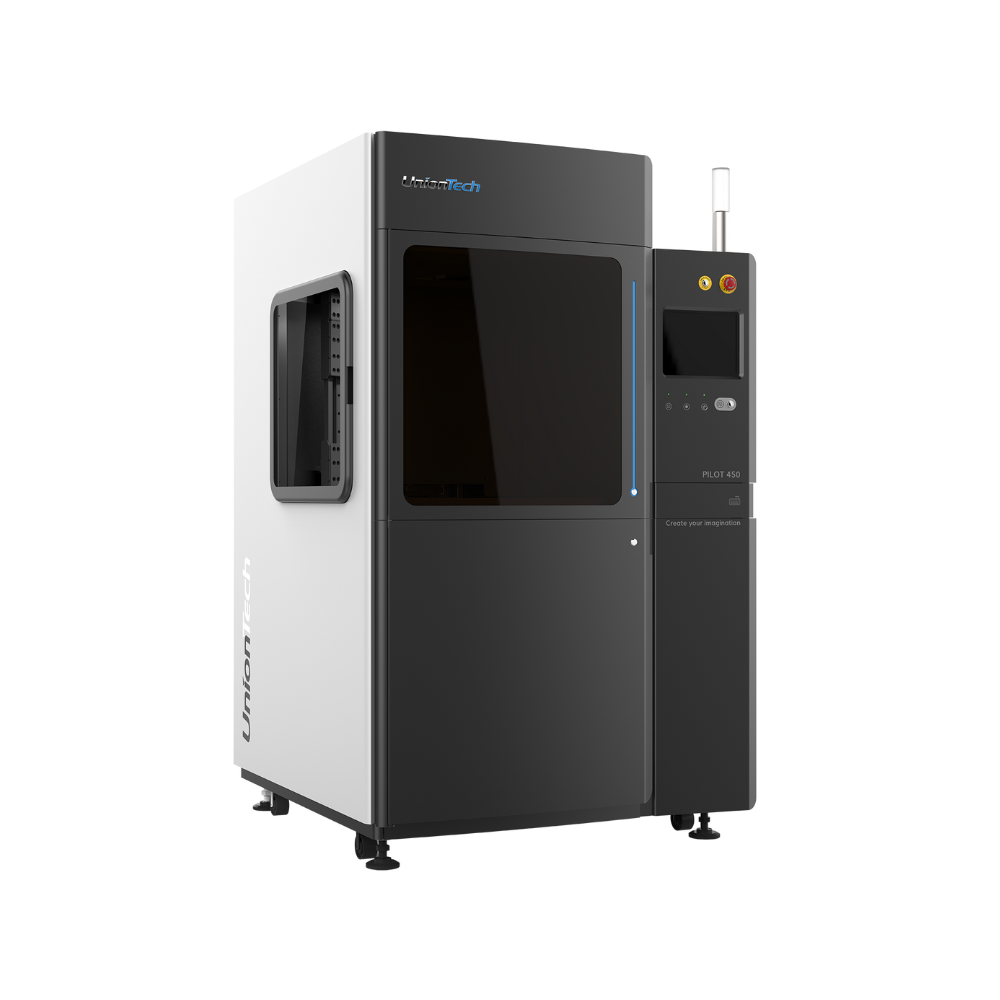

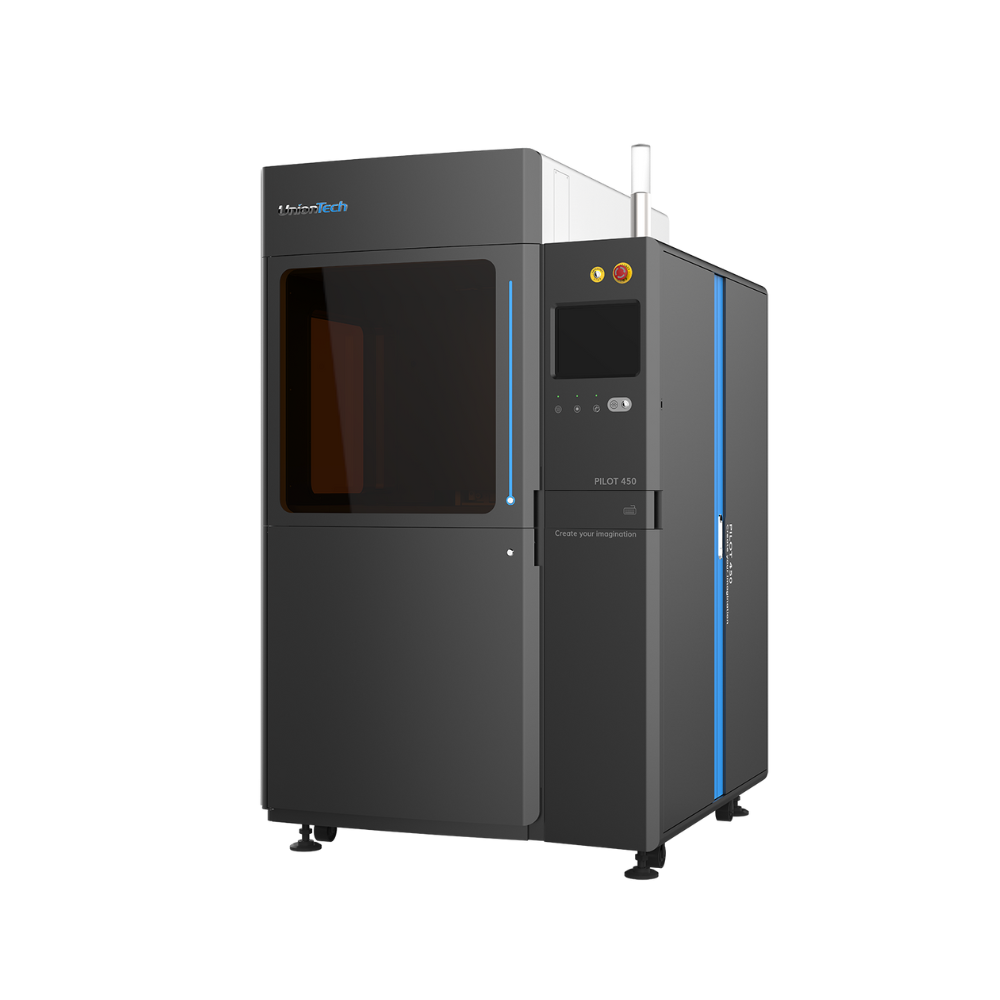

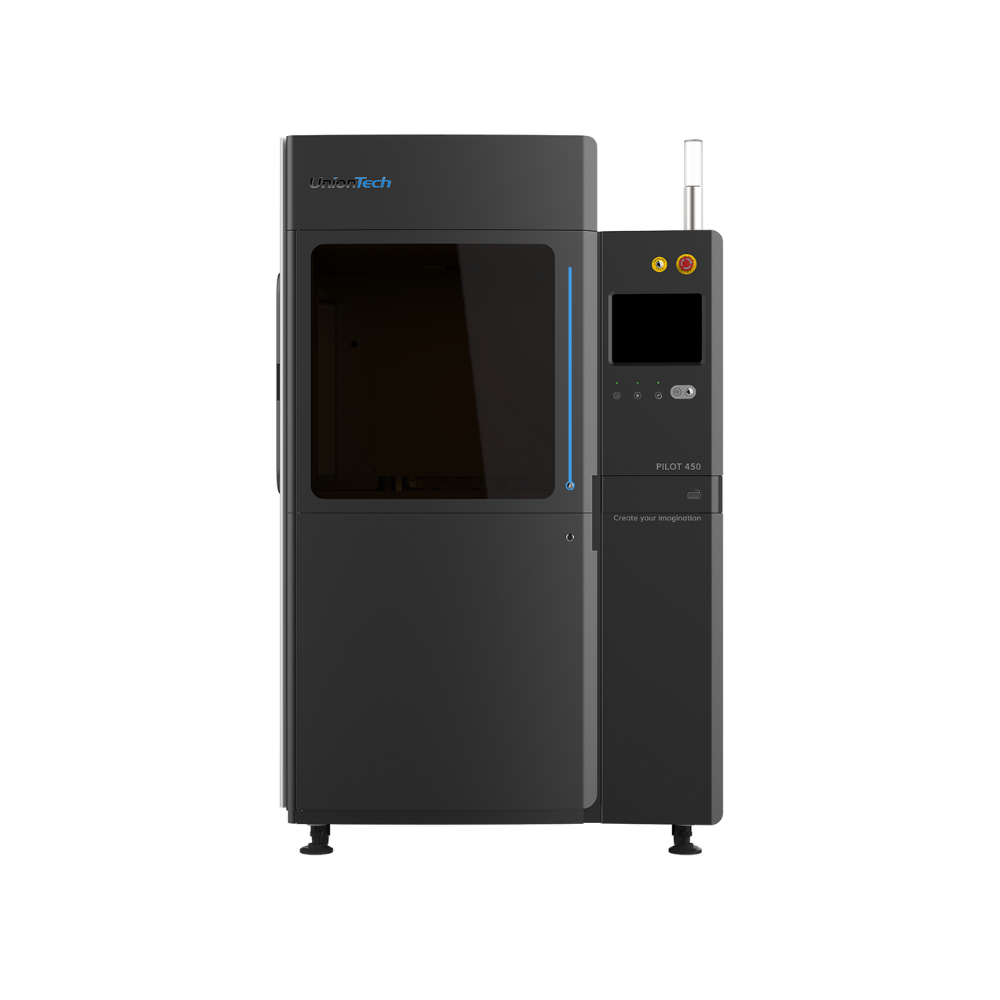

Pilot450
Industry-Leading Resin Printing
Pilot450 features automated surface level control and precision, making it ideal for demanding applications that require high accuracy. This industrial SLA printer enables the production of parts with surface roughness comparable to injection-molded components.
Browse UnionTech 3D printers.
The products below are optional but included in the quote for successful operation.
Equipment: PCU-60 Curing Unit, RRT-60 Resin Tank
Technical Specifications
Download DatasheetSLA (Stereolithography)
450 × 450 × 400 mm
Size < 100 mm: ±0.1 mm
Size ≥ 100 mm: ±0.1% × Size
0.05–0.25 mm
Solid-State Frequency-Tripled Nd:YVO4
355 nm
0.08–0.12 mm
6–10 m/s
UnionTech™ RSCON
Interchangeable
STL
Ethernet, IEEE 802.3, TCP/IP
200–240 VAC, 50/60 Hz, Single Phase
3.0 kVA
22–26 °C
< 40% (Non-Condensing)
1,331 × 1,370 × 2,163 mm
945 kg
CE
UTR 3100NE, UTR 6180-90R, UTR 8080, UTR 8100, UTR 9000, UTR 9000E, Anima 405G, Crysta 8Q, Crysta EB, FIX C4, Pure BLK, Temp R220, Therm 1, TUF 127, TUF 182, Xtyre 005, Xtyre 009
The system is an open platform; besides the listed materials, it is also compatible with third-party materials that the machine specifications support. Parameters must be developed separately.
An Open Platform with Low Cost of Ownership
With an open material platform, a granite-clad frame and internationally branded core components, the Pilot450 offers a low cost of ownership over its entire life cycle.
Open Material Platform
Freedom to choose among 355 nm resins keeps material costs under control.
Granite-Clad Frame
High rigidity and thermal stability deliver repeatable accuracy.
Internationally Branded Components
Laser, galvanometer and control components from global suppliers ensure a long service life.
Mid-Size Build Volume
The 450 × 450 × 400 mm volume is ideal for mid-size parts and nesting multiple small parts.
Interchangeable Resin Tank
Switching between different resins is quick.
RSCON Control Software
Process parameters and the job queue are managed from a single interface.
Assembly Fixture and Jig
An inspection fixture made in black resin positions the metal part precisely; with fast production and low cost, it replaces conventionally machined fixtures.
System Workflow
-
Data Preparation
Supports and slicing are prepared in Polydevs Pro.
-
Resin Preparation
The resin tank is filled and heated.
-
3D Printing
The laser cures the resin layer by layer.
-
Part Removal
The platform is raised and the part is removed.
-
Washing
Residual resin is cleaned off with solvent.
-
UV Curing
The part is UV-cured in the PCU unit.
