RSPro1800
Industrial-Grade Large Parts

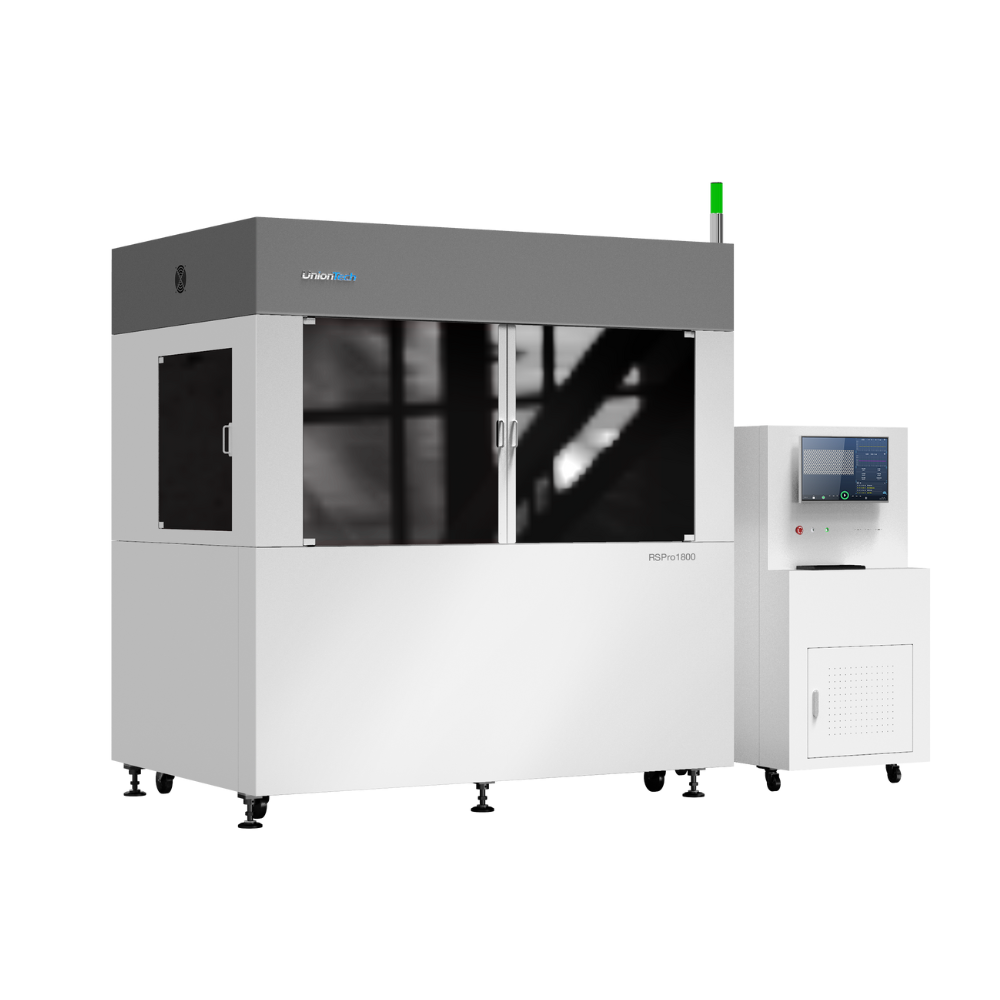

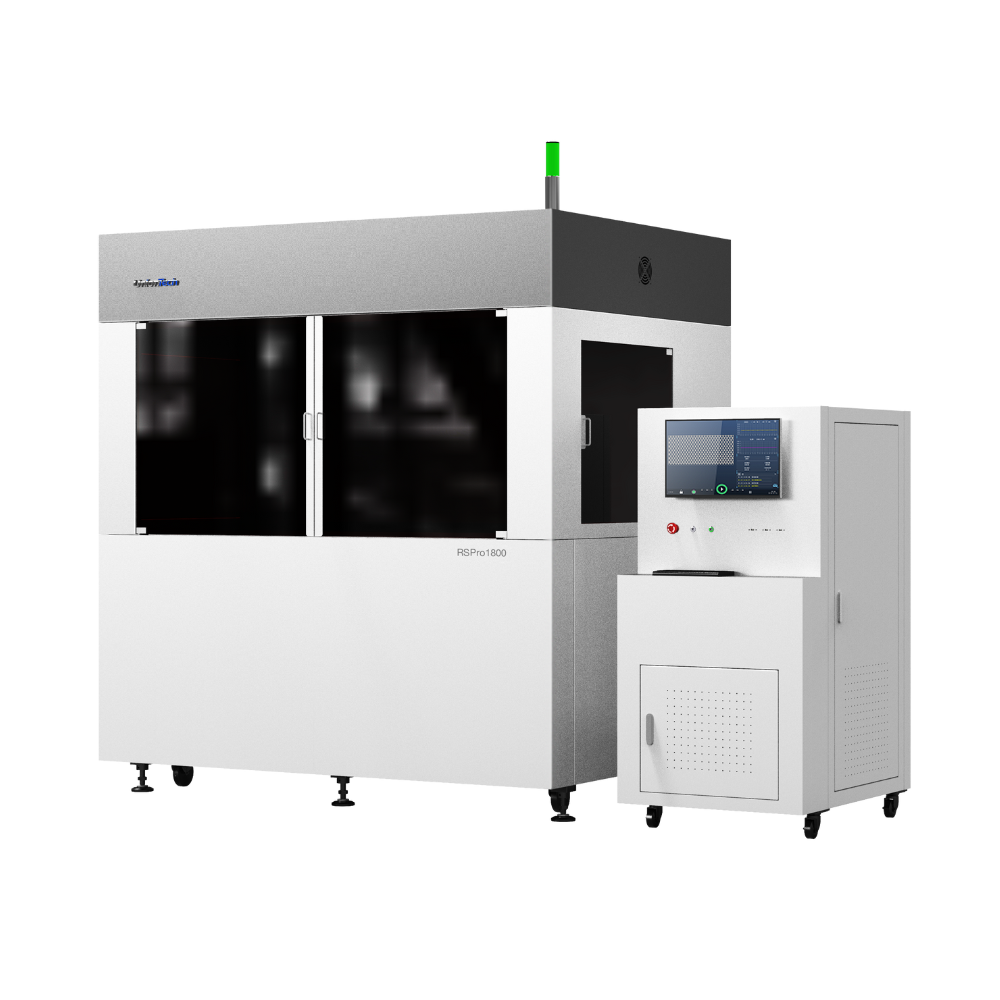

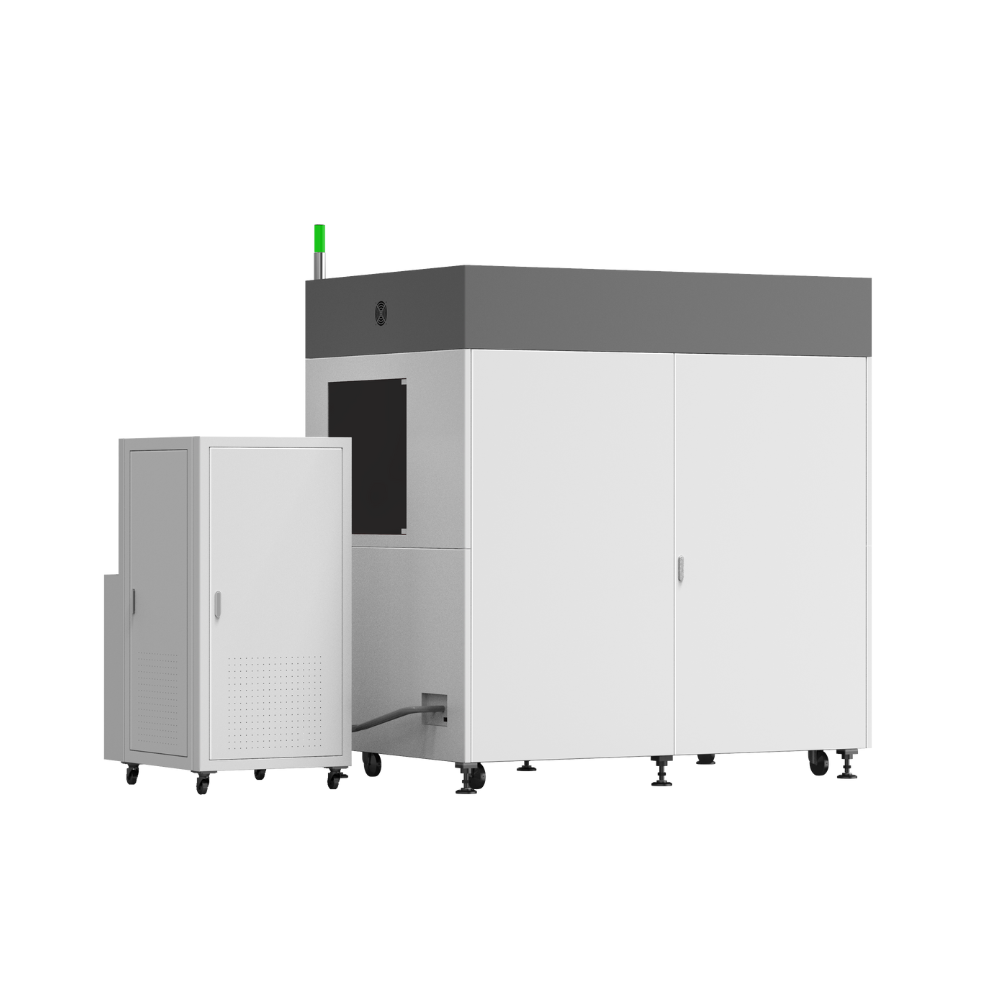

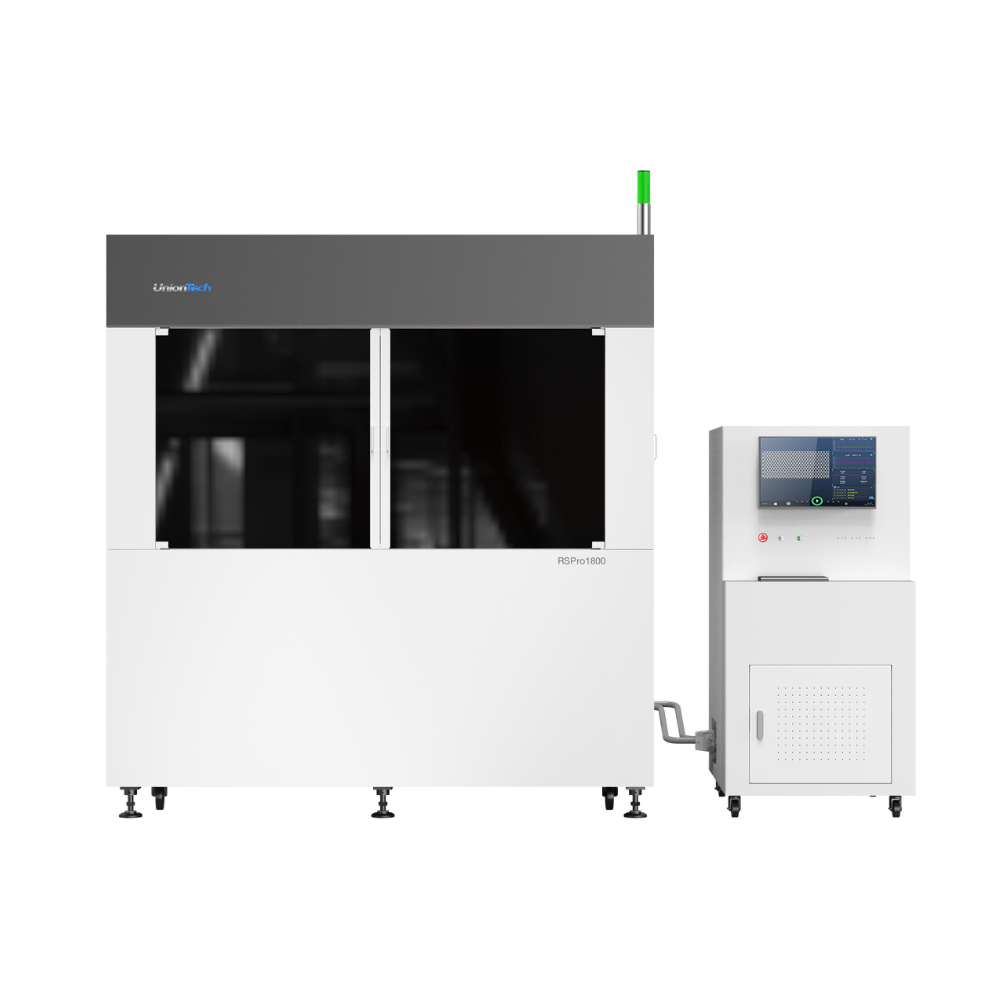

RSPro1800 is an industrial SLA 3D printer featuring 2 lasers and high-speed scanning, enabling the production of large and complex prototypes up to 2 meters in size. Its large build plate also allows for the high-volume production of smaller parts without the need for tooling.
Browse UnionTech 3D printers.
The products below are optional but included in the quote for successful operation.
Equipment: PCU-210 Curing Unit, RRT-210 Resin Tank
Technical Specifications
Download DatasheetSLA (Stereolithography)
1,800 × 900 × 600 mm
Size < 100 mm: ±0.2 mm
Size ≥ 100 mm: ±0.2% × Size
0.1–0.25 mm
2 Lasers, Solid-State Frequency-Tripled Nd:YVO4
355 nm
8–15 m/s
UnionTech™ RSCON
Polydevs Pro, BPC
Windows 10
Closed Loop
Fixed
200–240 VAC, 50/60 Hz
4.7 kVA
22–26 °C
< 40%
2,357 × 1,622 × 2,323 mm
2,080 kg
CE / UKCA
UTR 3100NE, UTR 6180-90R, UTR 8080, UTR 8100, UTR 9000, UTR 9000E, Anima 405G, Crysta 8Q, Crysta EB, FIX C4, Pure BLK, Temp R220, Therm 1, TUF 127, TUF 182, Xtyre 005, Xtyre 009
The system is an open platform; besides the listed materials, it is also compatible with third-party materials that the machine specifications support. Parameters must be developed separately.
Large Prototypes 1.8 Meters in Length
With 2 lasers and high-speed scanning, the RSPro1800 offers a spacious, efficient production experience for large prototypes and small-batch parts up to 1.8 m long and 0.9 m wide.
Large Build Volume
The 1,800 × 900 × 600 mm volume builds engine blocks and large air conditioner parts in one piece.
2 Lasers
2 lasers share the large area, shortening build time.
High Scanning Speed
A scanning speed of 8–15 m/s delivers efficiency on large layer areas.
Closed-Loop System Control
Laser, level and temperature are monitored and corrected in a closed loop.
Open Resin Platform
Works with all 355 nm photopolymer resins.
CE / UKCA Certification
Complies with European and United Kingdom safety standards.
3D printed with RSPro1800.
1.8-Meter One-Piece Bumper Prototype
Dashboard Carrier Prototype
System Workflow
-
Data Preparation
Supports and slicing are prepared in Polydevs Pro.
-
Resin Preparation
The resin tank is filled and heated.
-
3D Printing
The laser cures the resin layer by layer.
-
Part Removal
The platform is raised and the part is removed.
-
Washing
Residual resin is cleaned off with solvent.
-
UV Curing
The part is UV-cured in the PCU unit.
