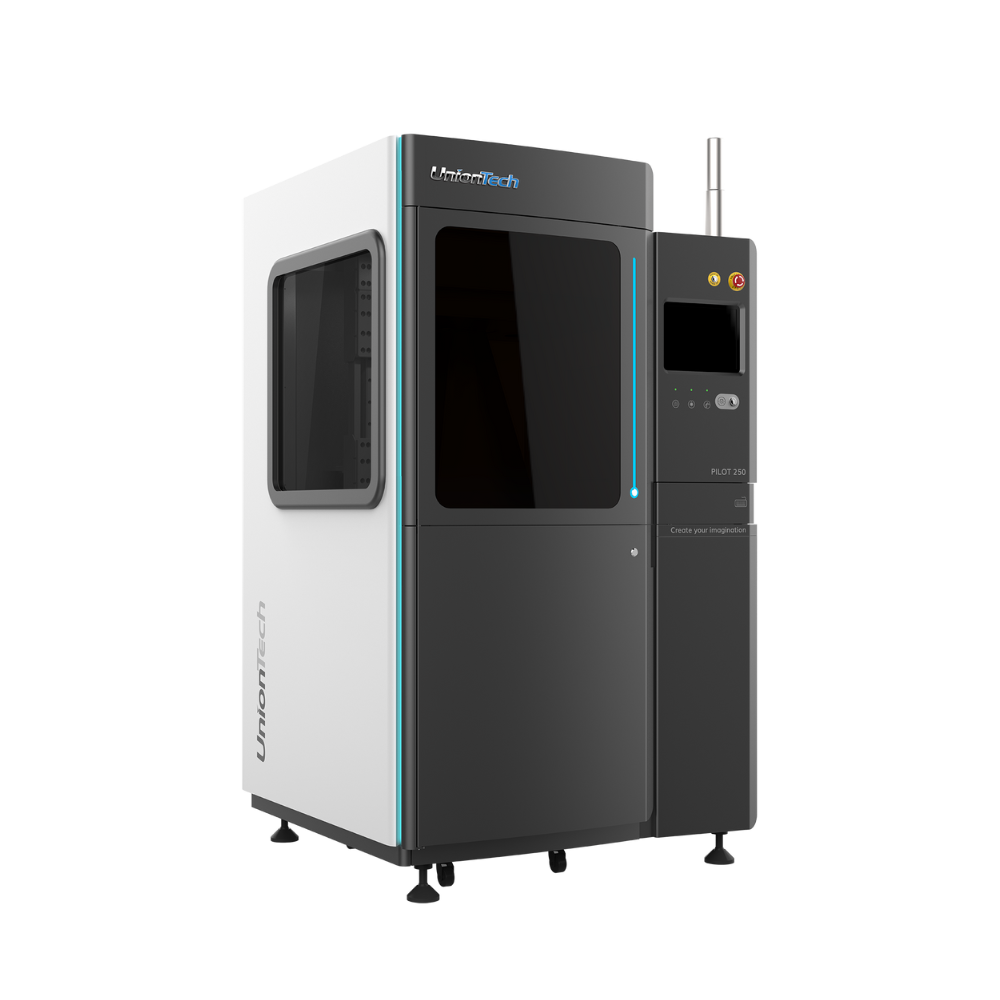

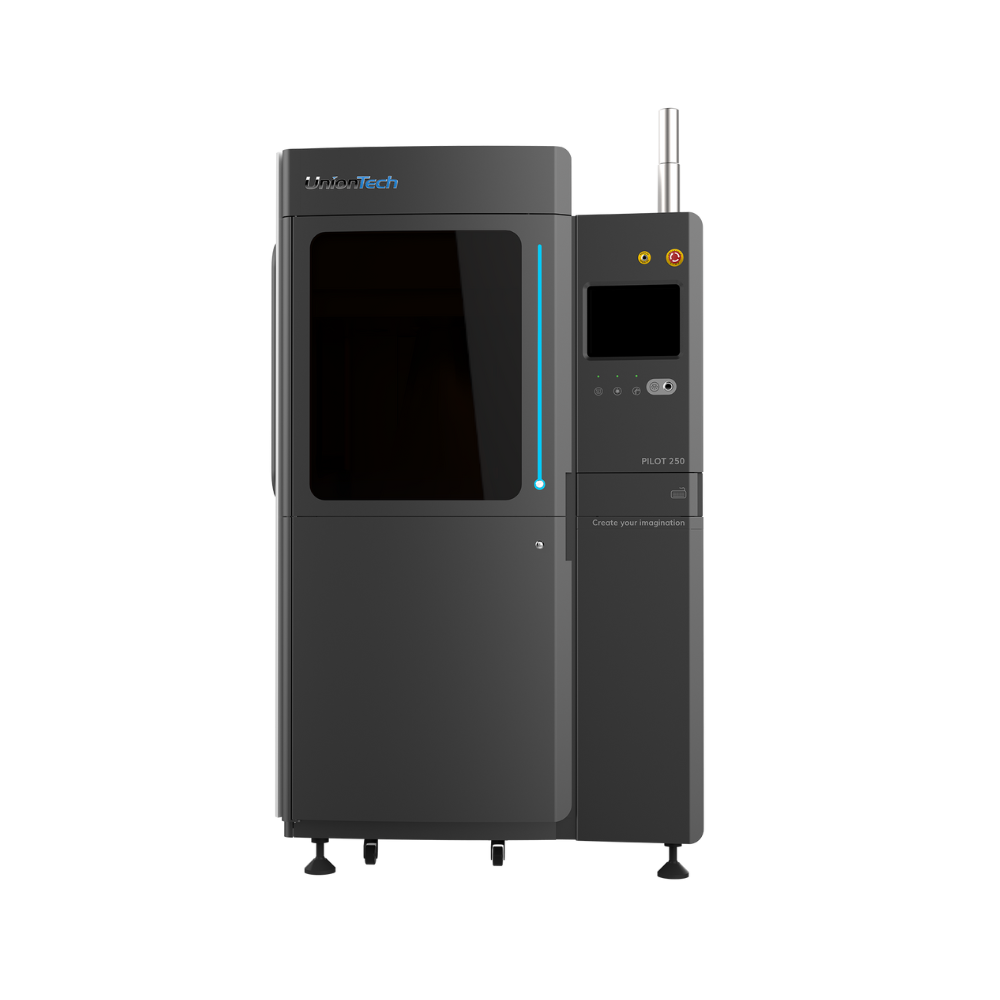

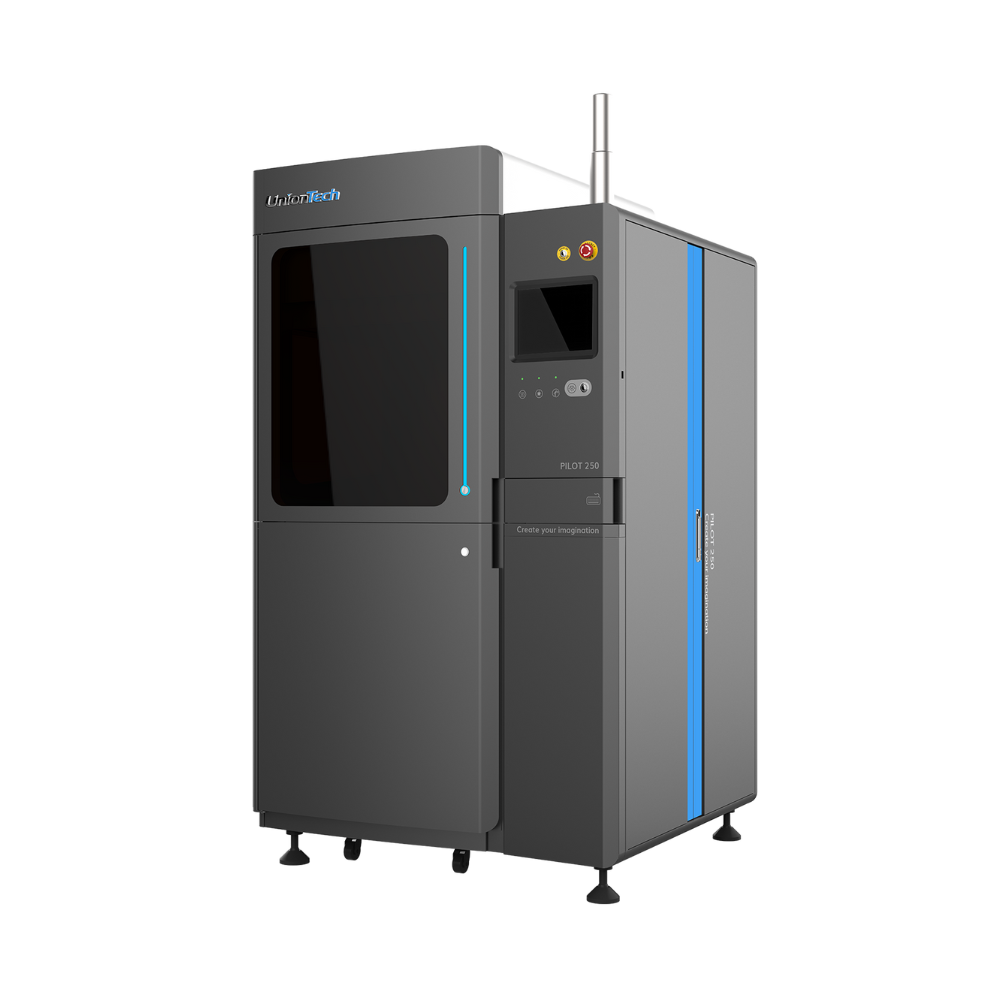

Pilot250
High-Accuracy Resin 3D Printing
Pilot250 is a cost-effective industrial SLA 3D printer with a compact design. It produces high-quality prints with minimal post-processing requirements and features automated control for surface levels and parameters. The system offers ±0.025 mm tolerances for parts up to 25.4 mm in size.
Browse UnionTech 3D printers.
The products below are optional but included in the quote for successful operation.
Equipment: PCU-60 Curing Unit, RRT-60 Resin Tank
Technical Specifications
Download DatasheetSLA (Stereolithography)
250 × 250 × 250 mm
Size < 25.4 mm: ±0.025 mm
Size ≥ 25.4 mm: ±0.1% × Size
0.05–0.25 mm
Solid-State Frequency-Tripled Nd:YVO4
355 nm
0.12–0.2 mm
6–10 m/s
UnionTech™ RSCON
Interchangeable
STL
Ethernet, IEEE 802.3, TCP/IP
200–240 VAC, 50/60 Hz, Single Phase
2.4 kVA
22–26 °C
< 40% (Non-Condensing)
1,105 × 1,060 × 1,977 mm
726 kg
CE
UTR 3100NE, UTR 6180-90R, UTR 8080, UTR 8100, UTR 9000, UTR 9000E, Anima 405G, Crysta 8Q, Crysta EB, FIX C4, Pure BLK, Temp R220, Therm 1, TUF 127, TUF 182, Xtyre 005, Xtyre 009
The system is an open platform; besides the listed materials, it is also compatible with third-party materials that the machine specifications support. Parameters must be developed separately.
±0.025 Millimeter Accuracy for Fine Detail
With an open material platform, a granite-clad frame and a 0.12 mm laser spot, the Pilot250 delivers laboratory-grade precision on small, finely detailed parts.
High Accuracy
Accuracy of ±0.025 mm on dimensions below 25.4 mm preserves micro details.

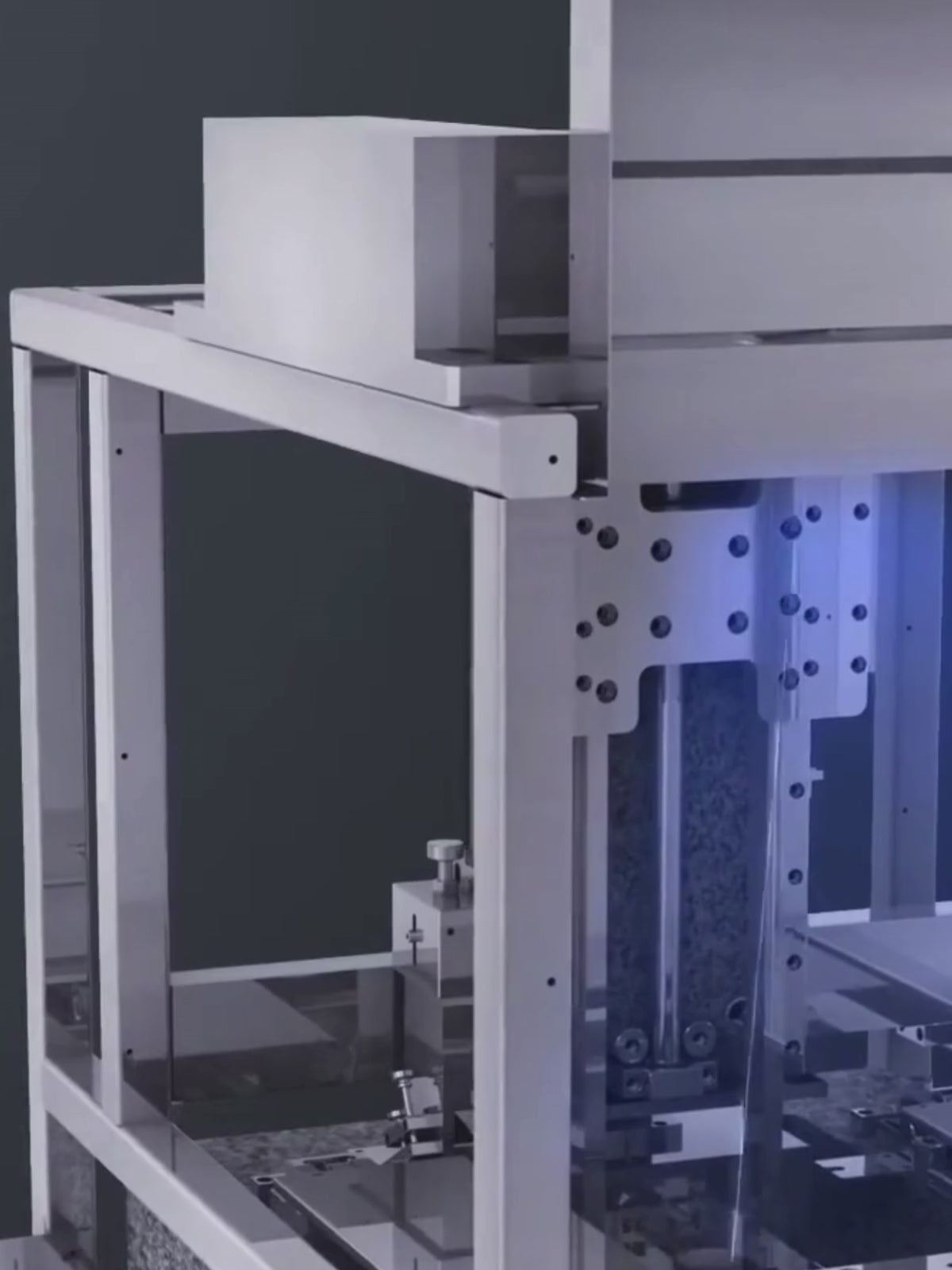

Granite-Clad Frame
Thermal stability and vibration damping ensure long-term precision.
Open Material Platform
Works with UnionTech and third-party 355 nm resins, offering freedom of material choice.
Fine Beam Diameter
A small 0.12–0.2 mm laser spot makes sharp edges and thin walls possible.
Interchangeable Resin Tank
Material changes take minutes and cross-contamination is prevented.
Compact Installation
A 1,105 × 1,060 mm footprint suits laboratory and office environments.
Functional Enclosure in Clear Resin
An electrical enclosure made in Crysta series clear resin; internal channels and assembly details read clearly thanks to the 0.12 mm beam diameter.
System Workflow
-
Data Preparation
Supports and slicing are prepared in Polydevs Pro.
-
Resin Preparation
The resin tank is filled and heated.
-
3D Printing
The laser cures the resin layer by layer.
-
Part Removal
The platform is raised and the part is removed.
-
Washing
Residual resin is cleaned off with solvent.
-
UV Curing
The part is UV-cured in the PCU unit.
