UTR 3100NE
Versatile Prototyping Resin
UTR 3100NE is a white SLA resin offering balanced strength, toughness, and temperature resistance. With fast print speed and excellent surface quality, it’s ideal for industrial prototypes, appliances, and display models.
SLA (Stereolithography)Photopolymer Resins
Technical Specifications
Download DatasheetOpaque White Liquid
285 Cps (30 °C)
1.11 g/cm³ (25 °C)
7.59 mJ/cm²
0.156 mm
38.6 mJ/cm²
49 MPa (ASTM D638)
2,972 MPa (ASTM D638)
7.5% (ASTM D638)
70 MPa (ASTM D790)
2,929 MPa (ASTM D790)
29 J/m (ASTM D256)
83 (ASTM D2240)
48.0 °C (ASTM D648)
46.1 °C (ASTM D648)
Lite600, Lite600 2.0, Lite800, Pilot250, Pilot450, RSPro600 2.0, RSPro800 2.0, RSPro800 X, RSPro1400, RSPro1800, RSPro2100
It can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.
Key Features and Applications
Key Features
- Offers a white color with fine layer lines.
- Shows low warpage and deformation.
- Combines strength and toughness.
Applications

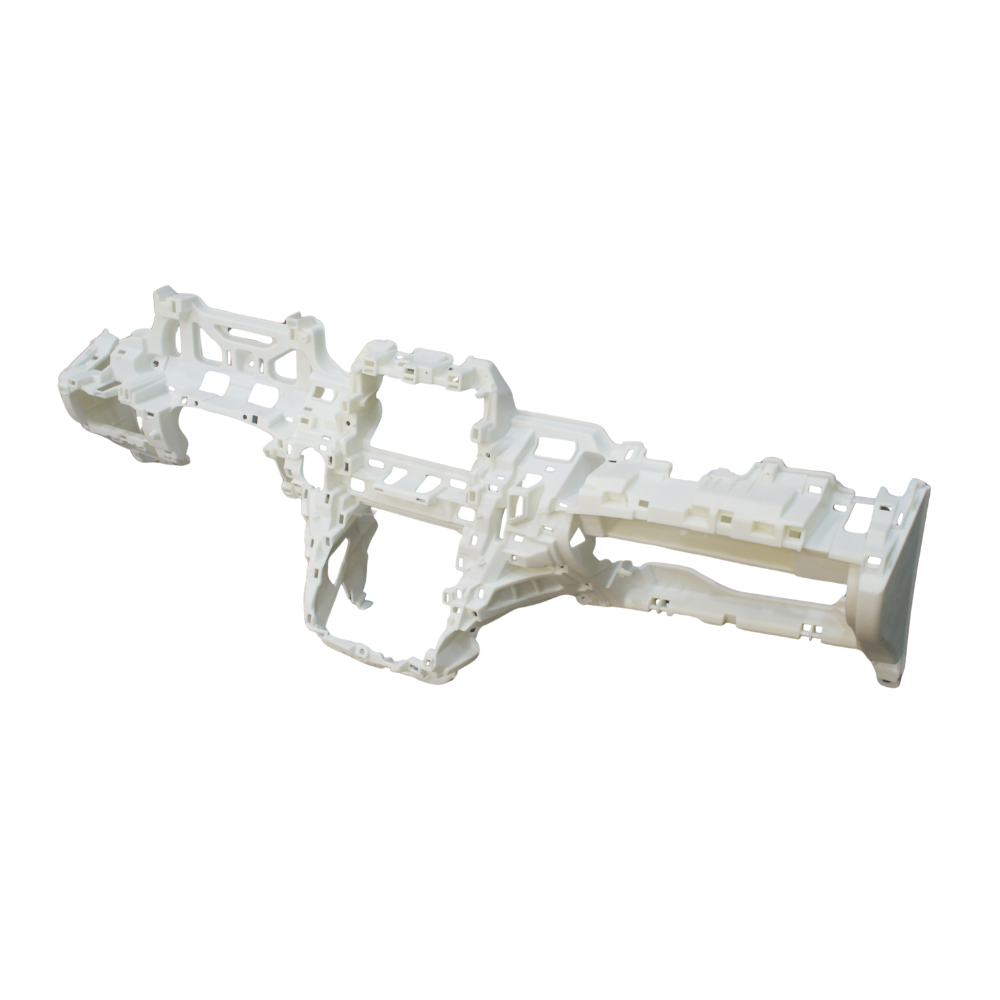

- Ideal for industrial prototypes, white goods and automotive parts.
- Film and TV props and exhibition models.
