Therm 1
Thermal-Resistant Parts
Therm 1 is a transparent red liquid resin with a tensile strength of 42.7 MPa and a flexural strength of 96.6 MPa. It offers a high heat deflection temperature (HDT) of 101.9 °C at 0.455 MPa, making it ideal for high-precision and heat-resistant applications.
Technical Specifications
Download DatasheetTransparent Red Liquid
~268 Cps (30 °C)
~1.10 g/cm³ (25 °C)
6.5 mJ/cm²
0.11 mm
68.8 mJ/cm²
42.7 MPa (ASTM D638)
3,235 MPa (ASTM D638)
1.5% (ASTM D638)
96.6 MPa (ASTM D790)
3,165 MPa (ASTM D790)
83 (ASTM D2240)
101.9 °C (ASTM D648)
85.5 °C (ASTM D648)
Lite600, Lite600 2.0, Lite800, Pilot250, Pilot450, RSPro600 2.0, RSPro800 2.0, RSPro800 X, RSPro1400, RSPro1800, RSPro2100
It can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.
Key Features and Applications
Key Features
- UV and thermal curing deliver an HDT above 100 °C.
- Offers high tensile and flexural modulus.
- The transparent red look suits flow visualization.
Applications
- Ideal for functional prototypes exposed to heat.

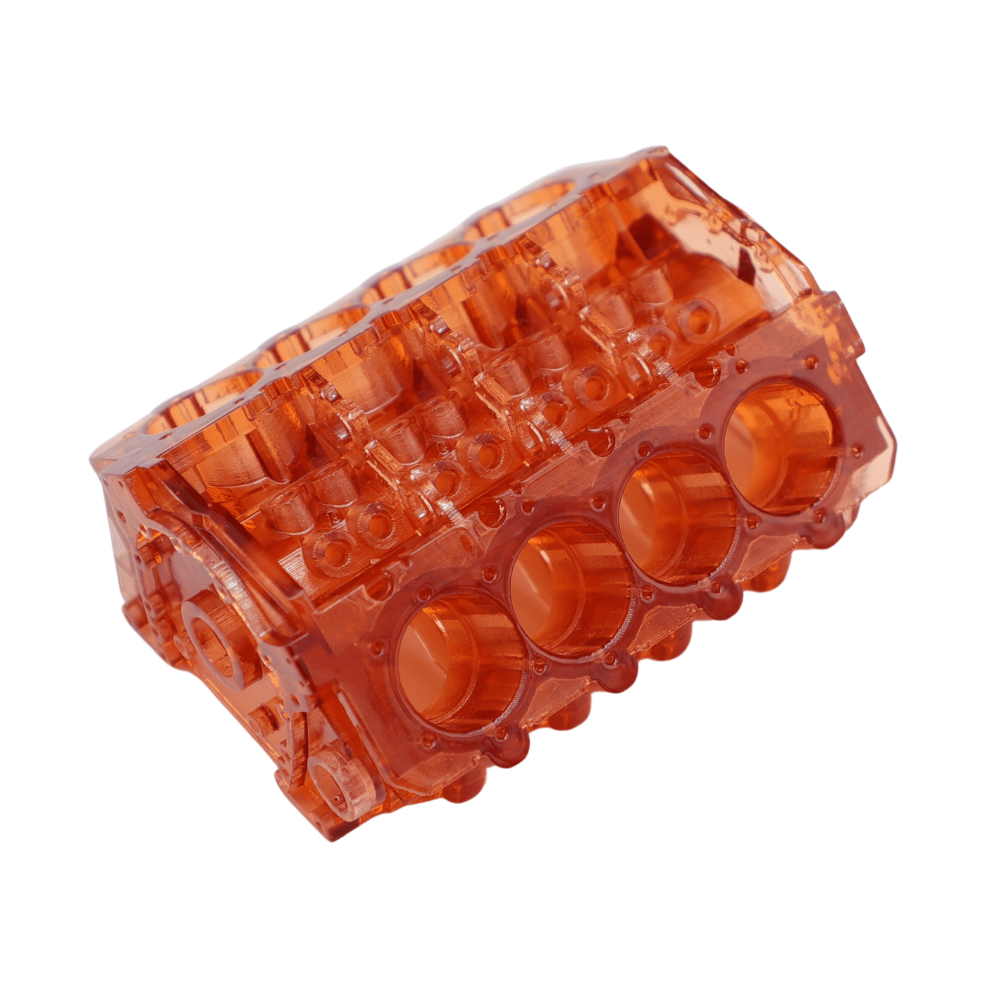

- Engine-bay and fluid test parts.
