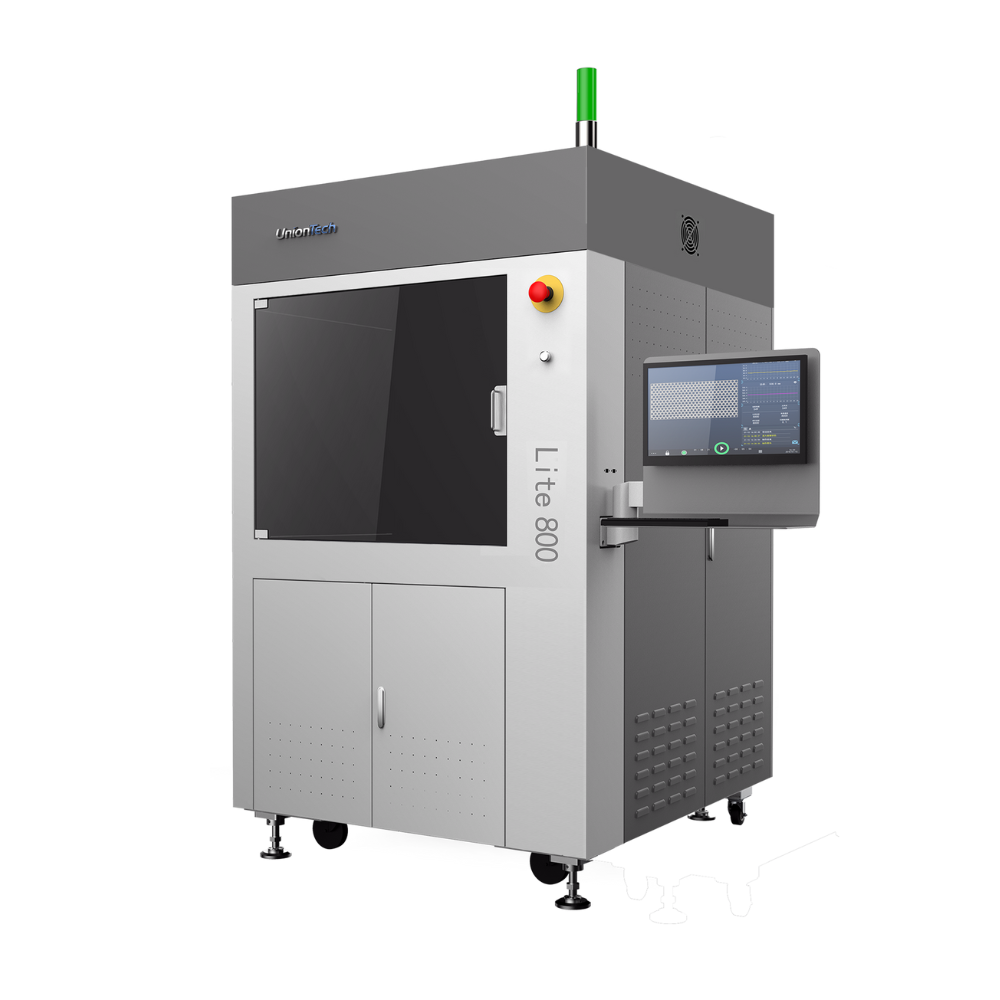

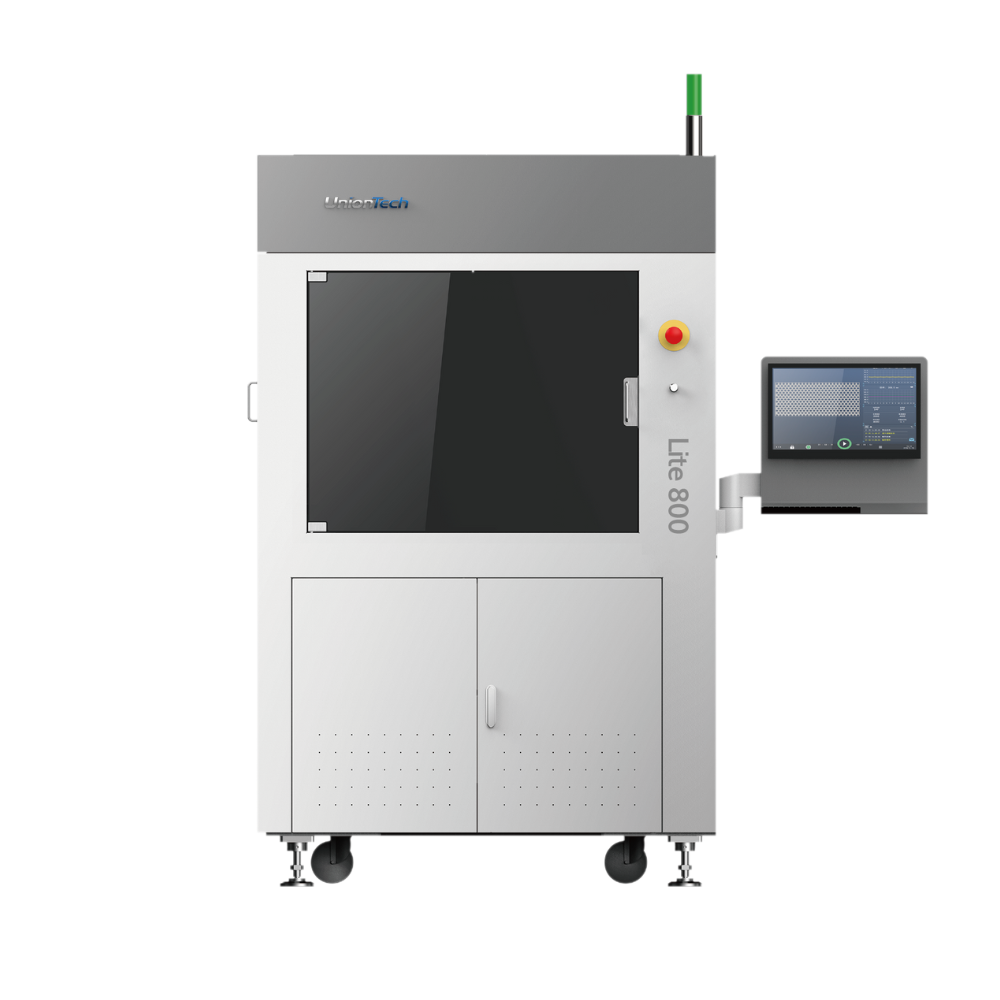

Lite800
Large-Format Resin Printing

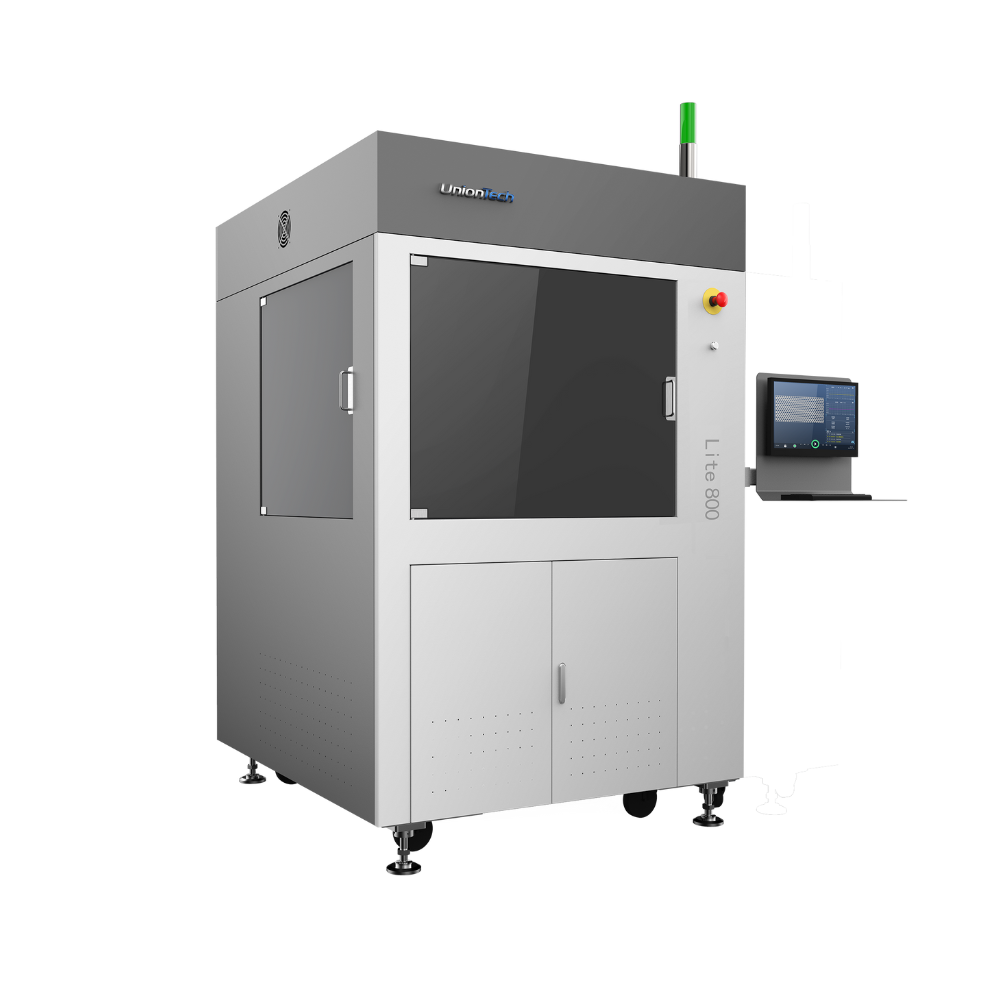

Lite800 is a cost-effective, large-format industrial SLA 3D printer. It delivers high efficiency, precision, and stability, featuring a variable spot size and a split design that allows it to efficiently manage both batch production of small parts and low-volume production of large parts.
Browse UnionTech 3D printers.
The products below are optional but included in the quote for successful operation.
Equipment: PCU-80 Curing Unit, RRT-80 Resin Tank
Technical Specifications
Download DatasheetSLA (Stereolithography)
800 × 800 × 550 mm
Size < 100 mm: ±0.15 mm
Size ≥ 100 mm: ±0.15% × Size
0.07–0.25 mm
Solid-State Frequency-Tripled Nd:YVO4
355 nm
0.12–0.8 mm
8–15 m/s
UnionTech™ RSCON
Fixed
STL
Ethernet, IEEE 802.3, TCP/IP
200–240 VAC, 50/60 Hz
2.8 kVA
22–26 °C
< 40%
1,555 × 1,445 × 2,215 mm
1,050 kg
CE

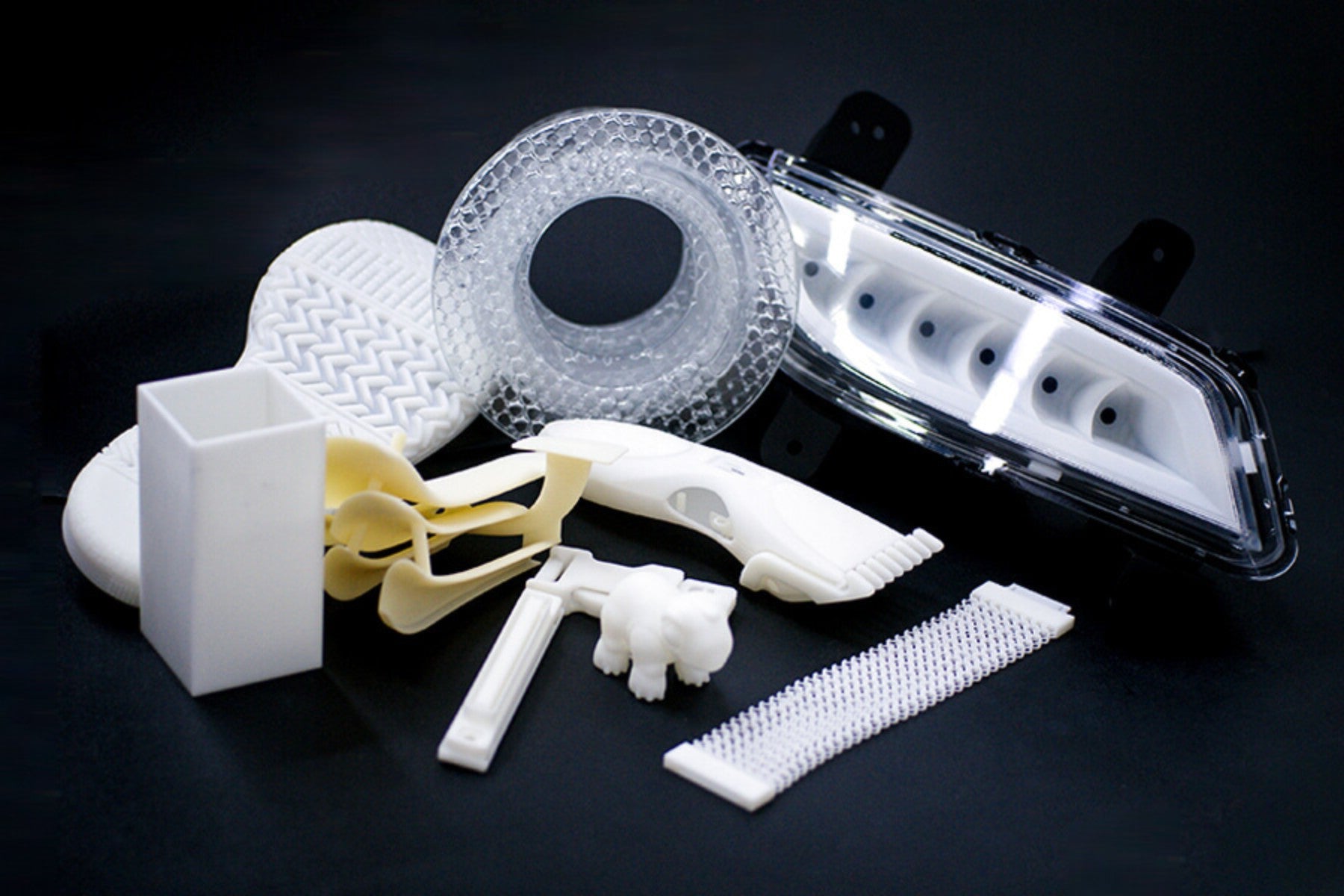

UTR 3100NE, UTR 6180-90R, UTR 8080, UTR 8100, UTR 9000, UTR 9000E, Anima 405G, Crysta 8Q, Crysta EB, FIX C4, Pure BLK, Temp R220, Therm 1, TUF 127, TUF 182, Xtyre 005, Xtyre 009
The system is an open platform; besides the listed materials, it is also compatible with third-party materials that the machine specifications support. Parameters must be developed separately.
800-Millimeter Build Volume for Large Parts
With an 800 × 800 × 550 mm build volume and a high-speed scanning laser, the Lite800 builds large parts in one go and produces small batches efficiently.
Large Build Volume

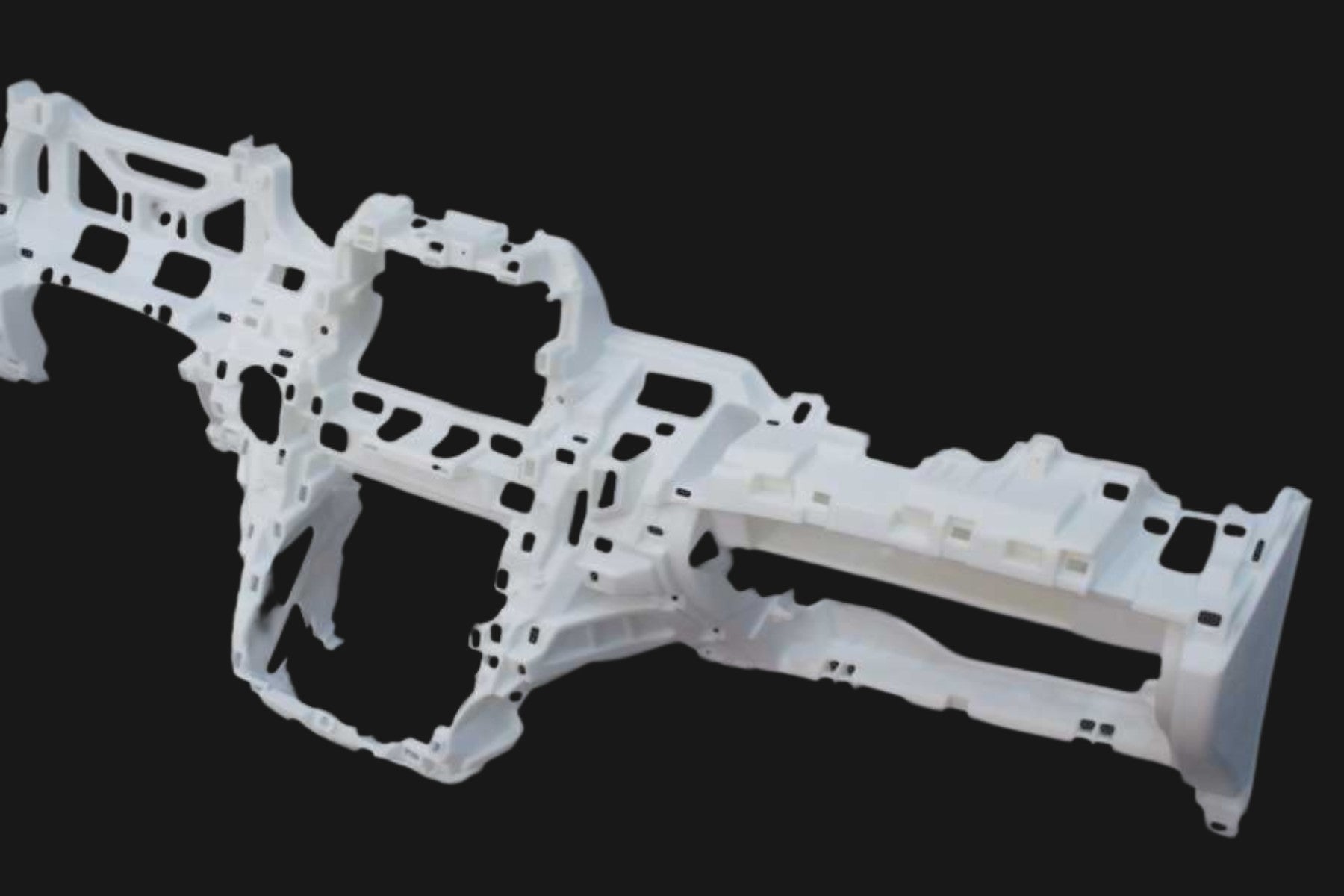

The 800 × 800 × 550 mm volume lets large parts such as automotive door panels be built in one piece without splitting.
High-Speed Scanning Laser
A scanning speed of 8–15 m/s shortens build time on large layer areas.
High Dimensional Accuracy
Accuracy of ±0.15 mm is maintained even at large format.
Solid-State Nd:YVO4 Laser
The 355 nm frequency-tripled laser provides long life and stable power.
Fixed Resin Tank
A large fixed tank enables uninterrupted serial production.
RSCON Control Software
Remote job loading and process monitoring reduce dependence on the operator.

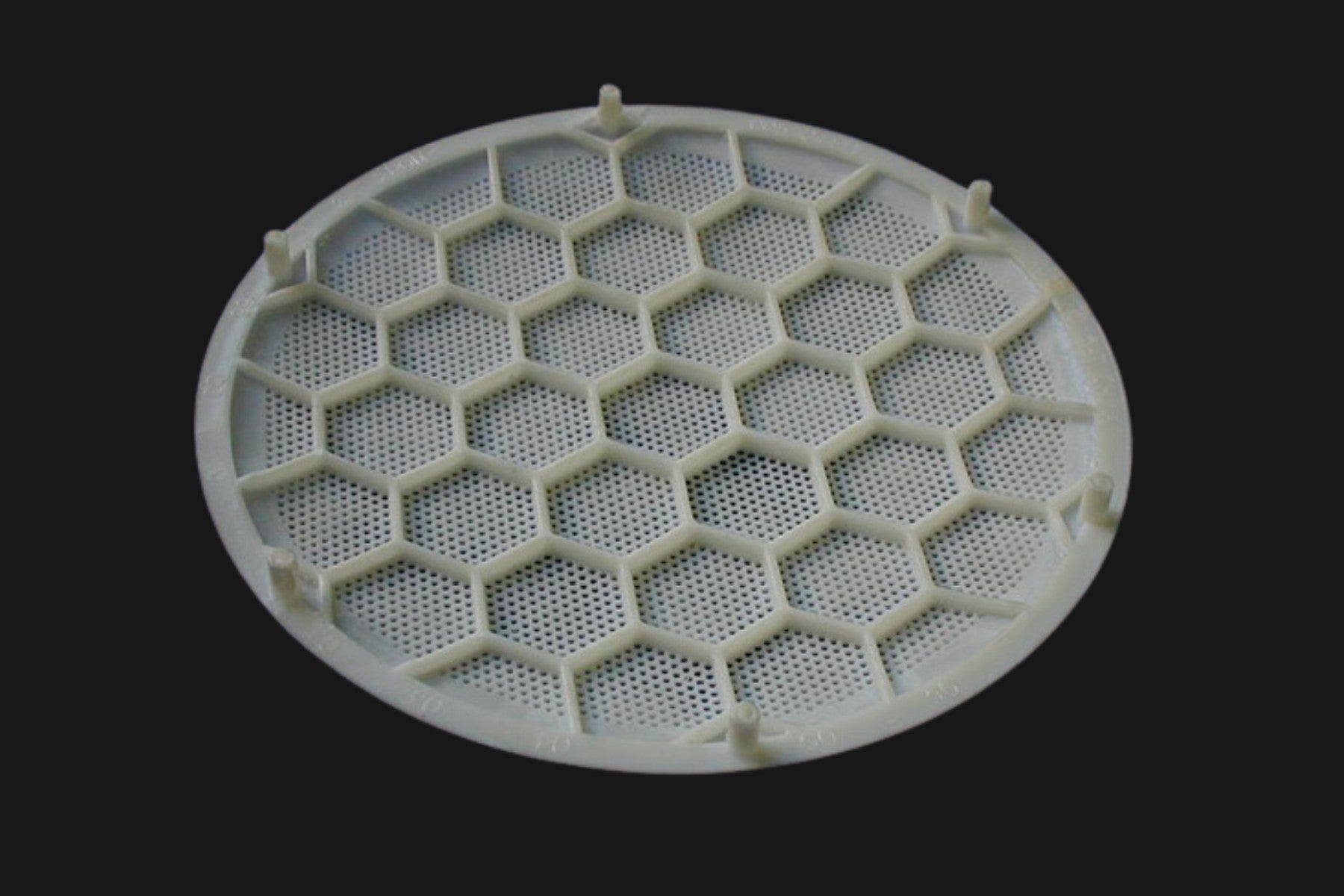

Washing Machine Panel Prototype
A large honeycomb filter panel is built in one piece; the fine hole array and sharp edges are preserved in high detail on the 800 mm platform.
System Workflow
-
Data Preparation
Supports and slicing are prepared in Polydevs Pro.
-
Resin Preparation
The resin tank is filled and heated.
-
3D Printing
The laser cures the resin layer by layer.
-
Part Removal
The platform is raised and the part is removed.
-
Washing
Residual resin is cleaned off with solvent.
-
UV Curing
The part is UV-cured in the PCU unit.
