Xtyre 005
SLA Resin for Tire Mold Patterns
Xtyre 005 is a precision 3D printing resin for SLA, ideal for tire mold pattern production. Produce parts with low surface roughness and high dimensional accuracy. This resin allows for molding complex shapes, enhancing design flexibility, and reducing production time.
SLA (Stereolithography)Tire Mold Resins
Technical Specifications
Download DatasheetOpaque Brown Liquid
392 Cps (30 °C)
1.1 g/cm³ (25 °C)
3.26 mJ/cm²
0.06 mm
213.9 mJ/cm²
41 MPa (ASTM D638)
1,962 MPa (ASTM D638)
15% (ASTM D638)
65 MPa (ASTM D790)
1,964 MPa (ASTM D790)
29.6 J/m (ASTM D256)
83 (ASTM D2240)
47.3 °C (ASTM D648)
43.8 °C (ASTM D648)
RA600, RA900
It can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.
Key Features and Applications
Key Features
- Provides a smooth surface and fine molding.
- Offers good heat resistance and toughness.
- Prints stably with low deformation.
Applications

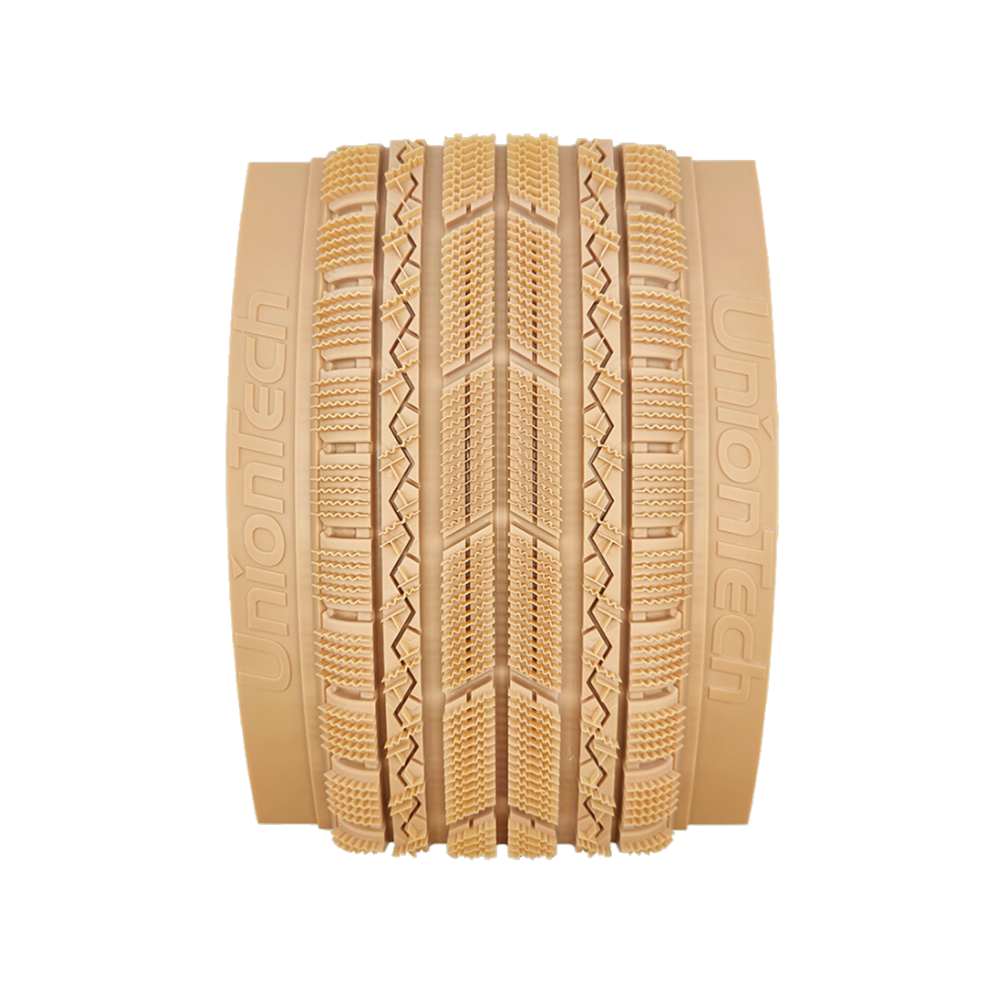

- Ideal for tire mold production.
- Complex mold geometries that are hard to produce by hand or with CNC.
