UTR 8080
High-Stability Black Resin
UTR 8080 is a pure black SLA resin balancing robustness and heat resistance. It ensures dimensional stability, smooth surfaces, and environmental durability, ideal for small-batch production and functional prototypes.
SLA (Stereolithography)Photopolymer Resins
Technical Specifications
Download DatasheetBlack
500–580 Cps (25 °C)
1.13–1.2 g/cm³
6.35 mJ/cm²
4 Mil
0.1 mm
40–50 MPa (ASTM D638)
10–25% (ASTM D638)
60–70 MPa (ASTM D790)
2,200–2,600 MPa (ASTM D790)
10–20 J/m (ASTM D256)
80–82 (ASTM D2240)
54–58 °C (DMA)
10–30 °C
Lite600, Lite600 2.0, Lite800, Pilot250, Pilot450, RSPro600 2.0, RSPro800 2.0, RSPro800 X, RSPro1400, RSPro1800, RSPro2100
It can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.
Key Features and Applications
Key Features
- Delivers a pure black color and an excellent surface.
- Shows toughness, heat resistance and environmental durability.
- High dimensional stability; easy to clean and finish.
Applications

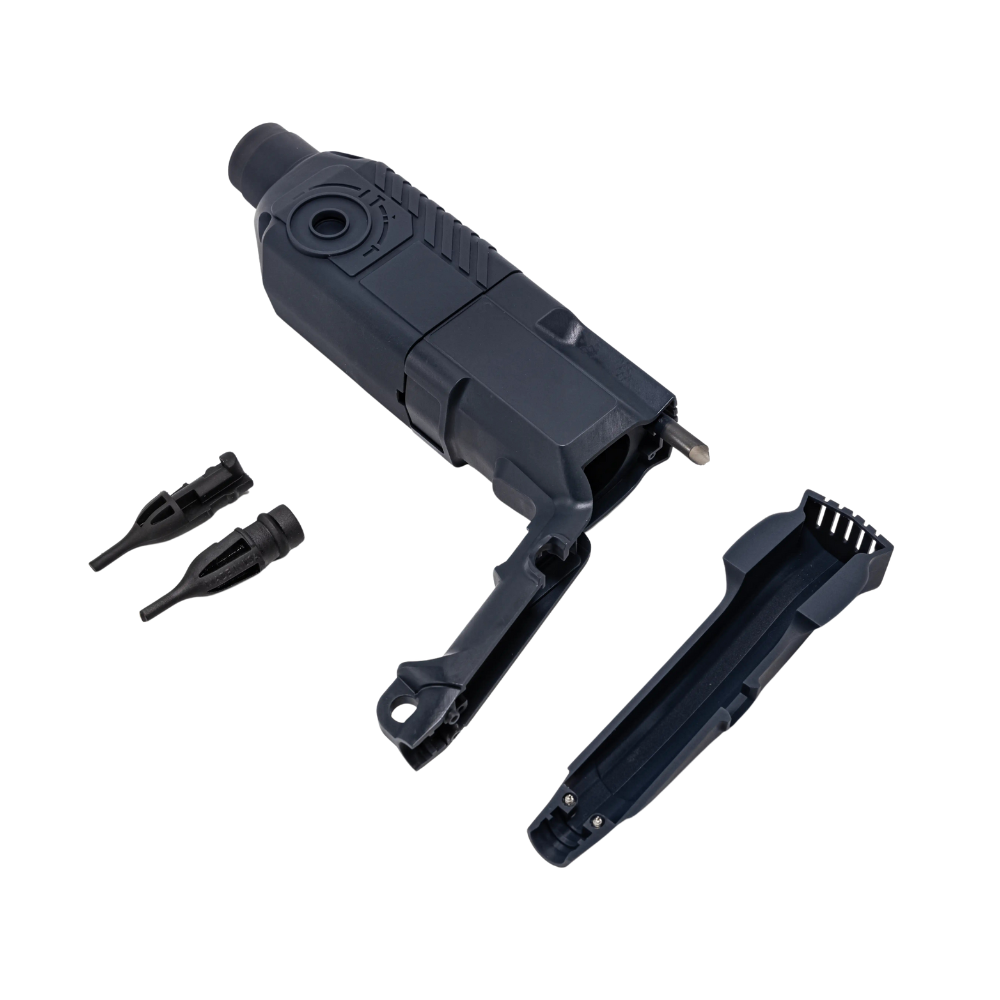

- Ideal for functional prototypes in automotive, aerospace and household electrical appliances.
- Small-batch custom production.
