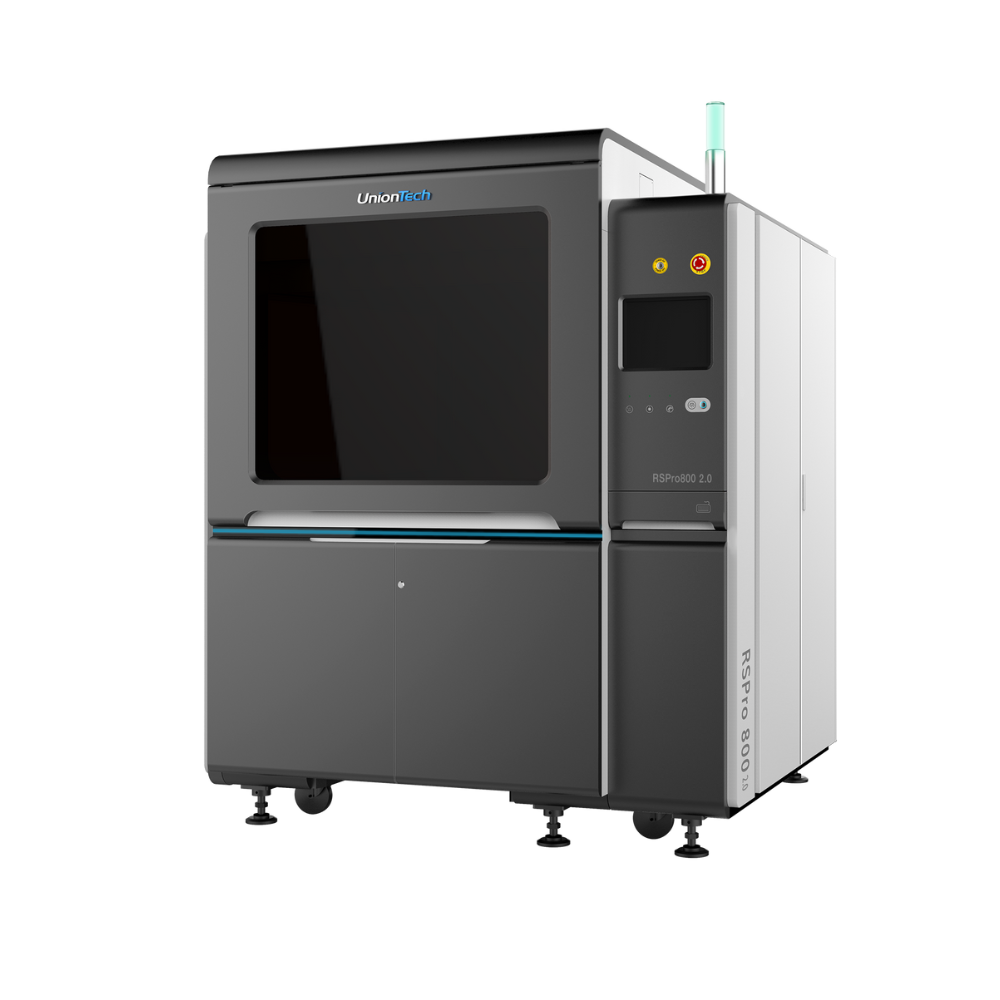

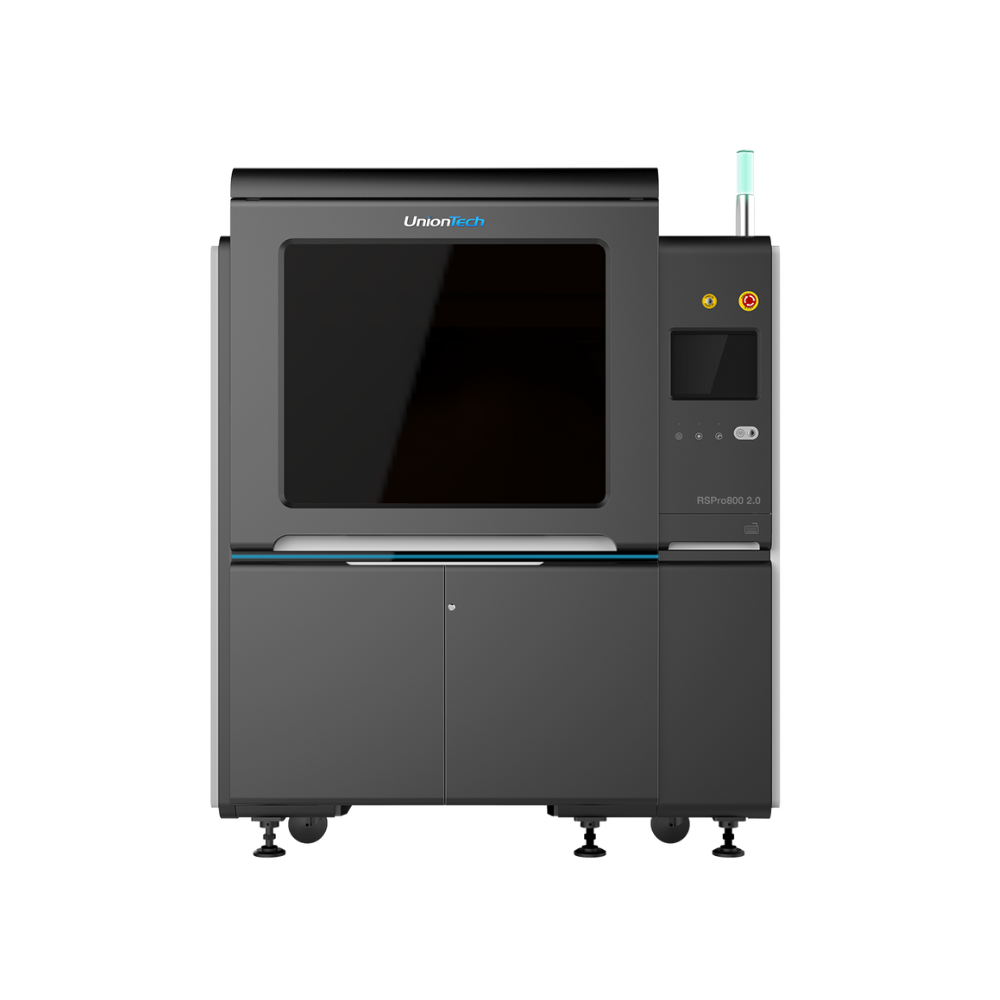

RSPro800 2.0
High-Precision and Versatility
Achieve consistent and dimensionally accurate prints every time. RSPro 800 2.0 features a variable spot and split design, offering a comprehensive solution for both large-format integral and small-format large-batch printing.
Complementary Equipment and Accessories
Based on your request, the solution package includes the following:
Resin Washing Station, Ultrasonic Cleaner, UV Curing Machine
Plastic (Photopolymer Resins)
SLA (Stereolithography)
Technical Specifications
Create parts with high precision and surface quality. RSPro 800 2.0 is suitable for a wide range of sizes and production volumes, from small to large batches.
Download BrochureTechnology
The UnionTech Lite series uses industrial SLA (Stereolithography) technology. Industrial SLA differs from desktop SLA in that it uses a top-down method of 3D printing, as opposed to the bottom-up method. Additionally, it utilizes a larger build volume and operates with a 355 nm laser wavelength.
Printable Build Volume
800.00 × 800.00 × 550.00 mm
Dimensional Accuracy
±0.15 mm under 100.00 mm
(for part dimensions ≥100.00 mm: ±0.15% x dimension)
Layer Thickness
0.07-0.25 mm
Laser Wavelength
355 nm, Nd:YVO₄ Laser
Laser Beam Size
0.12-0.85 mm
Scanning Speed
6-12 m/s
Compatible Materials
Open-material platform allows the use of any 355 nm curable resin of your preference.
Common SLA Resins: Standard Resin, Clear Resin, Tough Resin (ABS-like), Durable Resin (PP-like), Heat-Resistant Resin, Rubber-like Resin, Ceramic-filled Resin (Rigid)
RSPro Series
RSPro Series: Accurate parts, outstanding surface quality, and lower cost per part.
The RSPro Series features stereolithography machines that provide precise and high-quality surface finish, ideal for low to medium volume runs, ensuring cost-effectiveness per unit.
UnionTech's open-source systems support a wide selection of engineering-grade SLA resins of your choice. The material range covers resins with thermoplastic-like properties, rubber-like flexibility, transparency, castability, heat resistance, and biocompatibility.
Polydevs software: A game-changer in 3D print preparation. It simplifies complex tasks, from STL mesh file repair to support structure creation, ensuring a fast, reliable, and intuitive user experience.
UnionTech's SLA 3D printers, leveraging vat photopolymerization technology, deliver parts with exceptional surface quality. Offering layer thicknesses as low as 0.07 mm and UV laser precision, the printers ensure intricate finishes and accuracy.
UnionTech's open-source systems support a wide selection of engineering-grade SLA resins of your choice. The material range covers resins with thermoplastic-like properties, rubber-like flexibility, transparency, castability, heat resistance, and biocompatibility.
Polydevs software: A game-changer in 3D print preparation. It simplifies complex tasks, from STL mesh file repair to support structure creation, ensuring a fast, reliable, and intuitive user experience.
UnionTech's SLA 3D printers, leveraging vat photopolymerization technology, deliver parts with exceptional surface quality. Offering layer thicknesses as low as 0.07 mm and UV laser precision, the printers ensure intricate finishes and accuracy.
What are the use cases of industrial SLA 3D printing?
Common Applications
UnionTech's SLA 3D printers, using advanced stereolithography, are transformative in industries from healthcare to aerospace. Layer-by-layer photopolymerization process enables the creation of intricate, high-precision 3D objects, revolutionizing design and manufacturing approaches.
01
Durable, Customized End-Use Parts
Discover toolless manufacturing. SLA 3D printing is suitable for durable end-use part production in demanding sectors, where high-temperature resistance and strength are non-negotiable for optimal functionality and reliability.
02
Investment Casting Patterns
SLA technology excels in investment casting patterns, producing complex molds with exceptional detail and surface finish, reducing manufacturing times from weeks to days.
03
High-Detail, Functional Prototypes
UnionTech's SLA printers achieve unmatched detail and precision in making functional prototypes, crucial for design validation and engineering tests, with accuracy of ±0.15 mm for fit and performance accuracy.
04
Transparent Parts
Capable of producing fully transparent components with post-processing, UnionTech's SLA printers are a prime choice for industries needing clear, precise parts. Applications range from lenses to LED housings and consumer products.
05
Large-Size Prototypes
UnionTech's SLA printers excel in large-scale printing, printers like the Lite800 and RSPro1400 enabling the creation of substantial parts such as single-piece automotive panels, showcasing versatility in size and precision.
06
Jigs and Fixtures
Create custom and ergonomic fixtures in days using UnionTech's SLA printers, including assembly jigs, go/no-go gauges, and welding fixtures. The technology provides rapid, precise customization, enhancing manufacturing workflows.
RSPro Series
Compare with similar 3D printers.
RSPro800 2.0 suits small to medium businesses, balancing precision and build size. RSPro1400, with its dual laser system, is adept at mass-producing large, accurate, high-quality parts. RSPro2100, UnionTech's largest SLA model, caters to large-format printing needs in automotive, aerospace, and home appliances industries.
Contact Us600.00 × 600.00 × 400.00 mm
800.00 × 800.00 × 550.00 mm
1,400.00 × 700.00 × 500.00 mm
±0.10 mm and above
±0.15 mm and above
±0.20 mm and above
0.05-0.25 mm
0.07-0.25 mm
0.10-0.25 mm
355 nm, Nd:YVO₄ Laser
355 nm, Nd:YVO₄ Laser
355 nm, Nd:YVO₄ Laser
0.12-0.20 mm
0.12-0.85 mm
0.12-0.85 mm
Creating Investment Casting Patterns with SLA 3D Printing
UnionTech's industrial SLA 3D printers revolutionize investment casting by delivering precise, complex patterns more efficiently than traditional methods. These advanced 3D printed patterns signifi...
