Get a quote for custom 3D-printed parts delivered in days. Upcores offers 1:1 consultancy for your projects to make sure each part meets your needs.
On-Demand 3D Printing
Services We Offer
From selecting the ideal materials to achieving the perfect print, we ensure your prototypes and parts are manufactured with precision and delivered seamlessly.
FDM (Fused Deposition Modeling)
FDM excels in cost-effectiveness and ease of use, making it ideal for rapid prototyping, large parts, and producing durable parts with high strength.
Tolerances: ±0.40 mm and up
Lead Times: 1-7 business days
Post-Processing Options: Support removal, sanding, polishing, priming, and painting

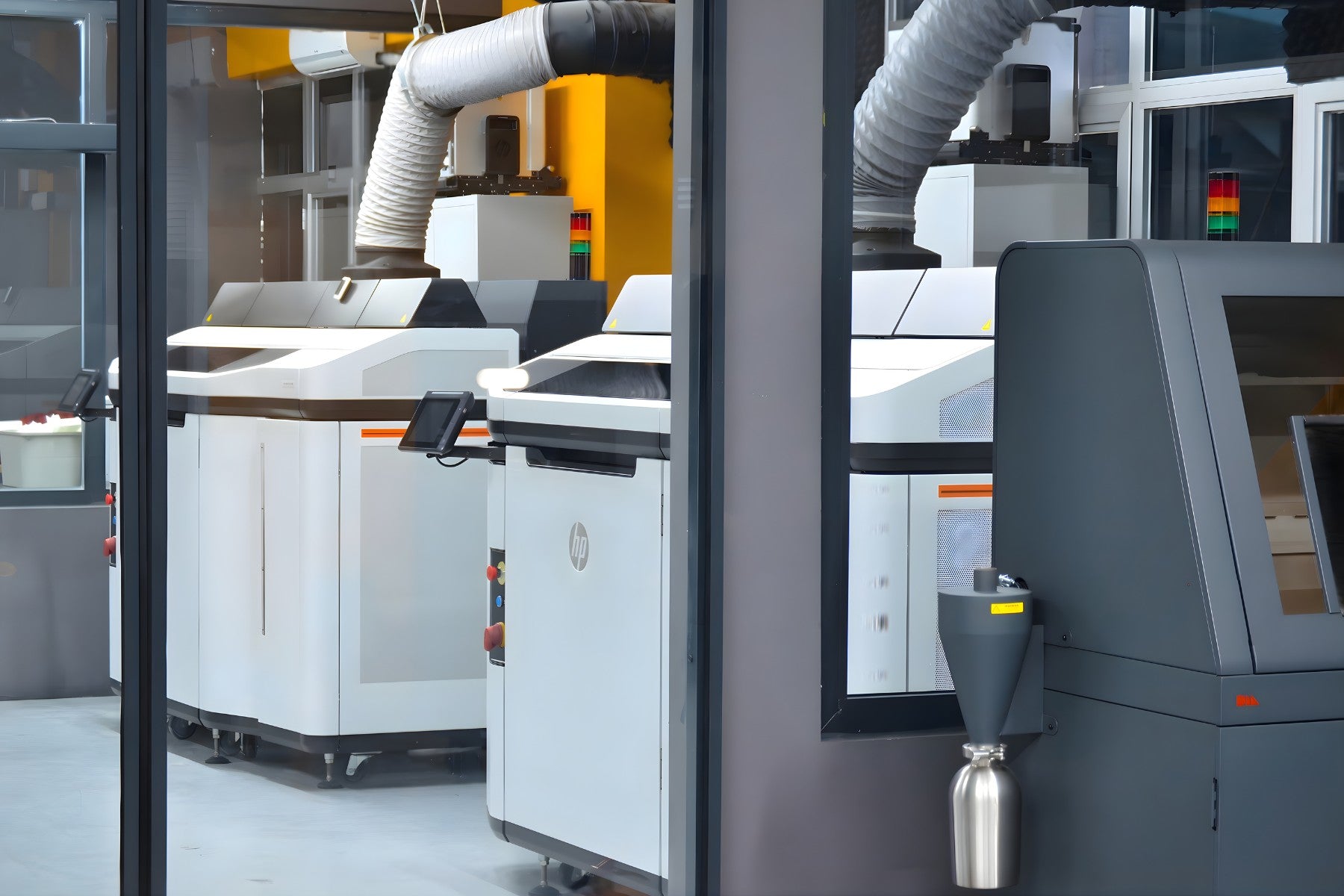

MJF (Multi Jet Fusion)
MJF stands out for its high-speed production and fine feature details, suited for manufacturing complex, high-quality functional parts and prototypes in a variety of industries.
Tolerances: ±0.30 mm and above
Lead Times: 1-7 business days
Post-Processing Options: Sanding, chemical vapor smoothing, polishing, tumbling, priming, and painting
SLS (Selective Laser Sintering)
SLS is known for its ability to produce strong, durable parts without the need for support structures, catering to applications in aerospace, automotive, and consumer goods.
Tolerances: ±0.25 mm and above
Lead Times: 1-7 business days
Post-Processing Options: Sanding, chemical vapor smoothing, polishing, tumbling, priming, and painting
SLA (Stereolithography)
SLA excels in producing high-resolution parts with smooth surface finishes, making it a preferred choice for detailed prototypes and isotropic parts.
Tolerances: ±0.15 mm and above
Lead Times: 1-7 business days
Post-Processing Options: Washing, curing, sanding, polishing, tumbling, priming, and painting
SLM (Selective Laser Melting)
SLM metal 3D printing is revered for its ability to fully melt metal powders, creating highly dense and strong parts suitable for critical applications in aerospace, medical, and automotive industries.
Tolerances: ±0.20 mm and up
Lead Times: 5-12 business days
Post-Processing Options: Heat treatment, polishing, electroplating, PVD coating

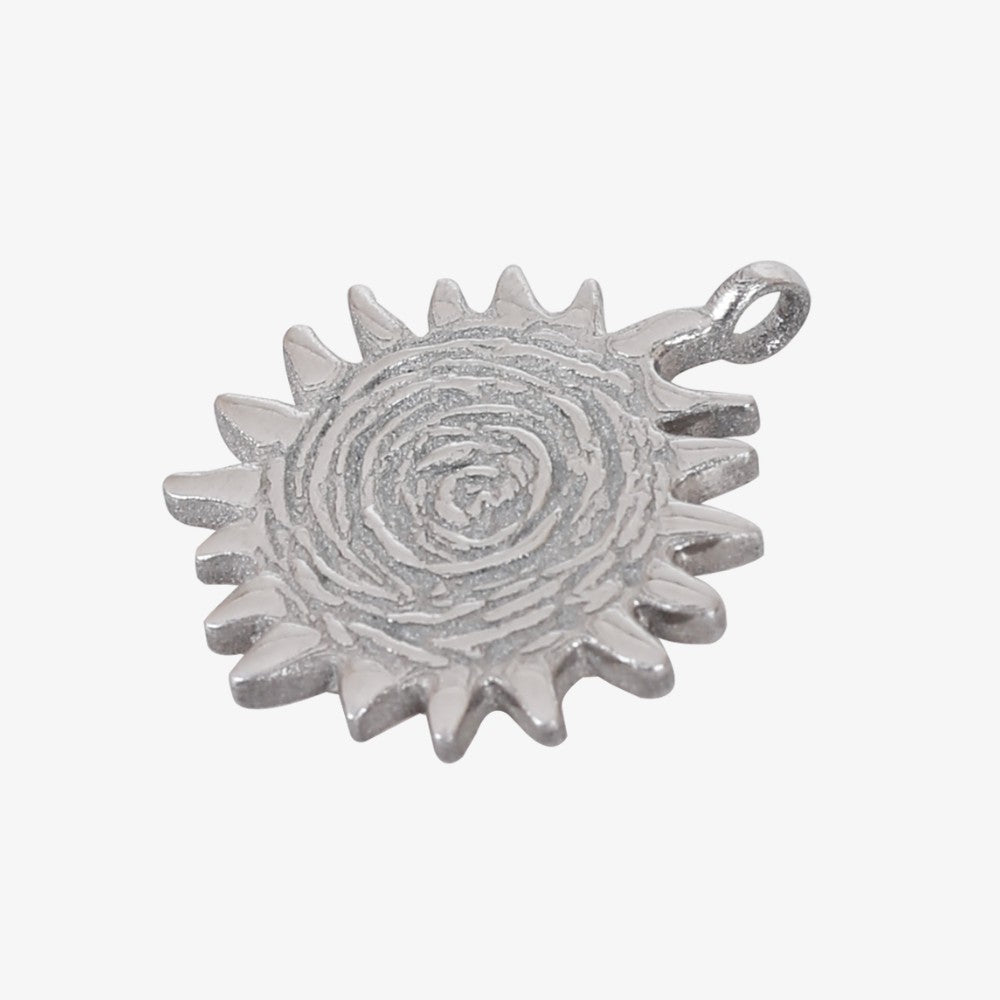

BJ (Binder Jetting)
Binder Jetting is adept at creating complex metal 3d-printed parts rapidly and cost-effectively, making it an excellent choice for metal casting applications, rapid tooling, and components where internal geometries and intricate details are required.
Tolerances: ±0.35 mm and up
Lead Times: 5-12 business days
Post-Processing Options: Heat treatment, polishing, electroplating, PVD coating
Custom Parts

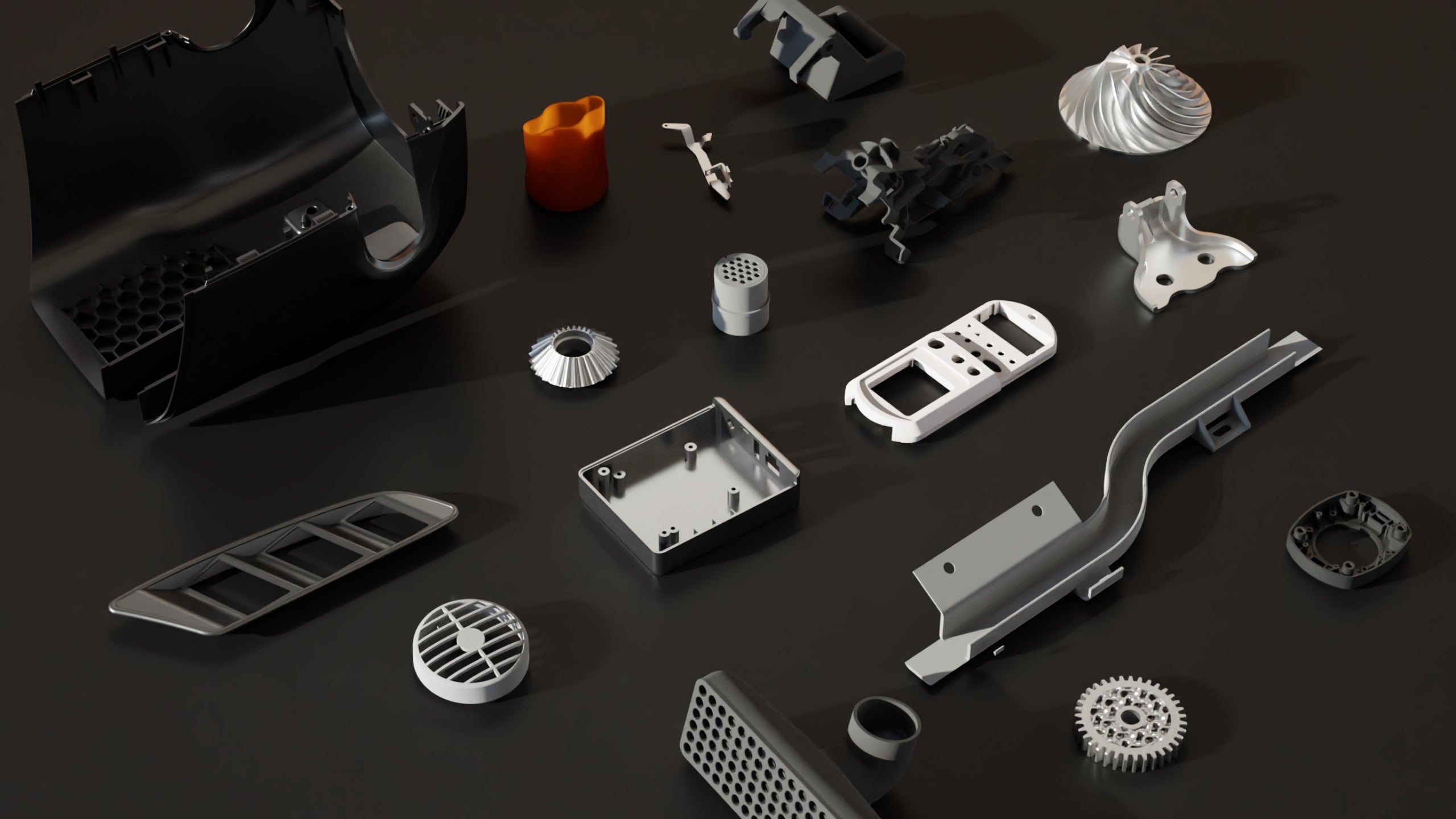

Explore sample parts to view the range of materials and technologies we provide.
We collaborate with you to design and create custom parts that meet your unique project requirements.
01

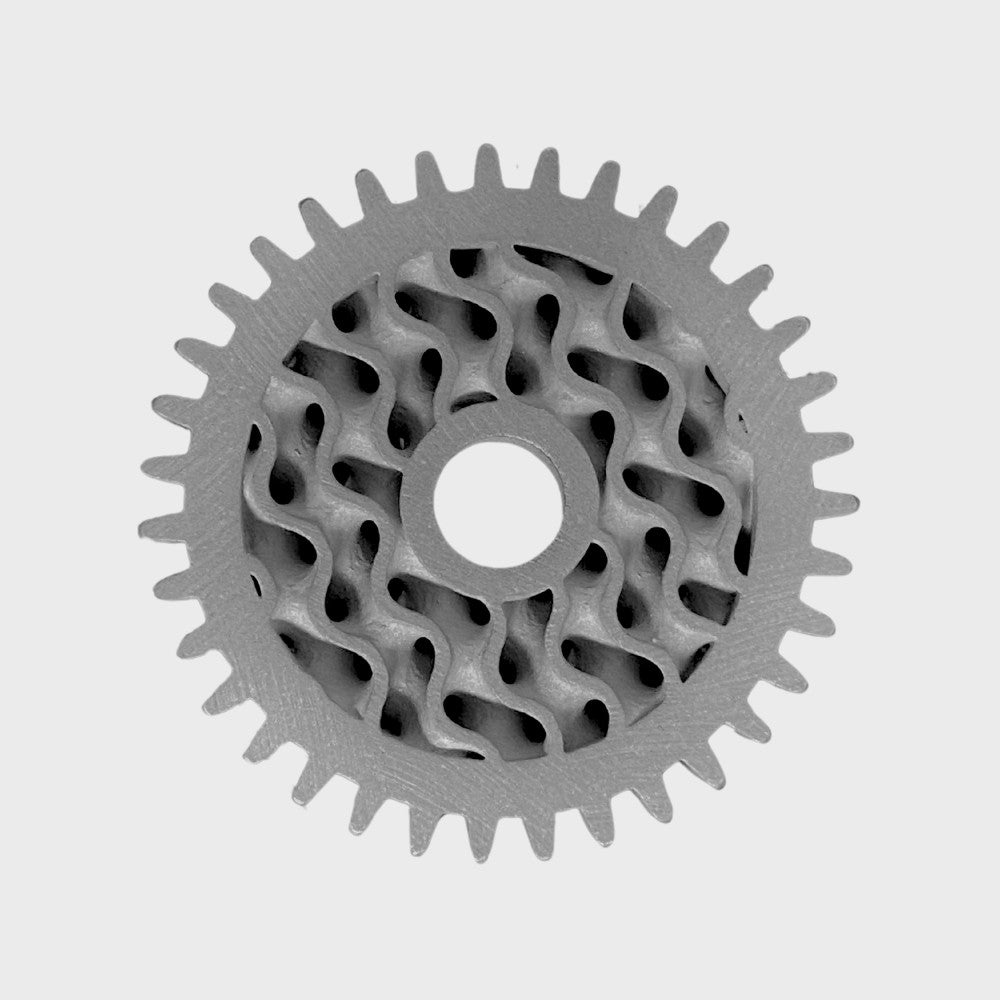

Lattice Gear
This gear, used for crushing machines, enhances efficiency and reduces system load with its lightweight, lattice-structured AlSi10Mg build. It is designed for operating at 200-250 rpm.
Industry: Machinery and Tooling
Application: End-Use Parts
Technology: SLM (Selective Laser Melting)
Material: AlSi10Mg
Dimensions: 50.18 x 50.18 x 10.47 mm
Lead Time: 8 Days
02

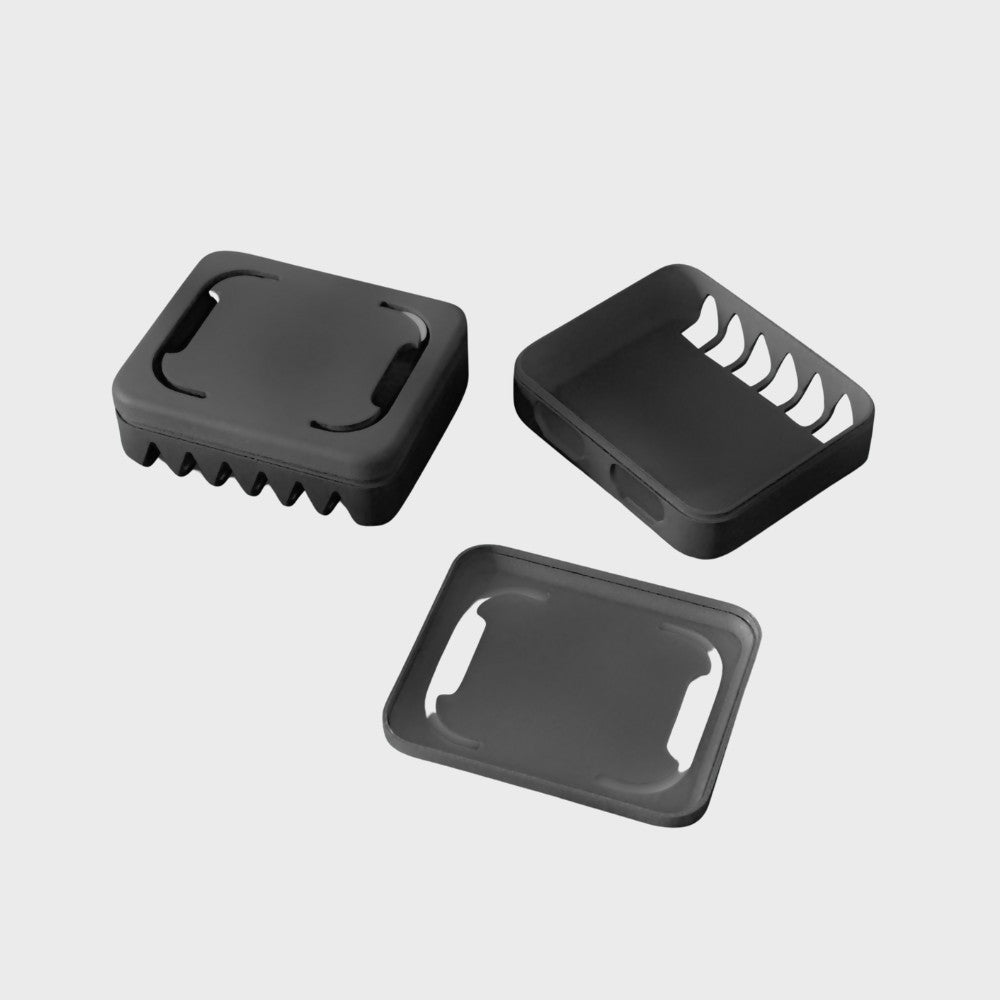

PCB Enclosure
For PCB enclosure parts ranging from 1 to 10,000 units, MJF 3D printing is an ideal technology. It allows for custom production of housing devices designed for remote system control and equipped with sensor outputs, without the need for injection molding.
Industry: Electronics
Application: End-Use Parts
Technology: MJF (Multi Jet Fusion)
Material: HP PA 12
Dimensions: 79.00 x 66.00 x 19.90 mm
Lead Time: 3 Days
03

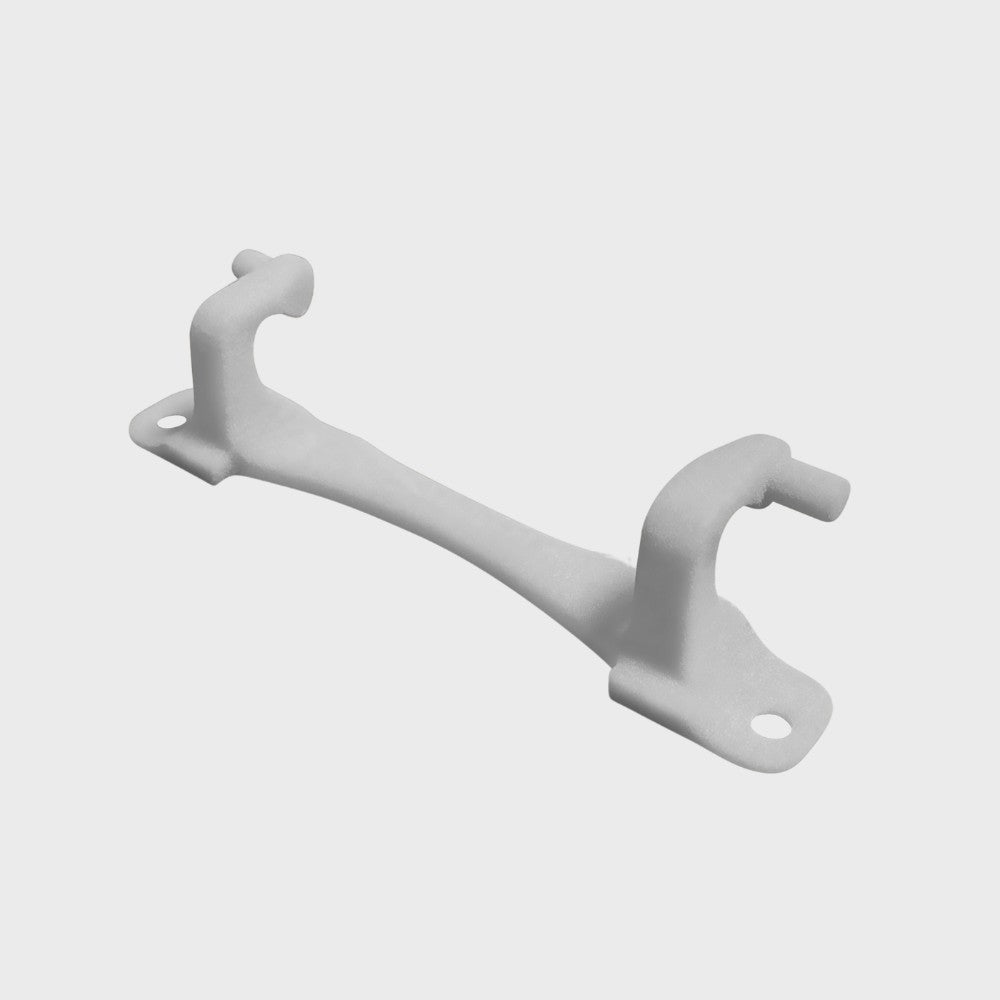

Cover Hinge
The high toughness and abrasion resistance of PP GB GF material make it highly suitable for the functional prototyping of household appliances, such as washing machine cover hinges.
Industry: Consumer Products
Application: Functional Prototyping
Technology: SLS (Selective Laser Sintering)
Material: PP GB GF
Dimensions: 120.23 x 40.29 x 46.72 mm
Lead Time: 4 Days
04
Bearing Housing
This clawed bearing housing can operate at temperatures up to 150 °C, securing a rotating shaft with a tight-fitting metal insert at six points. It keeps the slender shaft aligned, preventing axis deviation.
Industry: Machinery and Tooling
Application: Jigs and Fixtures
Technology: SLA (Stereolithography)
Material: Heat-Resistant Resin
Dimensions: 42.39 x 46.70 x 27.98 mm
Lead Time: 6 Days
05
Car Light
The high clarity enabled by industrial SLA technology is widely used for making transparent prototypes and parts, such as automotive lighting. Sanding, polishing, and UV spray coating are applied to parts for better transparency.
Industry: Automotive
Application: End-Use Parts
Technology: SLA (Stereolithography)
Material: Clear Resin
Dimensions: 110.55 x 50.30 x 20.80 mm
Lead Time: 5 Days
06
Chemical Nozzle
The SLM-produced chemical nozzle, with its unique one inlet and seven outlet design made from Ti6Al4V, enables precise and efficient pesticide distribution in agriculture, a feat hard to achieve with alternative manufacturing methods.
Industry: Machinery and Tooling
Application: End-Use Parts
Technology: SLM (Selective Laser Melting)
Material: Ti6Al4V
Dimensions: 18.25 x 18.25 x 21.37 mm
Lead Time: 7 Days
07
Air Vent
Both SLS and SLA 3D printing technologies were used to create an air vent prototype using three different materials, ensuring the mechanical qualities needed for end-use functionality in prototyping to conduct tests.
Industry: Automotive
Application: Rapid Prototyping
Technologies: SLS (Selective Laser Sintering), SLA (Stereolithography)
Materials: PP GB GF, Standard Resin, Tough Resin
Dimensions: 100.00 x 100.00 x 26.00 mm
Lead Time: 5 Days
08
Mounting Bracket
A high-strength spare part that connects the main body with the console containing control panels. Traditionally costly to produce in one piece due to its detailed geometries, this part was 3D-printed an delivered in a few days.
Industry: Automotive
Application: End-Use Parts
Technology: MJF (Multi Jet Fusion)
Material: HP PA 12
Dimensions: 91.28 x 88.44 x 180.50 mm
Lead Time: 2 Days
We design for additive manufacturing.
Contact Us4 Must-Haves for Fully Leveraging 3D Printing
Every piece matters.
Miss one, miss all: here are the four-fold expertise you need to fully harness the potential of AM and gain competitive advantage in your market.
01
Design Expertise
Mastering Design for Additive Manufacturing (DfAM) is essential, not optional. Successfully adapting AM depends on understanding its unique design rules.
02
Technology Expertise
Proficiency in AM technology is key. Each 3D printing technology has its capabilities and limitations, which are essential for choosing the right technology and achieving successful outcomes.
03
Material Expertise
Understanding the distinct and evolving AM materials, their properties, and applications is vital for 3D printing success. Without this knowledge, AM's full potential remains untapped.
04
Application Expertise
Knowing where and how 3D printing can be applied is fundamental. Application expertise guides decision-making, helping to identify the most effective and innovative uses of AM.
What are the use-cases?

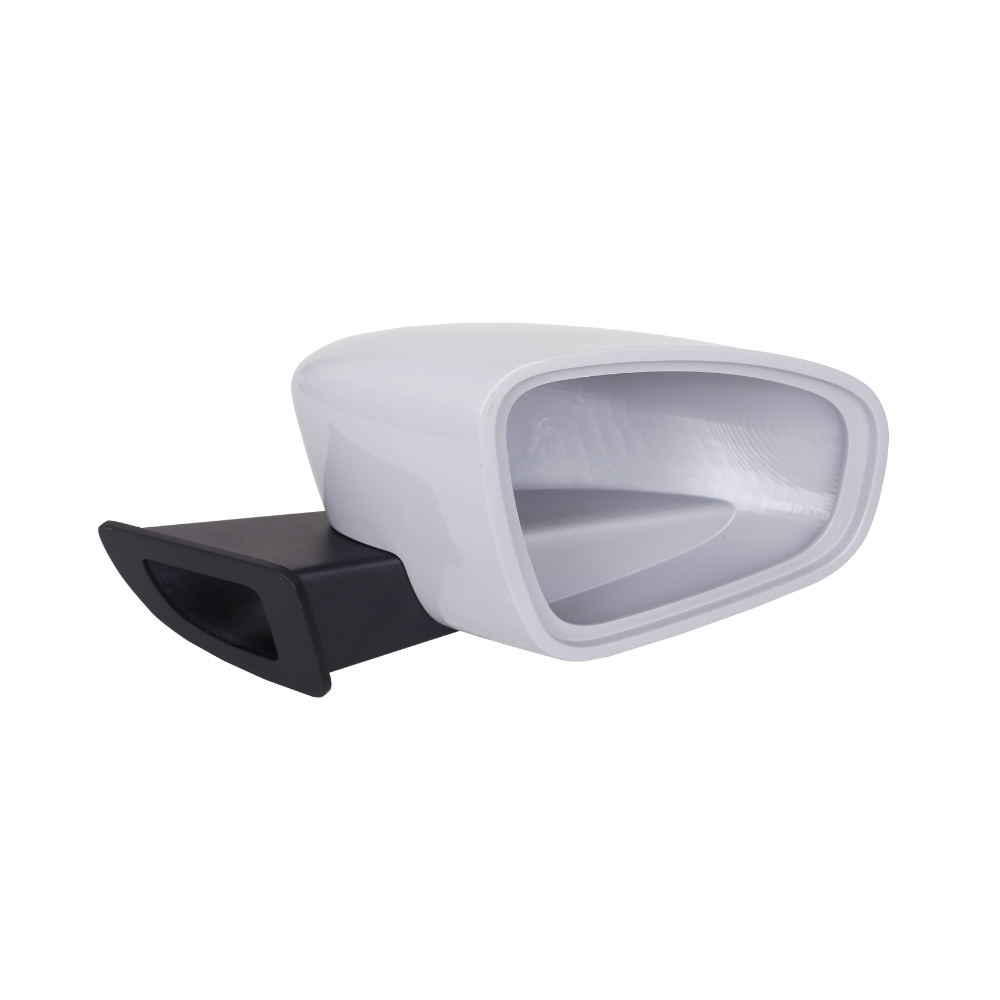

Additive Manufacturing Applications
3D printing is transforming industries from automotive to aerospace, offering unprecedented speed, customization, and efficiency.
Available Materials
Not sure which manufacturing method or materials best suit your requirements? Reach out to us. Our expert consultancy ensures you make informed decisions, guaranteeing optimal results for your project.
Contact UsFDM (Fused Deposition Modeling)
PLA, ABS, PETG, TPU, PC, Nylon 12CF, ASA, PEEK
MJF (Multi Jet Fusion)
HP PA 12, HP TPU
SLS (Selective Laser Sintering)
PA 11, PA 11 GF, PA 12, PA 12 CF, PP GB GF, TPU
SLA (Stereolithography)
Standard Resin, Clear Resin, Tough Resin (ABS-like), Durable Resin (PP-like), Heat-Resistant Resin, Rubber-like Resin, Ceramic-filled Resin (Rigid)
SLM (Selective Laser Melting)
AlSi10Mg, 316L Stainless Steel, 17-4PH Stainless Steel, Ti6Al4V
BJ (Binder Jetting)
316L Stainless Steel, 17-4PH Stainless Steel
