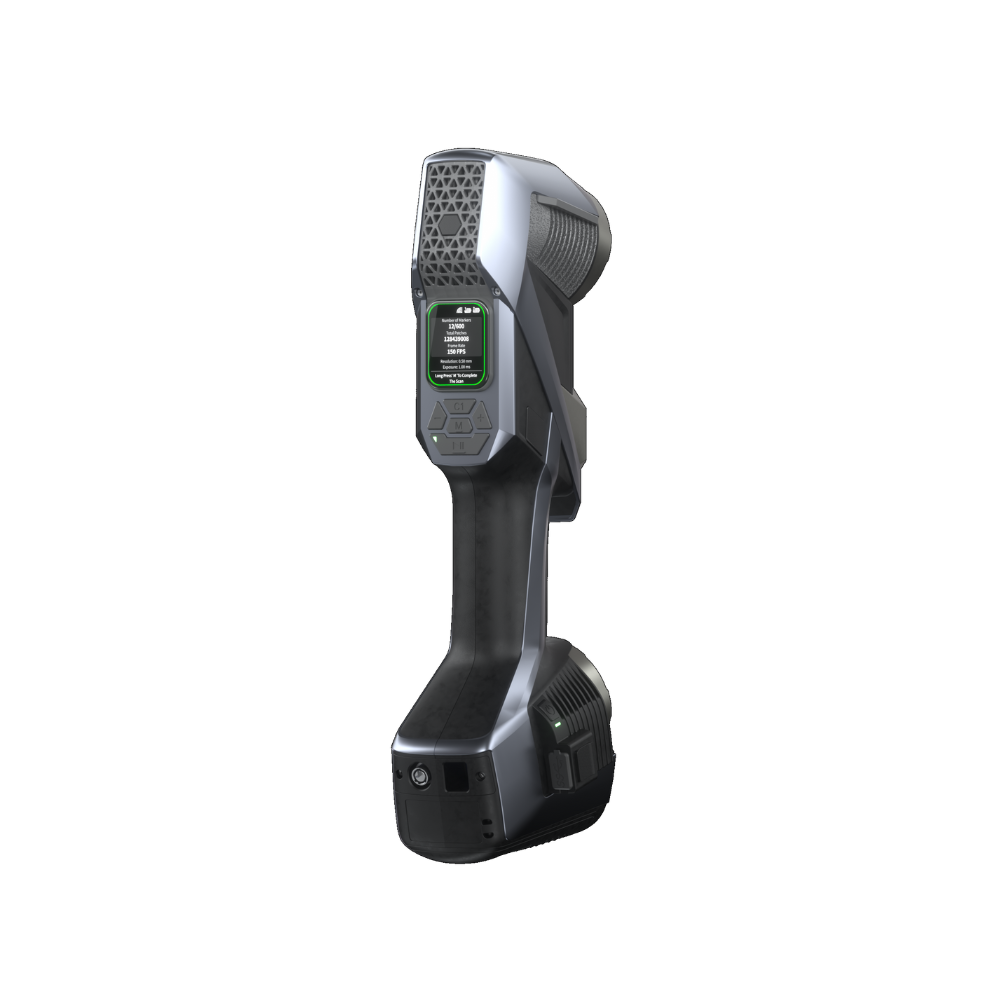

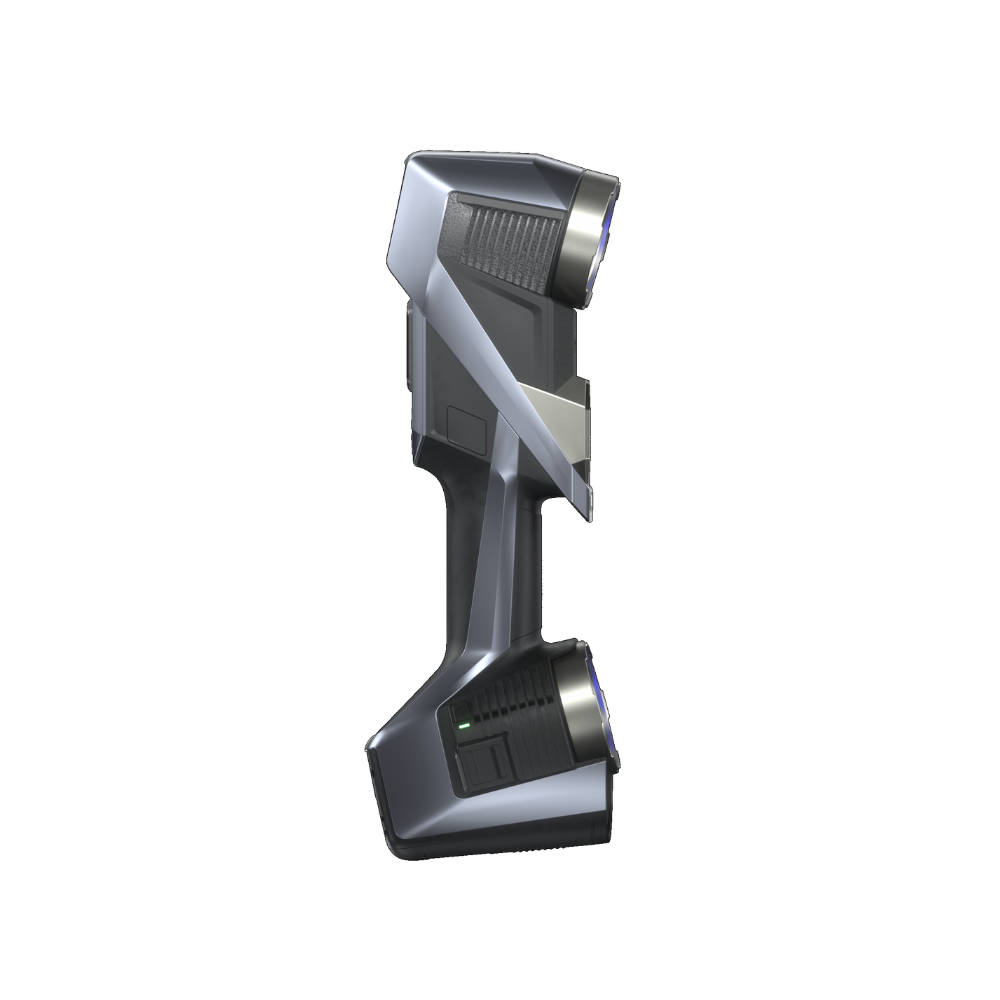

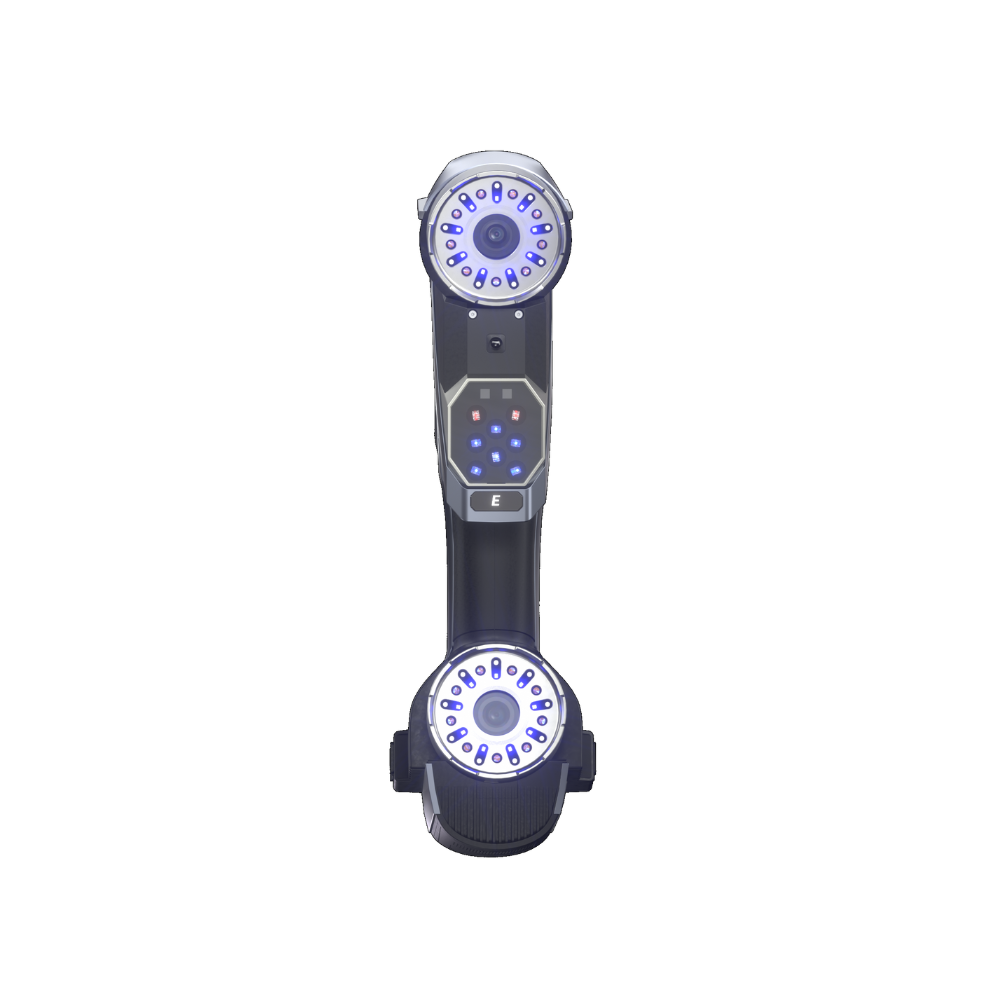

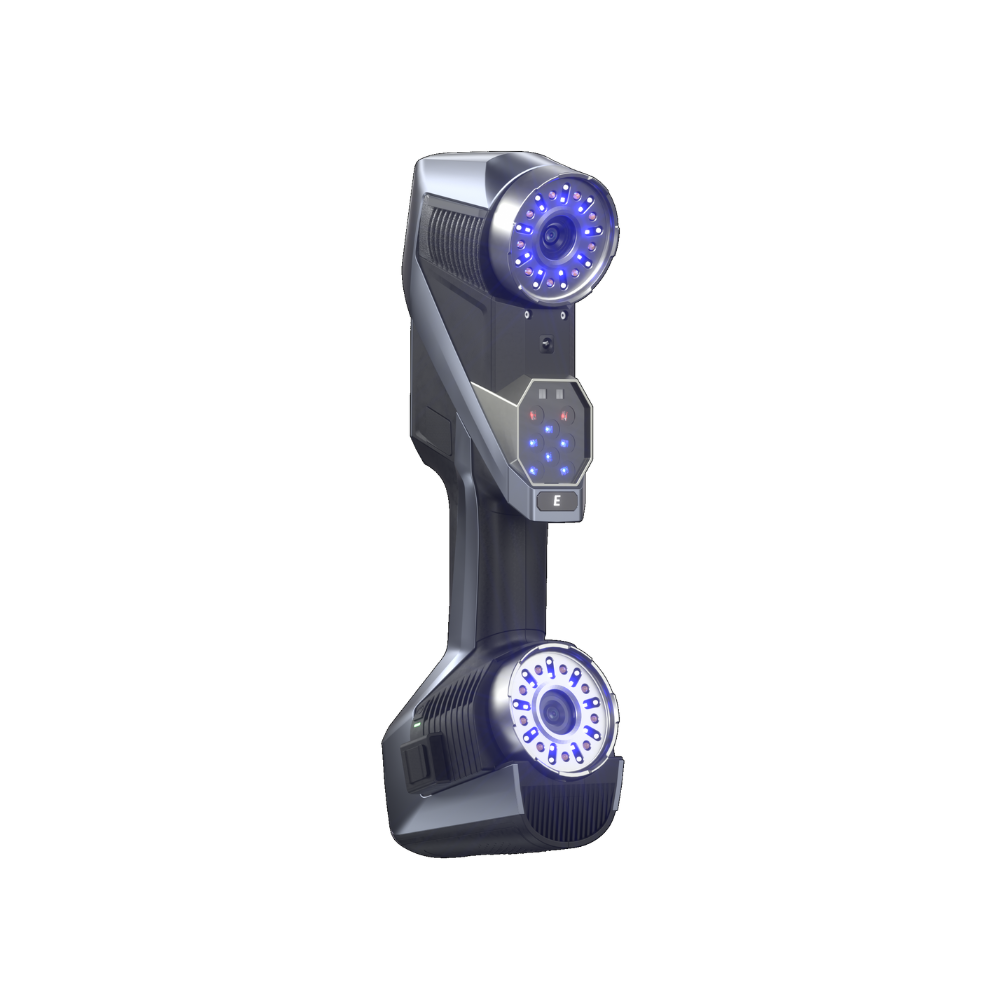

KSCAN-E
Intelligent Hybrid 3D Scanning System
Combining blue-laser scanning with built-in photogrammetry, KSCAN-E captures complex geometries with micron-level precision. Its wireless design and multi-mode operation enable fast, accurate data acquisition across metal, composite, and polymer parts.
Browse Scanology 3D scanners.
Technical Specifications
Download Datasheet108 Blue Laser Lines (Quad-Cross Technology)
17 Parallel Blue Laser Lines
38 Infrared Laser Lines
1 Additional Blue Laser Line
Smart Edge Inspection
Adaptive Photogrammetry
0.020 mm
Standard: 0.015 mm + 0.030 mm/m
Adaptive Photogrammetry: 0.015 mm + 0.015 mm/m
With MSCAN-L15: 0.015 mm + 0.012 mm/m
0.030 mm
0.050 mm
≤ 8,290,000 Measurements/s
≤ 180 Frames/s
≤ 1,440 × 1,000 mm
Large Area: 600–1,500 mm
Ultra-Fast: 200–700 mm
Hyper-Fine: 150–300 mm
0.050–8 m
≤ 0.010 mm
Class II (Eye-Safe)
USB 3.0 Type-B
Wi-Fi 6, 802.11a/B/g/N/Ac; Dual Wireless Network Card
A built-in computing module and built-in battery provide uninterrupted power.
Fanless Design; Suitable for Workshop Environments
-10 to 40 °C
10–90% (Non-Condensing)
IP50
344 × 124 × 99 mm
DefinSight
Evaluated in an ISO 17025-accredited laboratory based on VDI/VDE 2634 Part 3, JJF 1951 and ISO 10360-13.
CE
All-in-One Flagship Scanner
With six working modes, 0.020 mm accuracy and a built-in computing module, the KSCAN-E wirelessly captures full-field data, from large surfaces to fine details.
Exceptional Accuracy
Superior precision and reliability set a new standard in non-destructive inspection. It delivers 0.020 mm accuracy, plus volumetric accuracy of 0.015 mm + 0.015 mm/m with an 800 mm scale bar and 0.015 mm + 0.012 mm/m with the MSCAN-L15 photogrammetry system.
Efficient Measurement
Quad-cross technology accelerates point cloud generation. With 4 × 27 cross blue laser lines, a 180 frames/s frame rate and 8,290,000 measurements/s, measurement efficiency increases markedly.
Excellent Detail Capture
17 Parallel blue laser lines and high-performance industrial cameras deliver 0.010 mm resolution. With DefinSight real-time meshing, fine features such as gaps and slots are captured clearly.
Smart and Wireless Design
A built-in computing module, built-in battery and dual wireless network card free the KSCAN-E from cables, while the touchscreen and phone holder give full control on site.
Independent Operation in the Field
With the phone holder, smart guidance and C1 custom key, scanning is managed without being tied to a computer, and data is transferred wirelessly in real time. The built-in processing module and battery support a full day of work in the field.

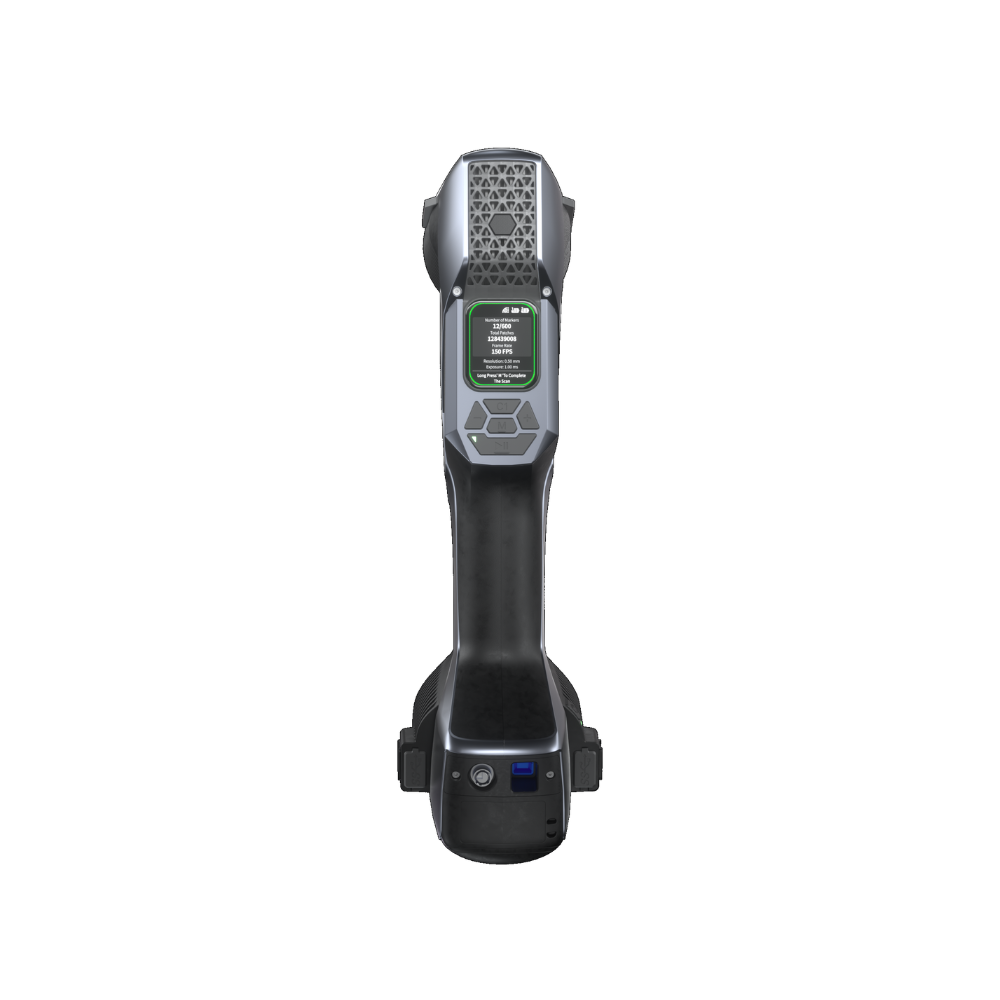

Built-In Touchscreen
Scanning parameters are viewed and adjusted directly on the device screen.
Smart Guidance
The operator is guided to missing areas during scanning.
Phone Holder
A smartphone attaches to the device so the scan can be followed on its screen.
C1 Custom Key
A frequently used function is assigned to a single key.
Powerful Built-In Processing Module
Large data volumes are processed efficiently on the device.
Built-In Battery
Enables wireless, uninterrupted operation.
Dual Wireless Network Card
Wireless, stable and high-speed data transfer is guaranteed.
Smart Edge Inspection
Holes and edges are inspected automatically during scanning.
8,290,000 Measurements/s
Scanning speed reaches 8,290,000 measurements per second.
180 Frames/s
A high frame rate keeps scanning in motion smooth.
