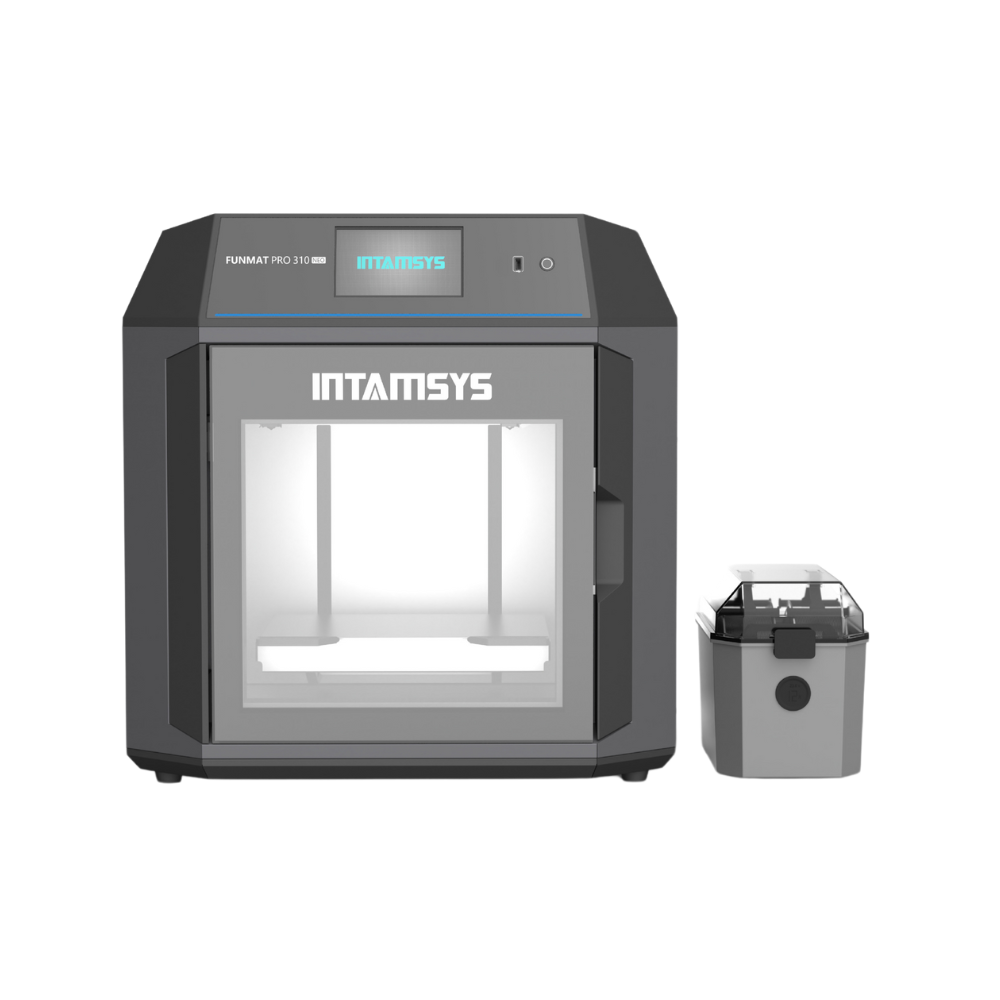

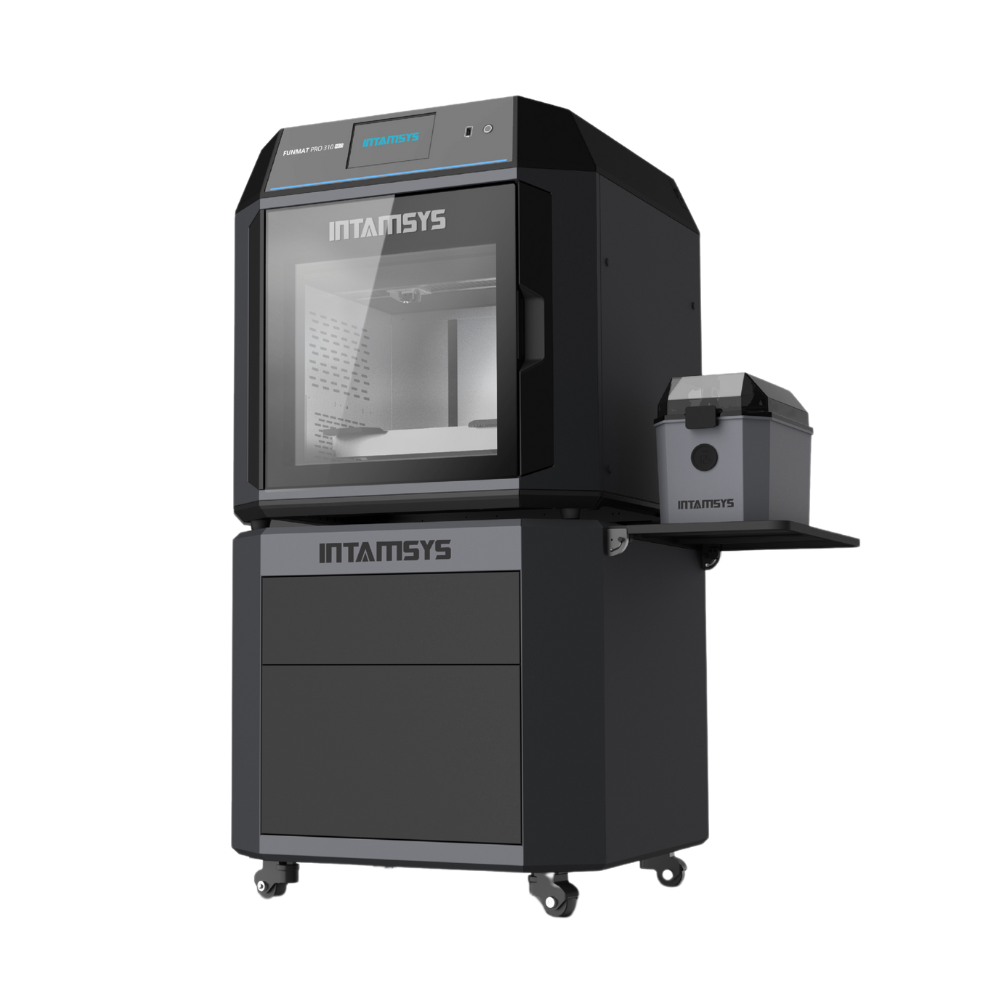

FUNMAT PRO 310 NEO
Dual-Extrusion and High-Speed
FUNMAT PRO 310 NEO is a high-speed industrial 3D printer equipped with IDEX technology for advanced dual-material printing. Designed for efficient, high-quality production of complex engineering parts.
FFF (Fused Filament Fabrication)Thermoplastic Filaments
Browse Intamsys 3D printers.
The products below are optional but included in the quote for successful operation.
Equipment: INTAM™ Cabinet Equipment Enclosure, INTAM™ Box Filament Drying Cabinet
Technical Specifications
Download DatasheetFFF (Fused Filament Fabrication)
Single Nozzle: 305 × 260 × 260 mm
Dual Nozzle: 260 × 260 × 260 mm
Dual
≤ 350 °C
≤ 160 °C
≤ 100 °C
0.10–0.30 mm
≤ 500 mm/s
≤ 10,000 mm/S²
1.75 mm
1 kg
Independent Sealed Box, Reusable Molecular Sieve, Real-Time Temperature and Humidity Monitoring
Fully Enclosed Print Chamber
Magnetic Flexible Plate
Automatic Mesh Calibration (≤ 100 Points), Dual-Nozzle Height Calibration
Filament Run-Out Alert, Power-Loss Recovery, Remote Control and Printing, Online Updates, Vibration Compensation, Quick-Release Nozzle
Fan
Replaceable HEPA and Activated Carbon Filter
X and Y: 16 µm
Z: 1.25 µm
7-Inch Touchscreen
Wi-Fi, Ethernet, USB
Windows
INTAMSUITE™ Slicing Software
STL, OBJ, X3D, 3MF, STP, IGES
700 × 655 × 700 mm
200–240 V, 7 A; 50/60 Hz; ≤ 1,500 W
0–30 °C
20–70%
Safety Door Lock, Over-Temperature Protection, Overload Protection and Warning Labels
CE
INTAM™ ABS, INTAM™ ABS+, INTAM™ ABS-HS, INTAM™ ASA, INTAM™ HIPS, INTAM™ PA, INTAM™ PA6-CF, INTAM™ PA12-CF, INTAM™ PC, INTAM™ PC-ABS, INTAM™ PC-FR, INTAM™ PC-PBT, INTAM™ PET-CF, INTAM™ PET-GF, INTAM™ PLA, INTAM™ PPA-CF, INTAM™ PPA-GF, INTAM™ PPS, INTAM™ PPS-GF, INTAM™ TPU 95A, INTAM™ PVA, INTAM™ SP3030, INTAM™ SP3050, INTAM™ SP5000, INTAM™ SP5010, INTAM™ SP5040
The system is an open platform; besides the listed materials, it is also compatible with third-party materials that the machine specifications support. Parameters must be developed separately.
100 °C Thermostatic Chamber and IDEX
Industrial FFF in a desktop footprint: an actively heated chamber, independent dual extruders and a 500 mm/s print speed deliver full-size, warp-free parts in engineering plastics.
Full-Size Printing
The heated chamber reduces thermal deformation and shrinkage for warp-free printing at the full 305 × 260 × 260 mm size.
Warp-Free PC Printing
The 100 °C chamber prevents warping, delamination and deformation in PC parts larger than 150 mm.
Superior Mechanical Properties
A stable chamber temperature gives consistent, high strength in ABS, PC and PC-ABS.
IDEX Modes
Four Modes for Different Use Cases
Independent dual extruders switch between four printing modes, so one printer covers batch production, multi-material parts and complex supports.
Dual Material Mode
Two different materials are printed together in the same part.
Duplicate Mode
Both nozzles print the same part at the same time, doubling output.
Mirror Mode
Symmetrical parts are printed as mirror images in a single run.
Support Mode
Model and support materials are fed from separate nozzles.
Speed, Calibration and Usability
500 mm/s speed and vibration compensation, plus automatic calibration, a modular print head, filtration and a dry box: a design that brings the industrial experience into the office.
Mesh calibration with up to 100 points plus dual-nozzle height calibration; no manual adjustment needed.
Quick-release print head; changes take minutes and maintenance needs are low.
The replaceable filter reduces particle and odor emissions, making the printer suitable for offices.
Sealed box, reusable molecular sieve and real-time temperature and humidity monitoring.
The door locks during printing, with over-temperature and overload protection.
System Workflow
-
Data Preparation
The model is sliced in INTAMSUITE™.
-
Filament Loading
Two spools are fed from the dry box.
-
Automatic Calibration
Mesh and nozzle height are calibrated.
-
3D Printing
Parts are printed in the 100 °C chamber.
-
Part Removal
The flexible plate is bent to release the part.
-
Post-Processing
Supports are removed.
