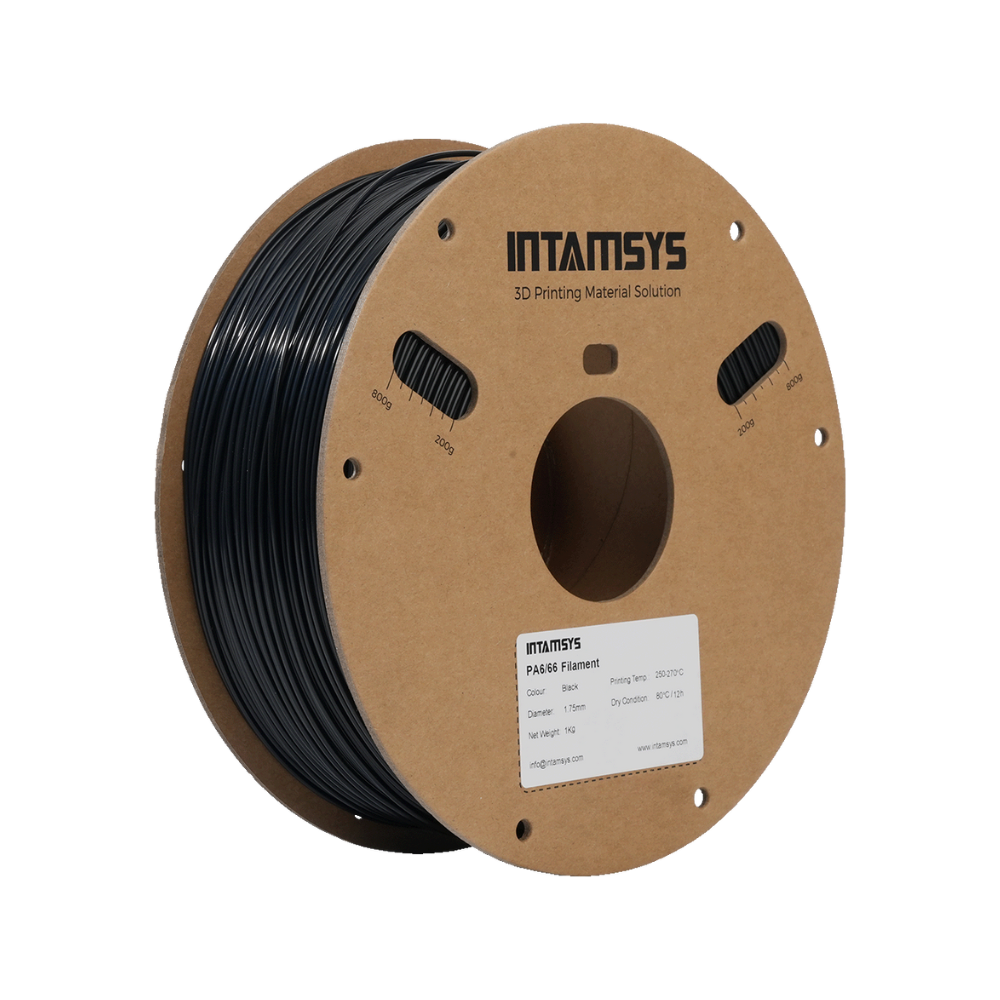

INTAM™ PA6/66
Reinforced Nylon
Nanoclay-reinforced Nylon 6/6,6 copolymer with enhanced dimensional stability and strong mechanical performance. Ideal for functional parts requiring strength, stiffness, and heat resistance.
FFF (Fused Filament Fabrication)Thermoplastic Filaments
Technical Specifications
Download Datasheet1.24 g/cm³ (ISO 1183)
67 °C (DSC, 10 °C/min)
190 °C (DSC, 10 °C/min)
128 °C (DSC, 10 °C/min)
181 °C (ISO 306)
6.2 g/10 min (260 °C, 2.16 kg)
370 °C (TGA, 20 °C/min)
72.7 MPa (ISO 527)
2,595 MPa (ISO 527)
4.6% (ISO 527)
123.1 MPa (ISO 178)
1,681 MPa (ISO 178)
8.1 kJ/m² (ISO 179, Notched)
FUNMAT HT, FUNMAT PRO 310 NEO, FUNMAT PRO 310 APOLLO, FUNMAT PRO 410, FUNMAT PRO 610HT
Can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.
Key Features and Applications
Key Features
- Offers improved dimensional stability through nanoclay reinforcement.
- Provides high tensile and flexural strength.
- Shows a high Vicat softening temperature.
Applications
- Ideal for gears, bearings, and functional parts subject to wear.
- Automotive and industrial machinery components.
