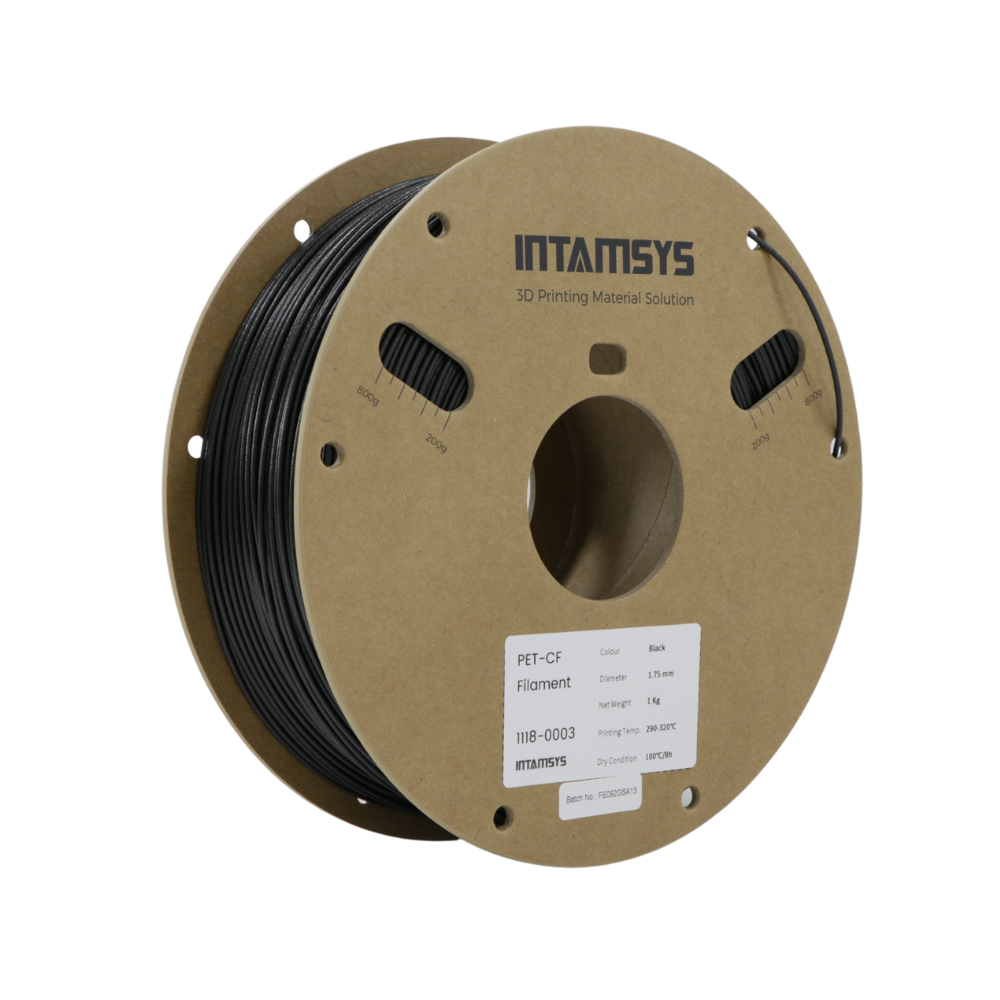

INTAM™ PET-CF
Stiff and Stable Carbon-Reinforced PET
Built for dimensional accuracy and high stiffness, this carbon-fiber reinforced PET resists warping, moisture, and chemicals. A reliable option for structural parts needing strength and thermal performance.
FFF (Fused Filament Fabrication)Thermoplastic Filaments
Technical Specifications
Download Datasheet1.30 g/cm³ (ISO 1183)
0.5% (ISO 62, Method 1)
251 °C (ISO 11357)
76.6 °C (ISO 75, Method A)
6.8 g/10 min (300 °C, 2.16 kg)
56.3 / 20.2 MPa (ISO 527)
6,182 / 3,429 MPa (ISO 527)
1.2 / 0.7% (ISO 527)
91.8 MPa (ISO 178)
4,353.9 MPa (ISO 178)
17.0 kJ/m² (ISO 179, Notched)
FUNMAT HT, FUNMAT PRO 310 NEO, FUNMAT PRO 310 APOLLO, FUNMAT PRO 410, FUNMAT PRO 610HT
Besides the listed systems, it can also be used with third-party systems that meet the material requirements. Parameters must be developed separately.
Key Features and Applications
Key Features
- Offers low moisture absorption, high strength, and creep resistance.
- Provides dimensional stability without warping or shrinkage.
- Needs no heated chamber and prints without odor.
Applications
- Ideal for rigid jigs, fixtures, and structural parts.
- Industrial components that require chemical resistance.
