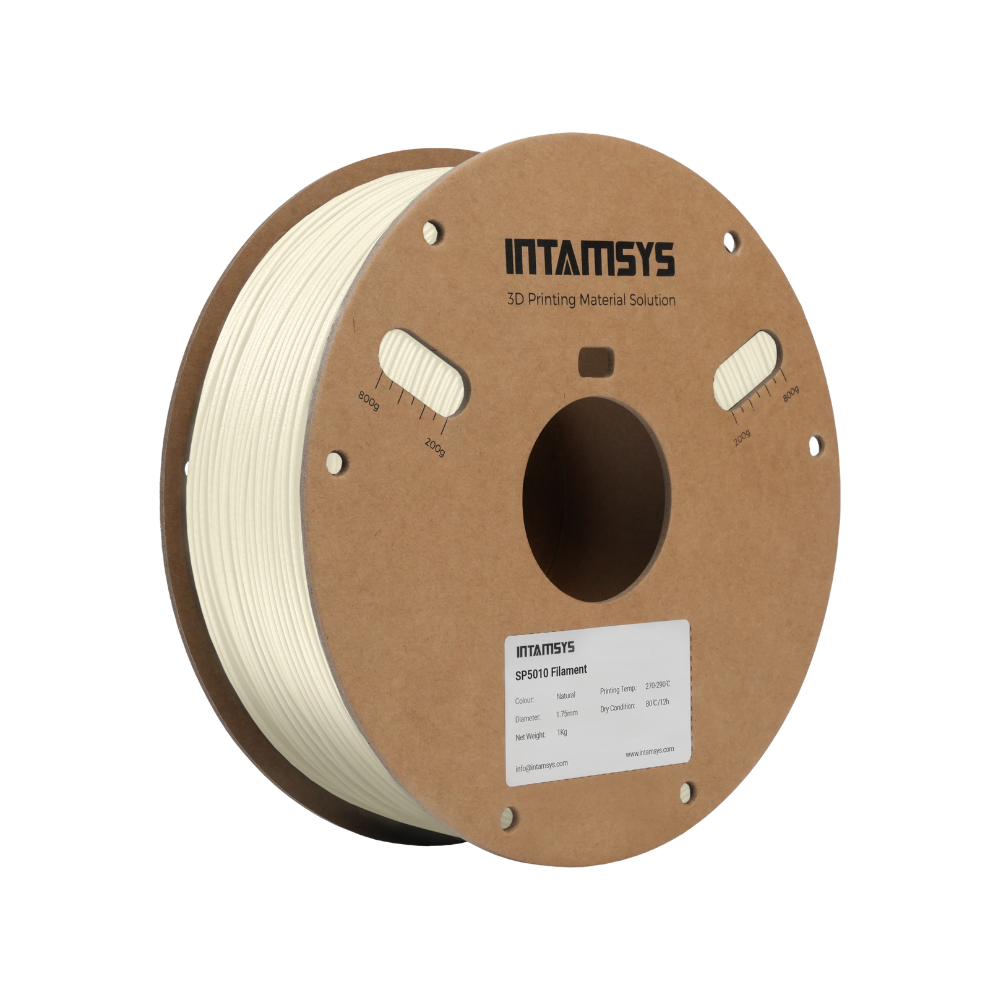

Intamsys INTAM™ SP5010 3D Printing Material

Intamsys

INTAM™ SP5010

Name: INTAM™ SP5010
Brand: Intamsys

Support for PPA Composites

SP5010 is a heat-resistant breakaway support filament developed for use with PPA-CF and PPA-GF materials. It adheres well during printing and separates cleanly by hand after cooling.

FFF (Fused Filament Fabrication)Support Filaments

Color: Natural

Weight:

Product variants:

Get a Quote

Technical Specifications

Download Datasheet

1.1–1.3 g/cm³ (ISO 1183)

270–290 °C

80 °C / 12 h

PPA-CF, PPA-GF

Broken off by hand.

FUNMAT HT, FUNMAT PRO 310 NEO, FUNMAT PRO 310 APOLLO, FUNMAT PRO 410, FUNMAT PRO 610HT

Besides the listed systems, it can also be used with third-party systems that meet the material requirements. Parameters must be developed separately.

Key Features and Applications

Key Features

Offers good heat resistance.
Adheres well to PPA-CF and PPA-GF during printing.
Removes easily by hand after printing.

Applications

Ideal for supporting PPA-CF and PPA-GF structural parts.
Clean support surfaces on complex models.

Compatible Systems

Besides the listed systems, it can also be used with third-party systems that meet the material requirements. Parameters must be developed separately.

Typical values are for reference and comparison only and must not be used for design specifications or quality control. Actual values may vary with print conditions. Test specimens were produced on FUNMAT 3D printers at 100% infill under laboratory conditions.
