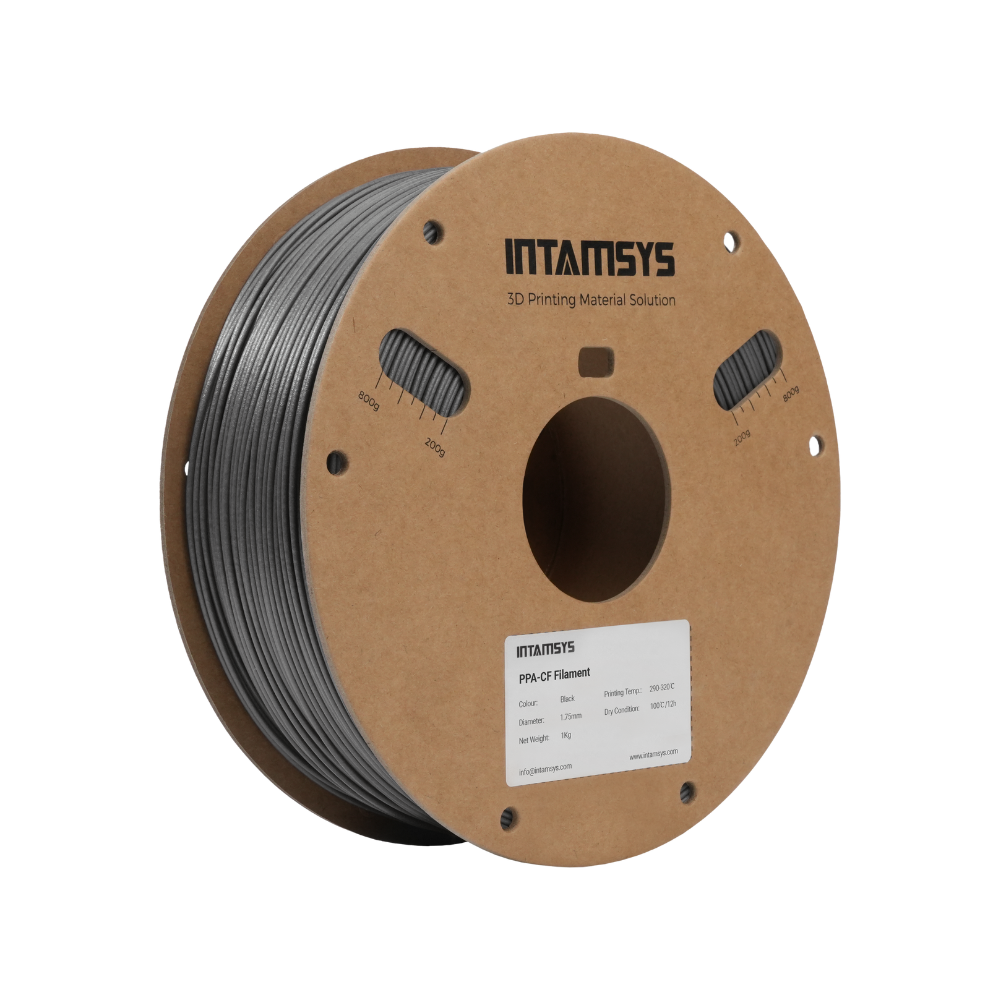

Intamsys INTAM™ PPA-CF 3D Printing Material

Intamsys

INTAM™ PPA-CF

Name: INTAM™ PPA-CF
Brand: Intamsys

Lightweight and Rigid Nylon Composite

PPA-CF is a carbon fiber reinforced high-temp nylon offering low moisture absorption, excellent dimensional stability, and strong mechanical performance. Designed for complex, load-bearing parts with minimal warping and clean support removal.

FFF (Fused Filament Fabrication)Thermoplastic Filaments

Color: Black

Weight:

Product variants:

Get a Quote

Technical Specifications

Download Datasheet

1.20 g/cm³ (ISO 1183)

1.37% (ISO 62, Method 1)

237 °C (ISO 11357)

84 / 191 °C (ISO 75, Method A)

3.4 g/10 min (300 °C, 2.16 kg)

81.7 / 30.2 MPa (ISO 527)

6,945 / 2,977 MPa (ISO 527)

2.0 / 1.3% (ISO 527)

167.5 MPa (ISO 178)

6,261 MPa (ISO 178)

20.1 kJ/m² (ISO 179, Notched)

FUNMAT HT, FUNMAT PRO 310 NEO, FUNMAT PRO 310 APOLLO, FUNMAT PRO 410, FUNMAT PRO 610HT

Besides the listed systems, it can also be used with third-party systems that meet the material requirements. Parameters must be developed separately.

Key Features and Applications

Key Features

Offers low density and low moisture absorption.
Provides high strength, wear resistance, and chemical resistance.
Fast-release SP5010 support gives a clean surface on complex geometries.

Applications

Ideal for lightweight structural parts that replace metal.
High-temperature automotive and industrial components.

Compatible Systems

Besides the listed systems, it can also be used with third-party systems that meet the material requirements. Parameters must be developed separately.

Typical values are for reference and comparison only and must not be used for design specifications or quality control. Actual values may vary with print conditions. Test specimens were produced on FUNMAT 3D printers at 100% infill under laboratory conditions.
