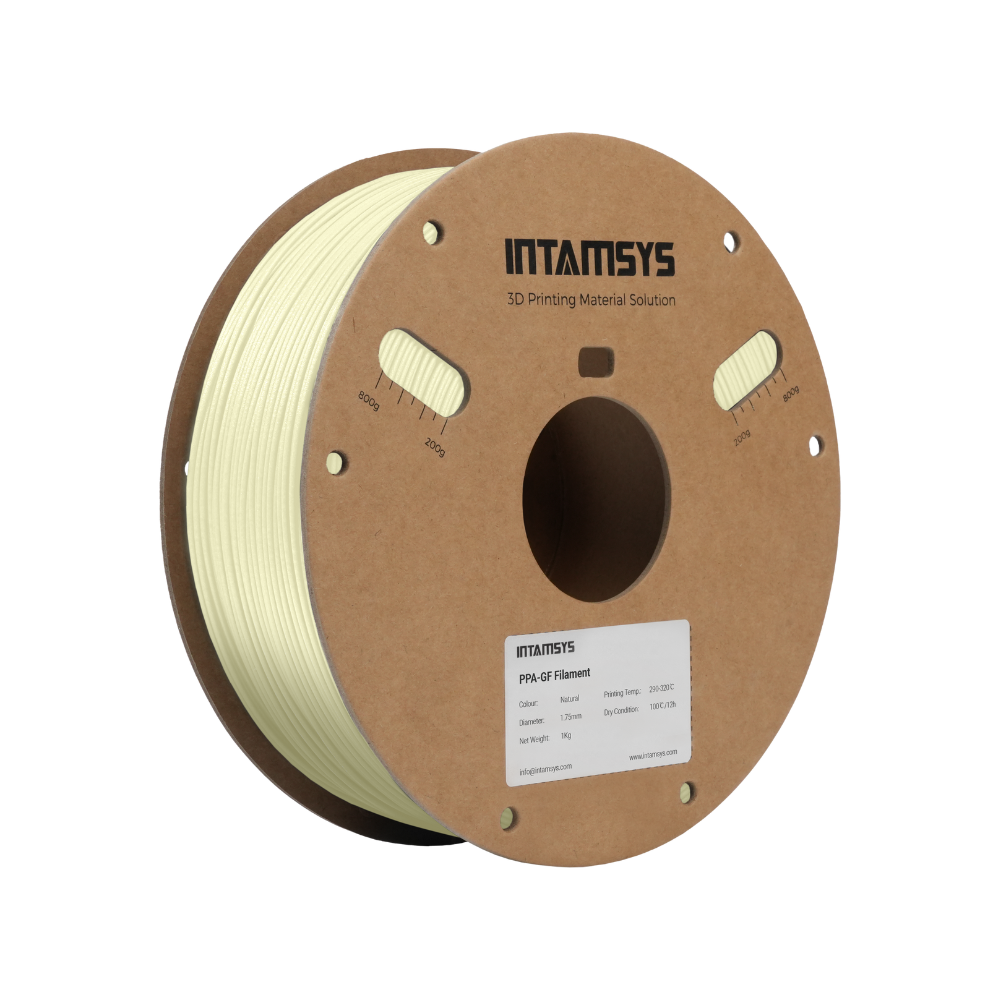

INTAM™ PPA-GF
Heat-Stable Nylon with Glass Fiber
PPA-GF offers enhanced impact strength, high thermal resistance, and excellent chemical stability with glass fiber reinforcement. Prints with minimal warpage and clean support separation—ideal for rugged engineering parts.
FFF (Fused Filament Fabrication)Thermoplastic Filaments
Technical Specifications
Download Datasheet1.27 g/cm³ (ISO 1183)
1.75% (ISO 62, Method 1)
237 °C (ISO 11357)
83 / 180 °C (ISO 75, Method A)
7.6 g/10 min (300 °C, 2.16 kg)
74.6 / 34.7 MPa (ISO 527)
4,382 / 2,580 MPa (ISO 527)
2.4 / 1.95% (ISO 527)
129.3 MPa (ISO 178)
3,377 MPa (ISO 178)
30.1 kJ/m² (ISO 179, Notched)
FUNMAT HT, FUNMAT PRO 310 NEO, FUNMAT PRO 310 APOLLO, FUNMAT PRO 410, FUNMAT PRO 610HT
Besides the listed systems, it can also be used with third-party systems that meet the material requirements. Parameters must be developed separately.
Key Features and Applications
Key Features
- Offers low density and low moisture absorption.
- Provides high strength, wear resistance, and chemical resistance.
- Fast-release SP5010 support gives a clean surface on complex geometries.
Applications
- Ideal for structural parts that need high impact strength.
- High-temperature automotive and industrial components.
