Intamsys INTAM™ PC-FR 3D Printing Material

Intamsys

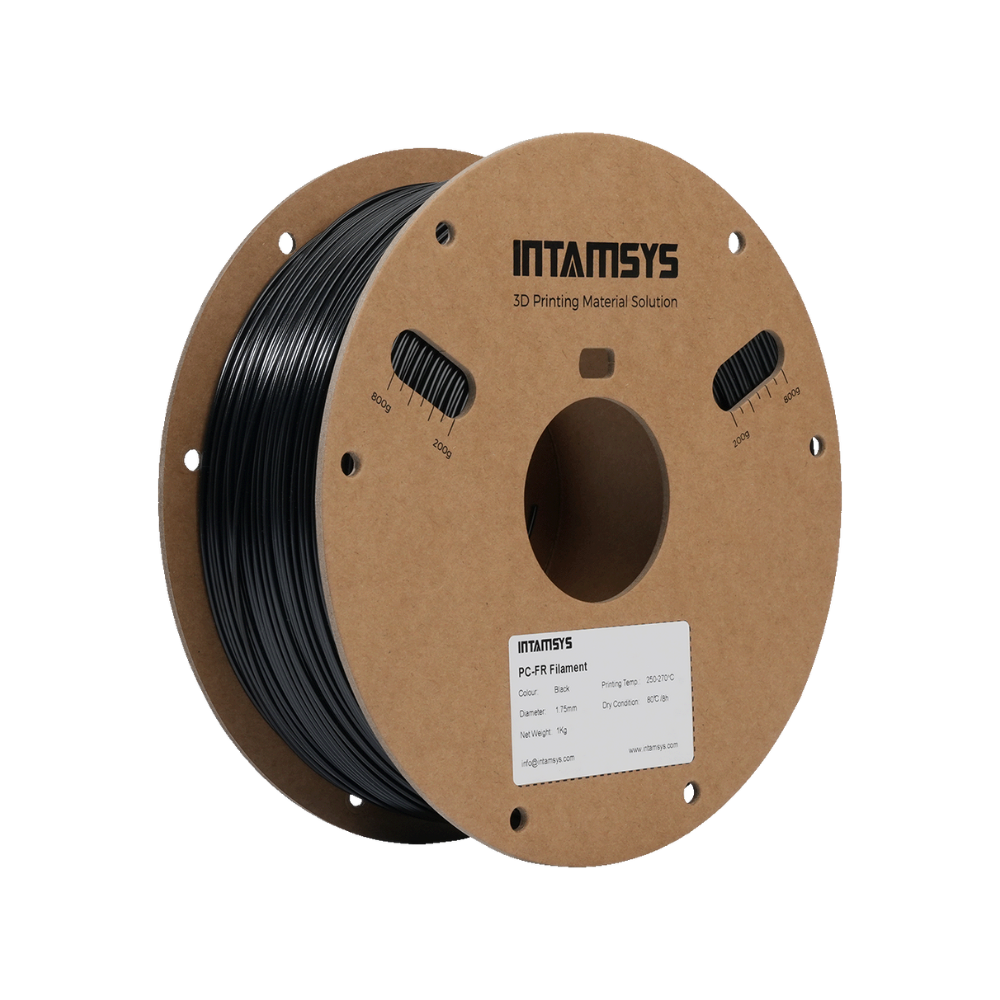

INTAM™ PC-FR

Name: INTAM™ PC-FR
Brand: Intamsys

Flame-Retardant PC Material

PC-FR is a V0-rated flame-retardant polycarbonate filament with strong mechanical properties and thermal resistance. Ideal for applications in automotive, aerospace, and railway industries.

FFF (Fused Filament Fabrication)Thermoplastic Filaments

Color: Black

Weight:

Product variants:

Get a Quote

Technical Specifications

Download Datasheet

1.2 g/cm³ (ISO 1183)

115 °C (DSC, 10 °C/min)

107 °C (ISO 75)

12–17 g/10 min (260 °C, 5 kg)

66.8 MPa (ISO 527)

2,810 MPa (ISO 527)

3.5% (ISO 527)

97 MPa (ISO 178)

2,490 MPa (ISO 178)

12.1 kJ/m² (ISO 179, Notched)

V0 (IEC 60695, 1.5 mm)

FUNMAT HT, FUNMAT PRO 310 NEO, FUNMAT PRO 310 APOLLO, FUNMAT PRO 410, FUNMAT PRO 610HT

Can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.

Key Features and Applications

Key Features

Delivers UL94 V0 flame retardancy.
Provides excellent toughness, strength, and heat resistance.
Developed for sectors with non-flammability requirements.

Applications

Ideal for interior components in automotive, rail, and aerospace.
Electrical and electronic housings.

Compatible Systems

Can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.

Typical values are for reference and comparison only and must not be used for design specifications or quality control. Actual values may vary with printing conditions. Test specimens were produced under laboratory conditions on FUNMAT 3D printers with 100% infill.
