Intamsys INTAM™ PA6-CF 3D Printing Material

Intamsys

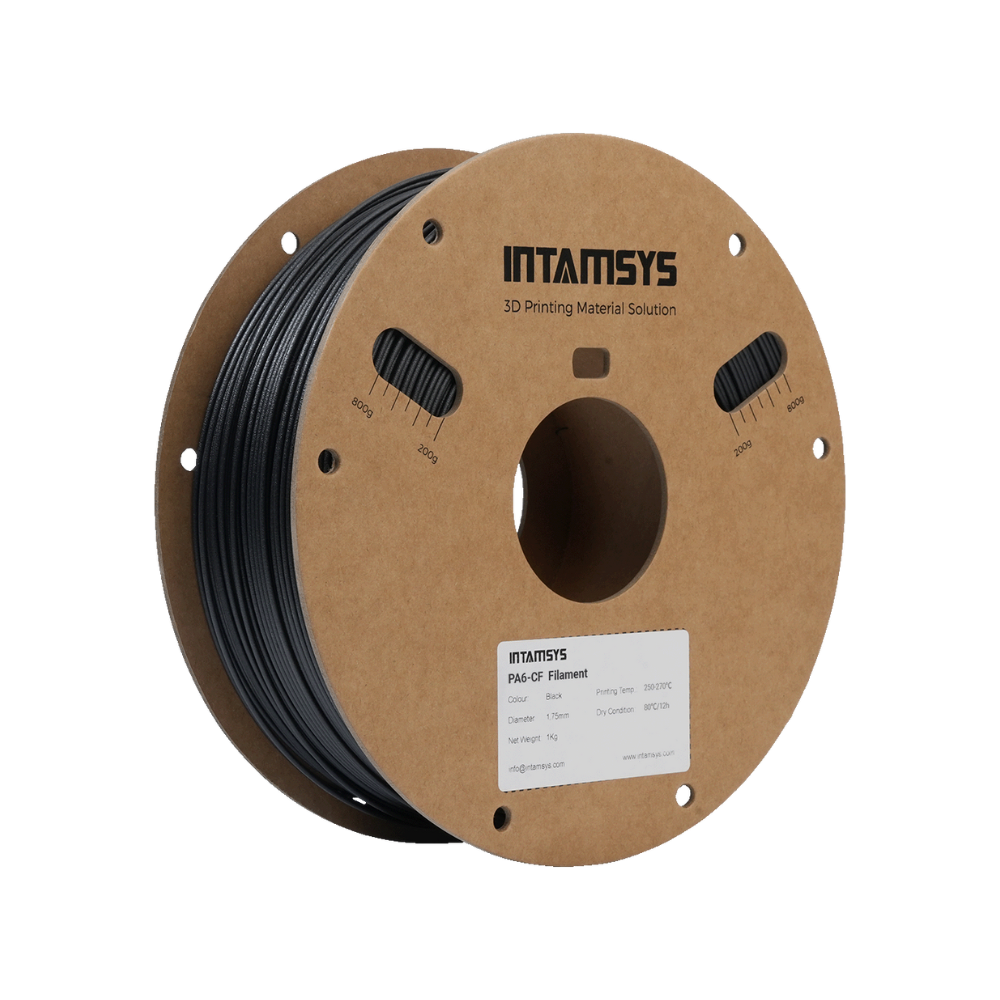

INTAM™ PA6-CF

Name: INTAM™ PA6-CF
Brand: Intamsys

Stiff, Strong, Stable

PA6-CF is a carbon fiber-filled Nylon 6 filament offering high stiffness, enhanced strength, and dimensional stability. Suitable for demanding engineering applications exposed to mechanical loads and heat.

FFF (Fused Filament Fabrication)Thermoplastic Filaments

Color: Black

Weight:

Product variants:

Get a Quote

Technical Specifications

Download Datasheet

1.2 g/cm³ (ISO 1183)

155 °C (ISO 75)

53 MPa (ISO 527)

130.5 MPa (ISO 178)

5,224 MPa (ISO 178)

12 kJ/m² (ISO 179, Notched)

FUNMAT HT, FUNMAT PRO 310 NEO, FUNMAT PRO 310 APOLLO, FUNMAT PRO 410, FUNMAT PRO 610HT

Can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.

Key Features and Applications

Key Features

Offers high stiffness through carbon fiber.
Provides a high heat deflection temperature.
Shows improved dimensional stability.

Applications

Ideal for lightweight, rigid structural parts.
Jigs, fixtures, and automotive components.

Compatible Systems

Can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.

Typical values are for reference and comparison only and must not be used for design specifications or quality control. Actual values may vary with printing conditions. Test specimens were produced under laboratory conditions on FUNMAT 3D printers with 100% infill.
