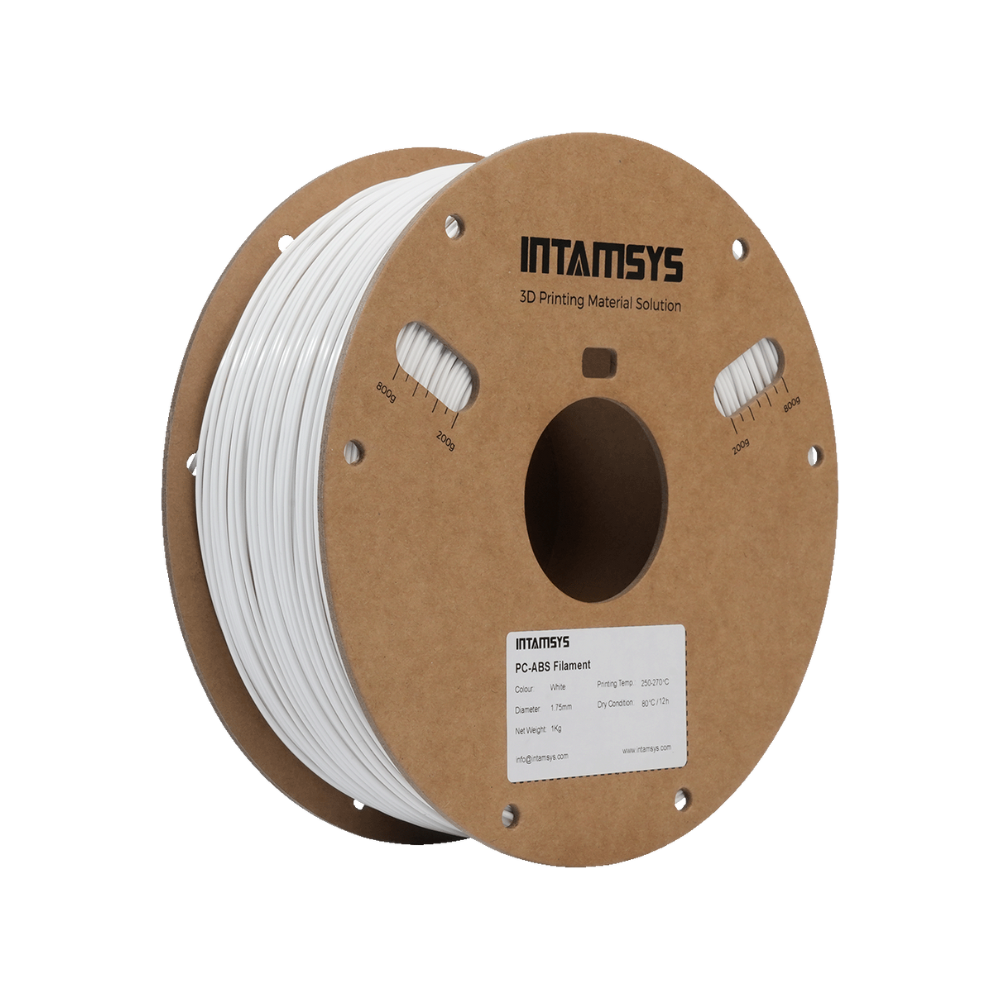

Intamsys INTAM™ PC-ABS 3D Printing Material

Intamsys

INTAM™ PC-ABS

Name: INTAM™ PC-ABS
Brand: Intamsys

Versatile Thermoplastic Alloy

A tough thermoplastic alloy combining heat resistance and good surface finish, PC-ABS is also compatible with metal plating. Well-suited for enclosures and functional parts requiring durability and appearance.

FFF (Fused Filament Fabrication)Thermoplastic Filaments

Color: Black

Weight:

Product variants:

Get a Quote

Technical Specifications

Download Datasheet

1.1 g/cm³ (ISO 1183)

109 °C (DSC, 10 °C/min)

106 °C (ISO 75)

11–17 g/10 min (260 °C, 5 kg)

42.7 MPa (ISO 527)

2,100 MPa (ISO 527)

4.7% (ISO 527)

76.5 MPa (ISO 178)

2,055 MPa (ISO 178)

16.2 kJ/m² (ISO 179, Notched)

FUNMAT HT, FUNMAT PRO 310 NEO, FUNMAT PRO 310 APOLLO, FUNMAT PRO 410, FUNMAT PRO 610HT

Can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.

Key Features and Applications

Key Features

Offers excellent toughness and heat resistance.
Provides good surface quality.
Is compatible with metal plating.

Applications

Ideal for automotive interior components and electronic housings.
Visible parts that require plating.

Compatible Systems

Can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.

Typical values are for reference and comparison only and must not be used for design specifications or quality control. Actual values may vary with printing conditions. Test specimens were produced under laboratory conditions on FUNMAT 3D printers with 100% infill.
