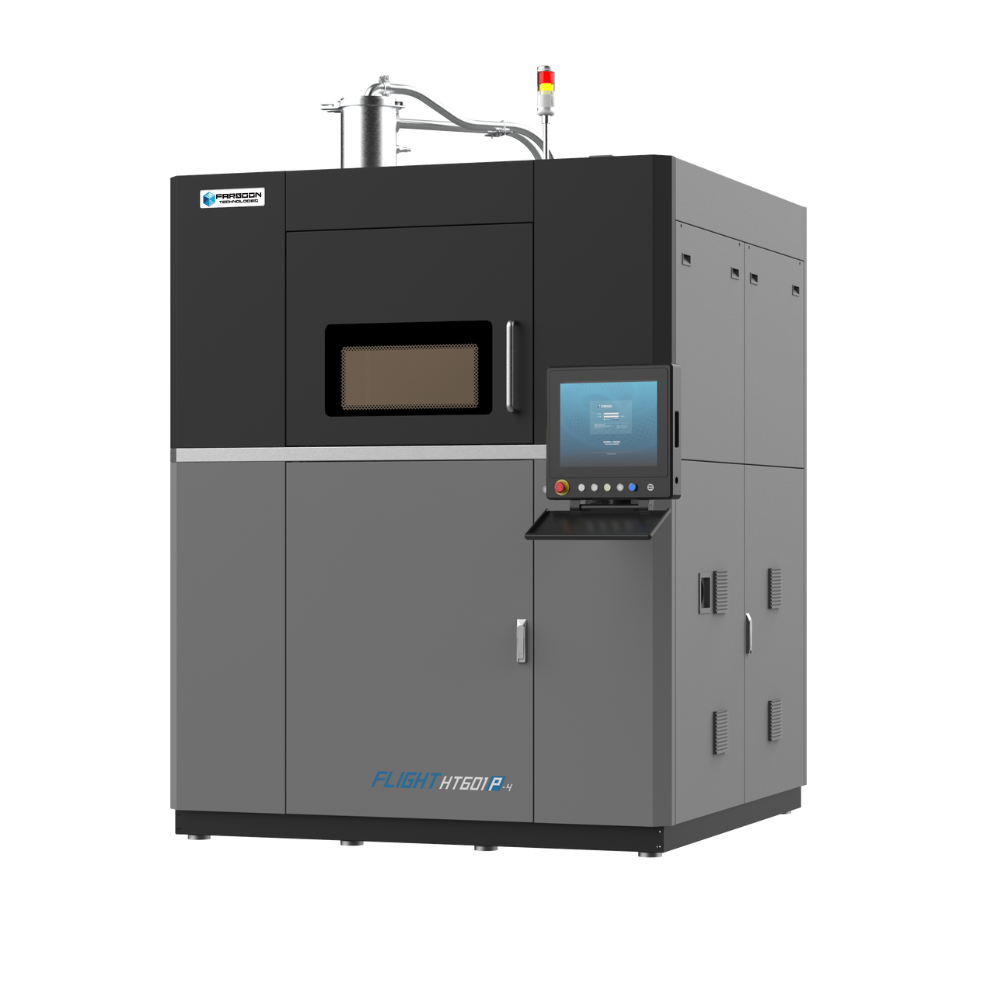

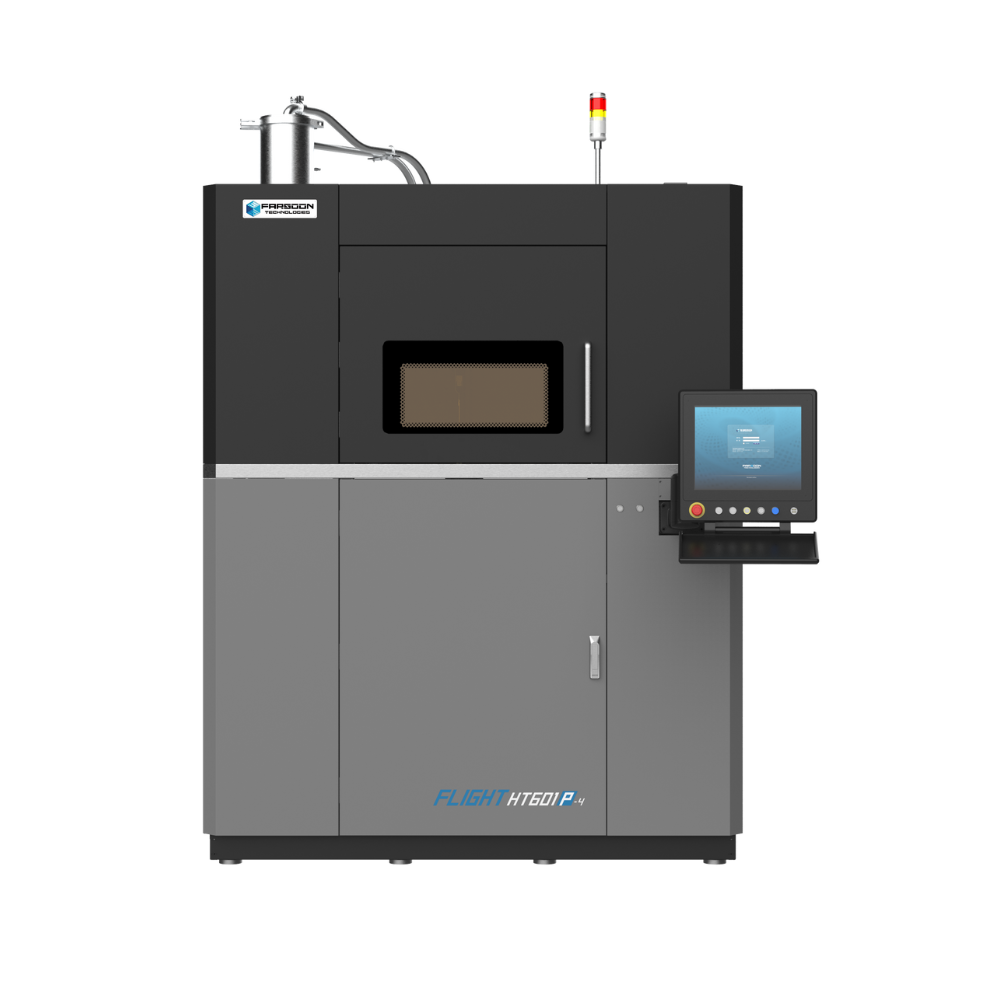

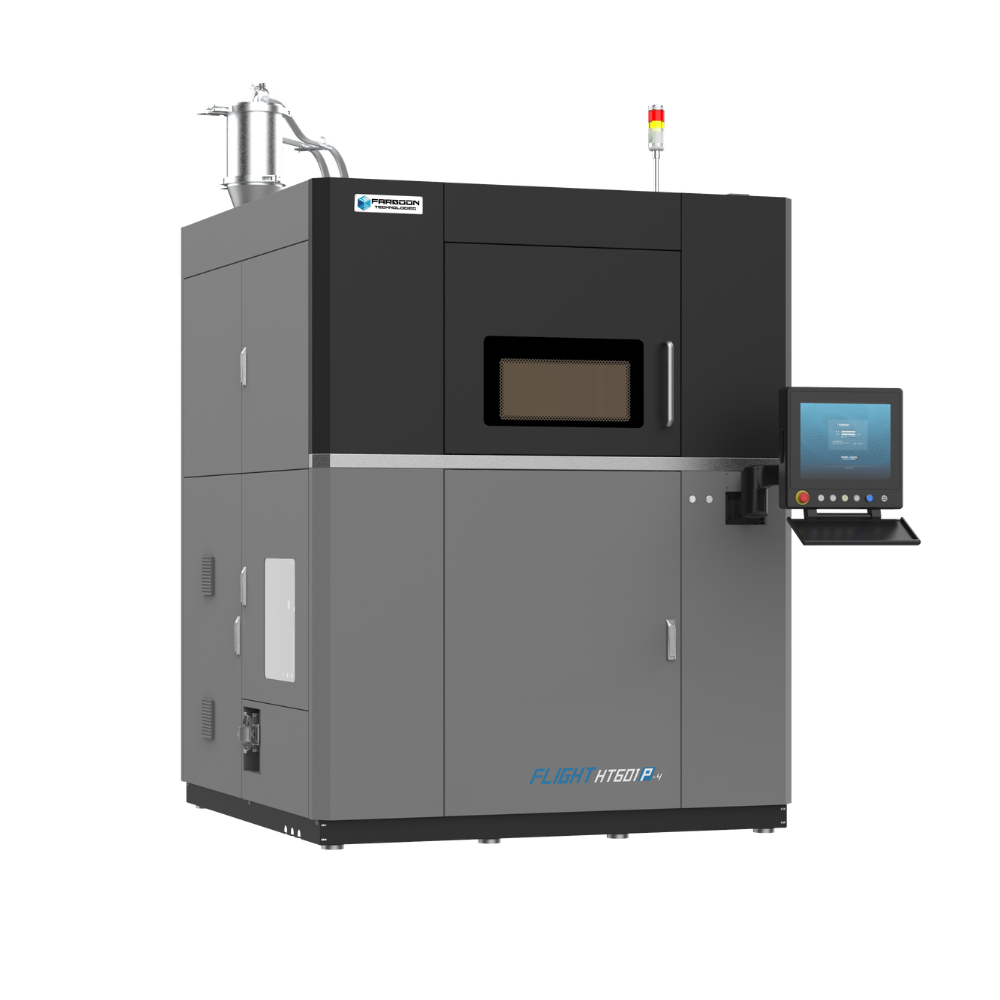

FLIGHT® HT601P-4
4-Laser SLS 3D Printer for Scalable Production
Farsoon FLIGHT® HT601P-4 features a 600 × 600 × 600 mm build volume and 4 fiber lasers, delivering scanning speeds up to 20 m/s. Its open platform, multi-zone thermal control, and advanced automation enable efficient, high-quality production of large polymer parts.
Browse Farsoon 3D printers.
The products below are optional but included in the quote for successful operation.
Equipment: MCWI-70C Chiller, FS601P.T16 Powder Feeding Unit, FS-PBS-601P Powder Cleaning Station, NPM-V150 Powder Mixer, ATTIX 961-01 Industrial Vacuum Cleaner, HC-1580a-2 Sandblasting Machine, HSFD39-5 Nitrogen Generator, LG-10 Air Compressor
Technical Specifications
Download DatasheetSLS (Selective Laser Sintering)
600 × 600 × 600 mm
4 × 300 W Maxphotonics Fiber Laser
High-Precision 3-Axis Galvanometer System
≤ 20 m/s
220 °C
0.06–0.30 mm
Nitrogen
Multi-Zone Heater and Intelligent Temperature Control Systems
Real-Time, Continuous Monitoring and Optimization of the Build Surface Temperature
Windows 11 (64-Bit)
BuildStar, MakeStar®: Open Access to Core Machine Parameters, Real-Time Changes to Build Parameters, 3D Visualization and Fault Diagnostics
STL
1,862 × 1,832 × 2,350 mm
~ 3,300 kg
400 V ±10%, 3~/N/PE, 50/60 Hz, 60 A
22–28 °C
CE
FS3150CF (PA12-CF), FS6140GF (PA6-GF), FS3201PA-F (PA12), FS3300PA-F (PA12), FS3401GB-F (PA12-GB), FS6130CF-F (PA6-CF)
The system is an open platform; besides the listed materials, it is also compatible with third-party materials that the machine specifications support. Parameters must be developed separately.
Series Production with 4 Fiber Lasers
4 x 300 W fiber lasers, a 216-liter build volume and an exchangeable build cartridge: a next-generation platform designed for true industrial series production.
Adjustable Laser Beam
A wide beam for infill and a narrow beam for contours, with a choice between throughput mode and quality mode.
Integrated Production Line
Powder management, automatic cartridge transfer, controlled cooling and part removal in a single flow.
High-Performance Materials
A 220 °C chamber delivers consistent mechanical properties across the PA6, PA11, PA12, PBT and TPU families.
Flow Channel Plate
Directs coolant or airflow in an automotive thermal management system; widely used in electric-vehicle battery cooling and engine cooling systems.
- Material
- FS3200PA-F (PA12)
- System
- FLIGHT® HT601P-4
System Workflow
-
Data Preparation
The build is laid out in BuildStar.
-
Powder Feeding
Powder is fed automatically from the top.
-
3D Printing
Parts are built layer by layer with the laser.
-
Cartridge Transfer
The cartridge is moved to cooling on the cartridge cart.
-
Depowdering
Parts are removed at the station.
-
Post-Processing
Sandblasting and surface finishing are applied.
