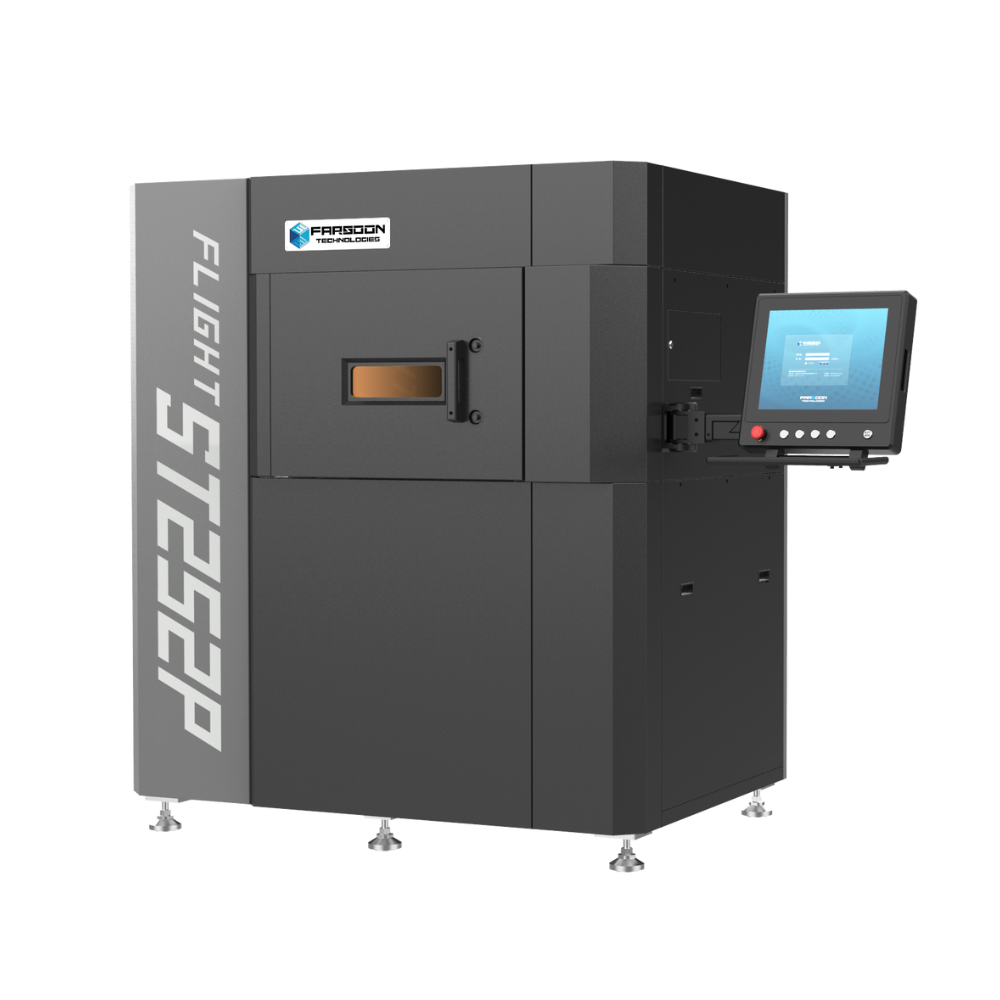

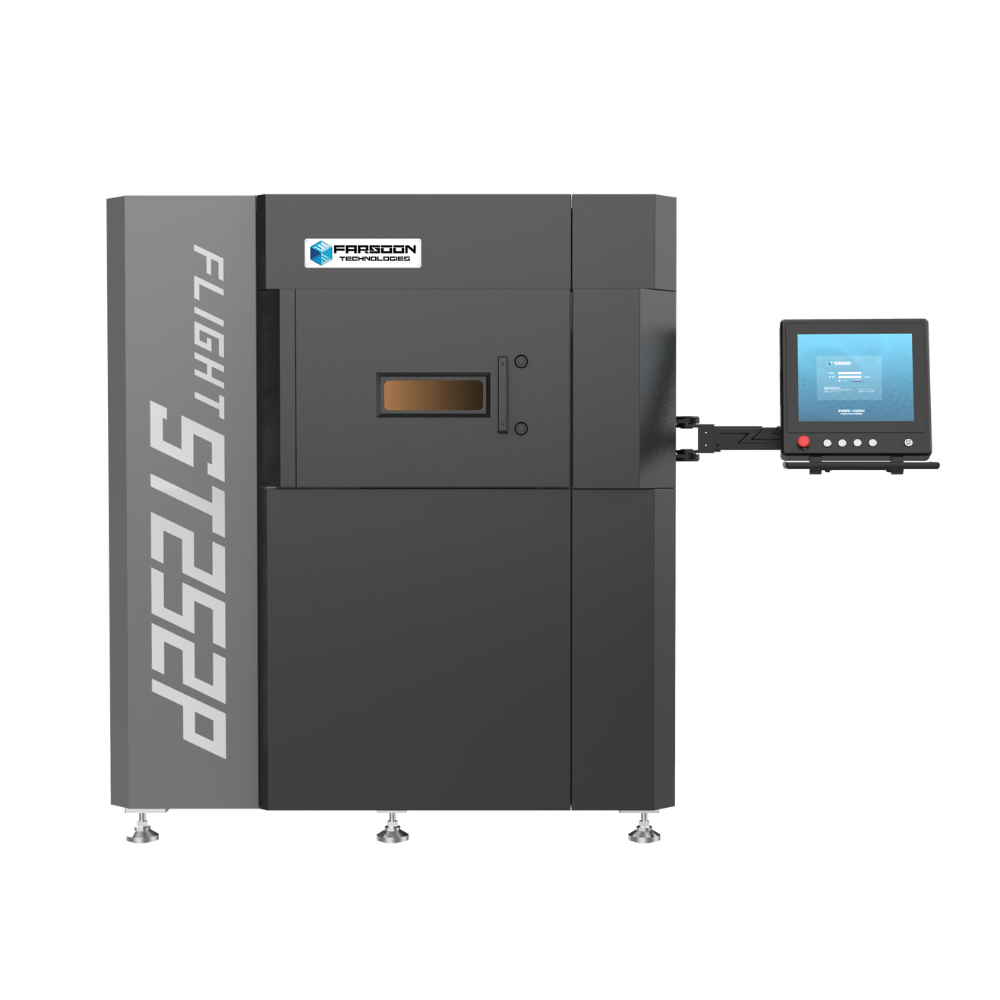

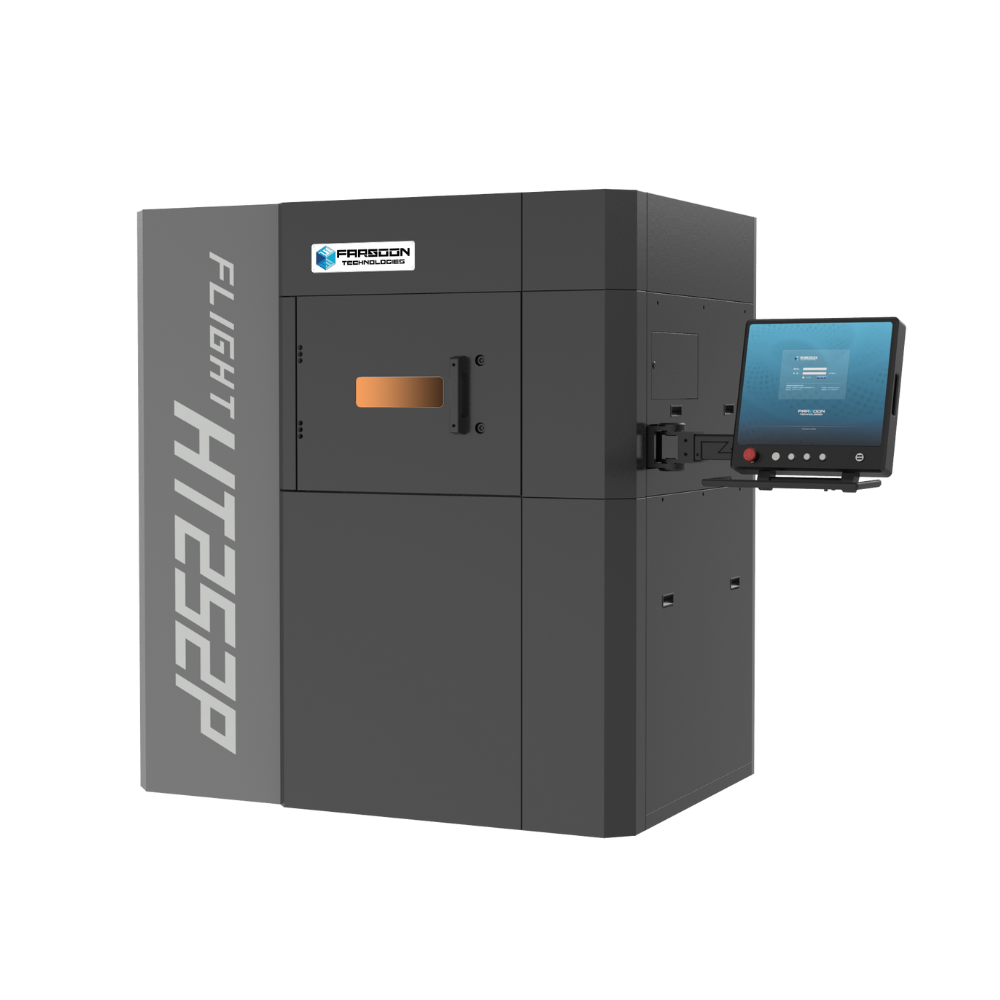

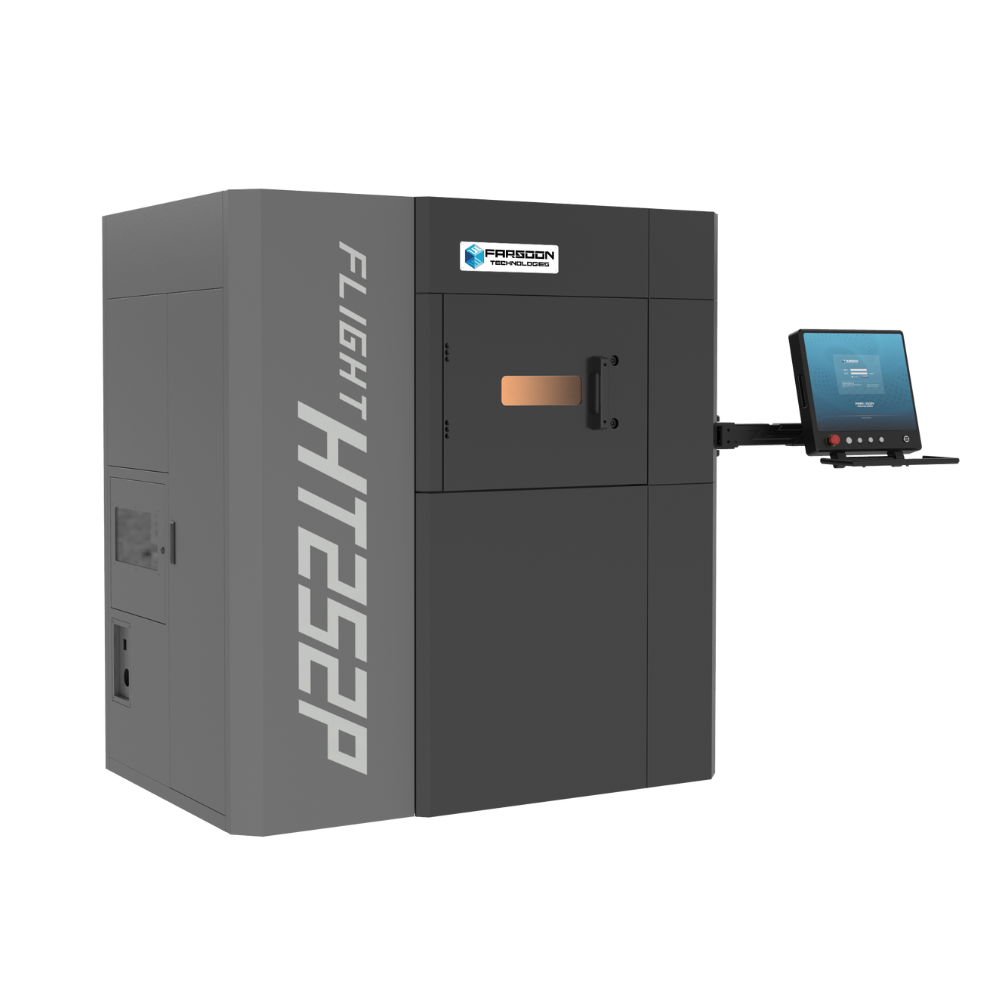

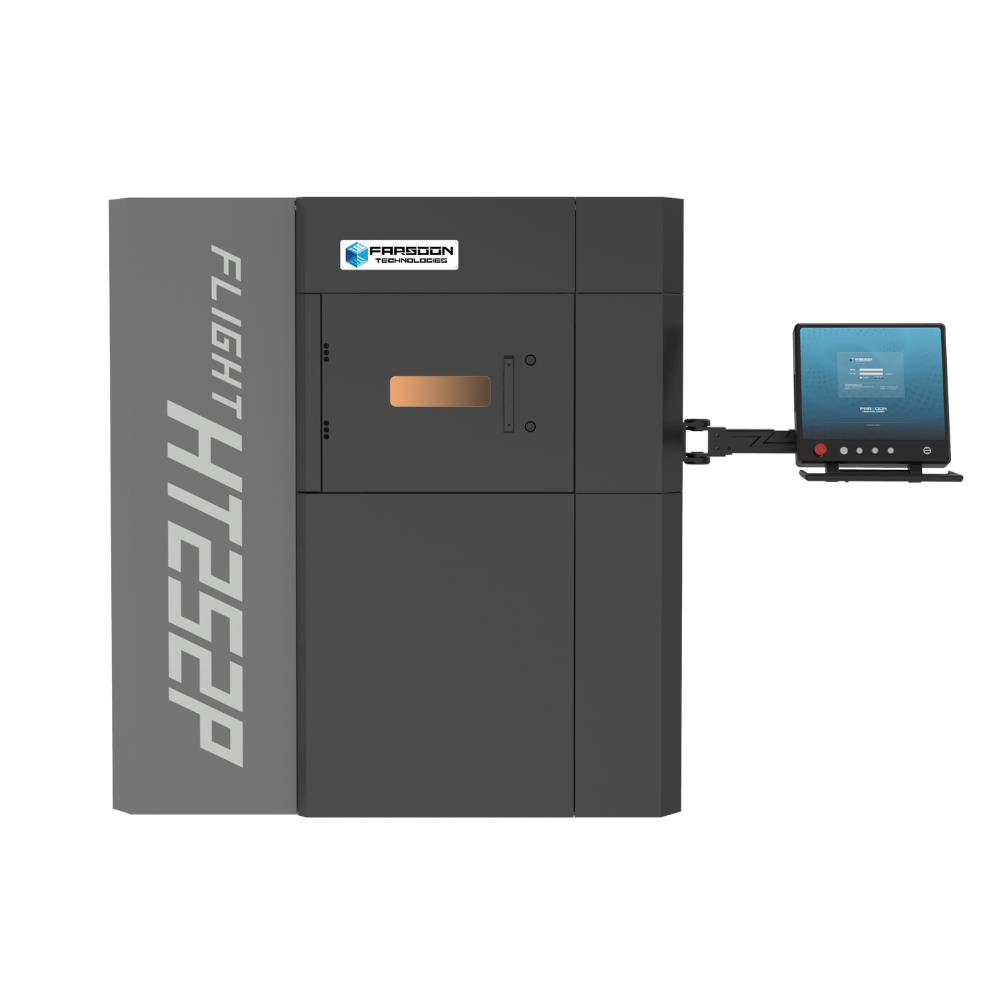

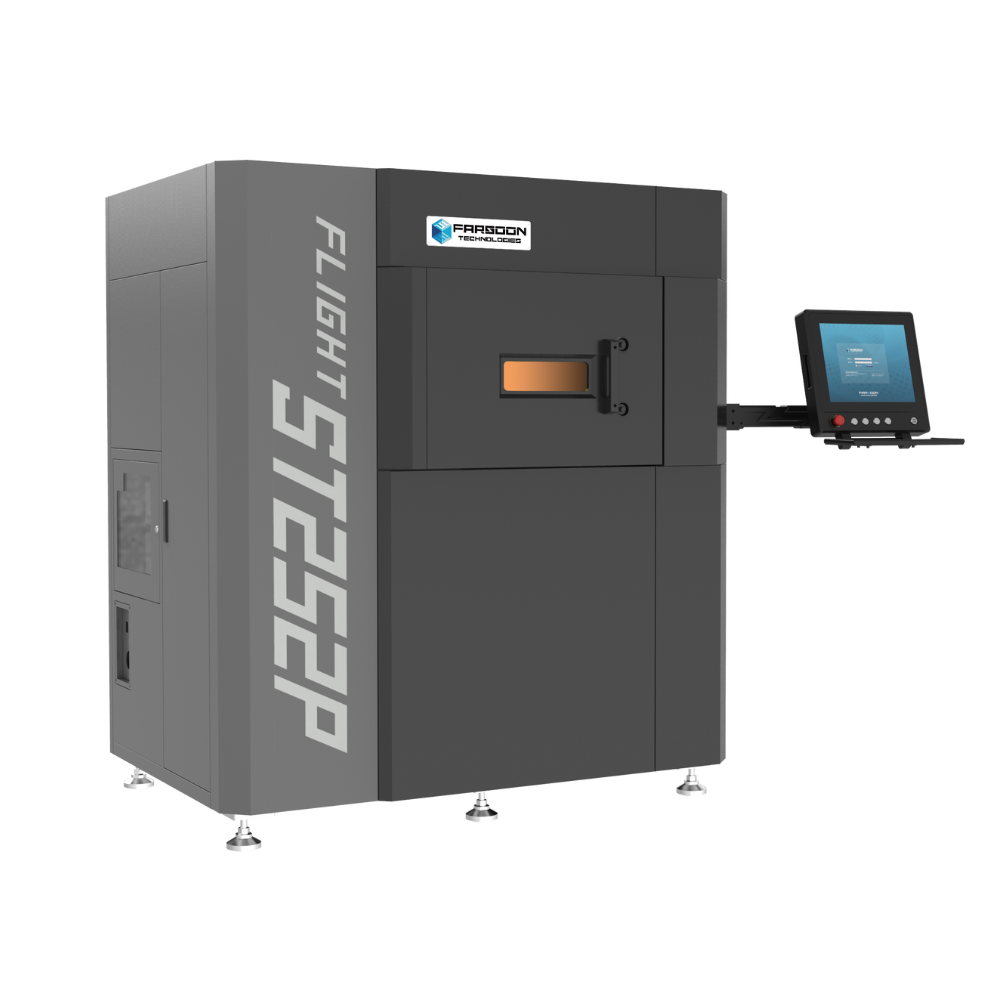

FLIGHT® 252P Series
High-Speed SLS with Fiber Laser Precision
Farsoon FLIGHT® 252P Series integrates a 300 W fiber laser with a 250 × 250 × 320 mm build volume, delivering faster scanning speeds and enhanced feature resolution.
Browse Farsoon 3D printers.
The products below are optional but included in the quote for successful operation.
Equipment: MCWI-15C Chiller, FS-M-50 Powder Mixer, FS04-PPS Powder Cleaning Station, ATTIX 961-01 Industrial Vacuum Cleaner, HC-9060A Sandblasting Machine, HSFD39-5 Nitrogen Generator, LG-10 Air Compressor, DHG-9123AS Powder Drying Oven
Technical Specifications
Download DatasheetSLS (Selective Laser Sintering)
250 × 250 × 320 mm
1 × 300 W Maxphotonics Fiber Laser
High-Precision 3-Axis Galvanometer System
≤ 20 m/s
FLIGHT® HT252P: 220 °C
FLIGHT® ST252P: 280 °C
0.06–0.30 mm
Nitrogen
Eight-Zone Heater and Intelligent Temperature Control Systems
Real-Time, Continuous Monitoring and Optimization of the Build Surface Temperature
Windows 11 (64-Bit)
BuildStar, MakeStar®: Open Access to Core Machine Parameters, Real-Time Changes to Build Parameters, 3D Visualization and Fault Diagnostics
STL
FLIGHT® HT252P: 1,735 × 1,205 × 1,975 mm
FLIGHT® ST252P: 1,735 × 1,225 × 1,975 mm
~ 1,800 kg
400 V ±10%, 3~/N/PE, 50/60 Hz, 40 A
22–28 °C
CE
FS3150CF (PA12-CF), FS6140GF (PA6-GF), FS3201PA-F (PA12), FS3300PA-F (PA12), FS3401GB-F (PA12-GB), FS6130CF-F (PA6-CF)
The system is an open platform; besides the listed materials, it is also compatible with third-party materials that the machine specifications support. Parameters must be developed separately.
Fiber Laser in the Compact Class
A 300 W fiber laser instead of CO₂: a smaller beam diameter, higher energy absorption and a 20 m/s scanning speed bring series production to the compact class.
FLIGHT® Fiber Laser Technology
A long-life, stable fiber laser and dynamic optics shorten sintering time and increase part density.
End-Use Parts
Functional parts ready for series production, with fine detail (down to 0.3 mm) and improved mechanical properties.
CF and GF Filled Materials
Carbon- and glass-fiber-reinforced PA6 and PA12 powders cover a wide range of uses, from prototypes to mold applications.
Electronic Wire Frame
FLIGHT® technology combines fast, small-batch production with high-resolution details down to 0.3 mm. The black PA12-based material meets mechanical requirements such as high-temperature resistance.
- Material
- FS3201PA-F (PA12)
- System
- FLIGHT® HT252P
System Workflow
-
Data Preparation
The build is laid out in BuildStar.
-
Powder Preparation
Powder is mixed and loaded.
-
3D Printing
Parts are built layer by layer with the laser.
-
Cooling
The chamber cools in a controlled way.
-
Depowdering
Parts are separated from the powder.
-
Post-Processing
Sandblasting and surface finishing are applied.
