FS3401GB-F
High-Rigidity Glass Bead Material for FLIGHT®
FS3401GB-F is a PA12-based SLS powder reinforced with glass beads, designed for FLIGHT® systems. It delivers exceptional stiffness, dimensional stability, and resistance to thermal and abrasive stress.
SLS (Selective Laser Sintering)Polymer Powders
Technical Specifications
Download Datasheet0.65 g/cm³
1.30 g/cm³
Black
185.5 °C (ISO 11357-1:2020)
62 °C (ISO 78-1:2020)
157 °C (ISO 78-1:2020)
47 MPa (ISO 527-1:2019)
2,810 MPa (ISO 527-1:2019)
8.7 % (ISO 527-1:2018)
73 MPa (ISO 178:2019)
2,550 MPa (ISO 178:2019)
9.5 kJ/m² (ISO 180:2019)
23 kJ/m² (ISO 180:2019)
FLIGHT® HT252P, FLIGHT® ST252P, FLIGHT® SS403P-H, FLIGHT® HT403P-H, FLIGHT® 403P-2 Series, FLIGHT® HT601P-4, FLIGHT® HT1001P-4
The material can also be used with third-party systems that meet its requirements, in addition to the listed systems. Parameters must be developed separately.
Key Features and Applications
Key Features
- Delivers excellent mechanical strength and rigidity.
- Provides outstanding dimensional stability.
- Shows good thermal and wear resistance.
Applications

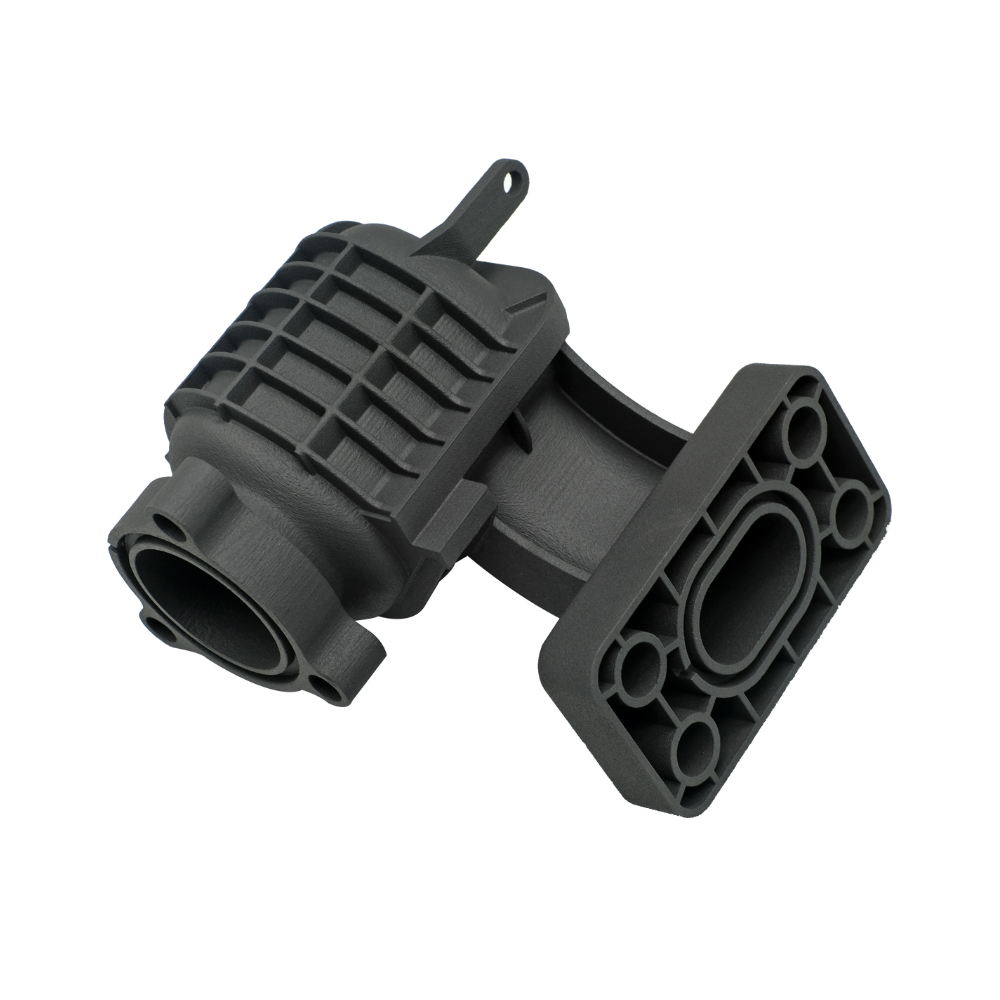

- Ideal for producing functional end-use parts.
- Industrial applications such as automotive engine systems and power tools.
