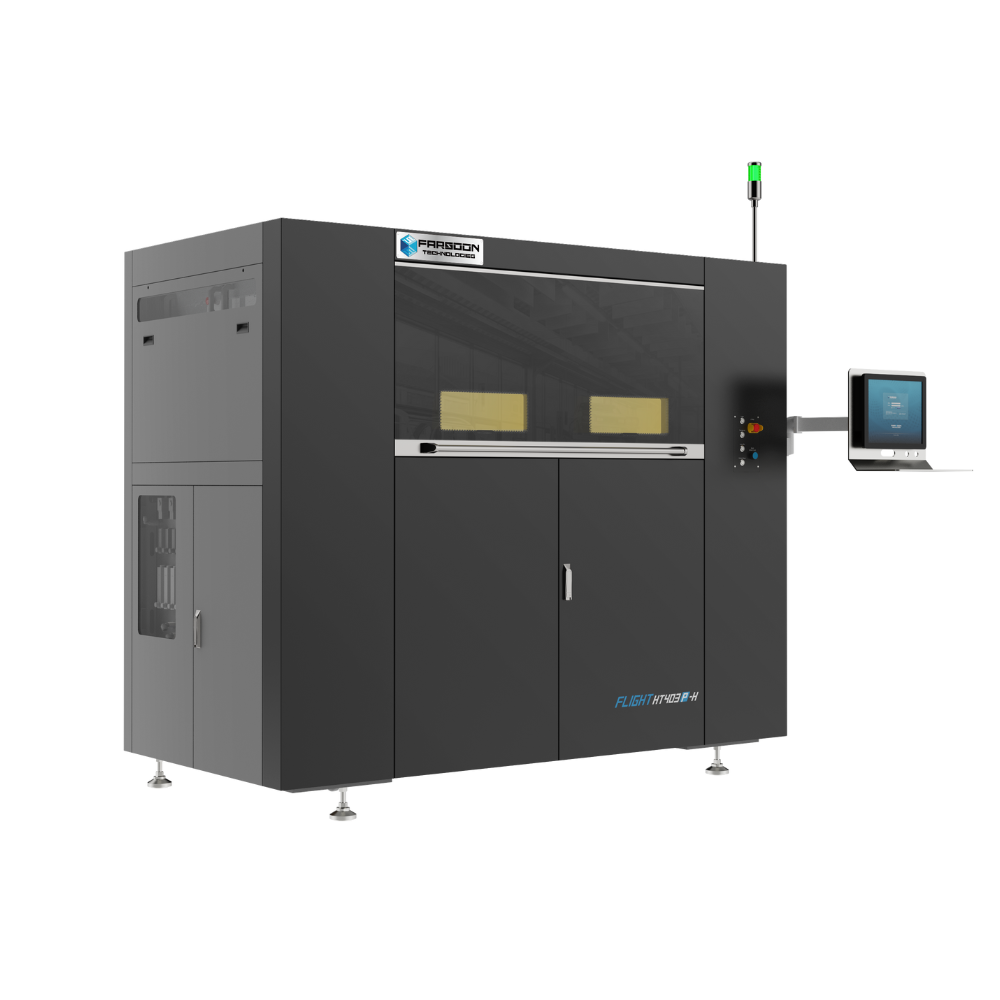

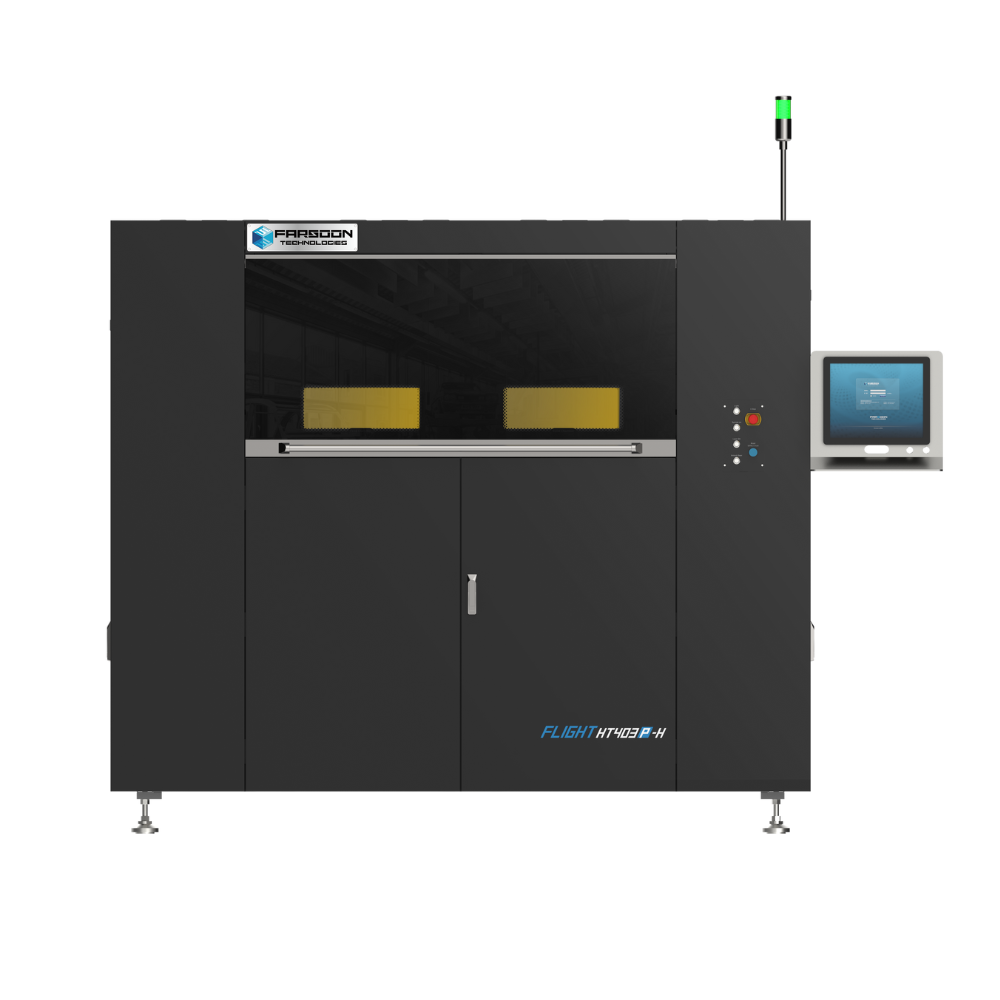

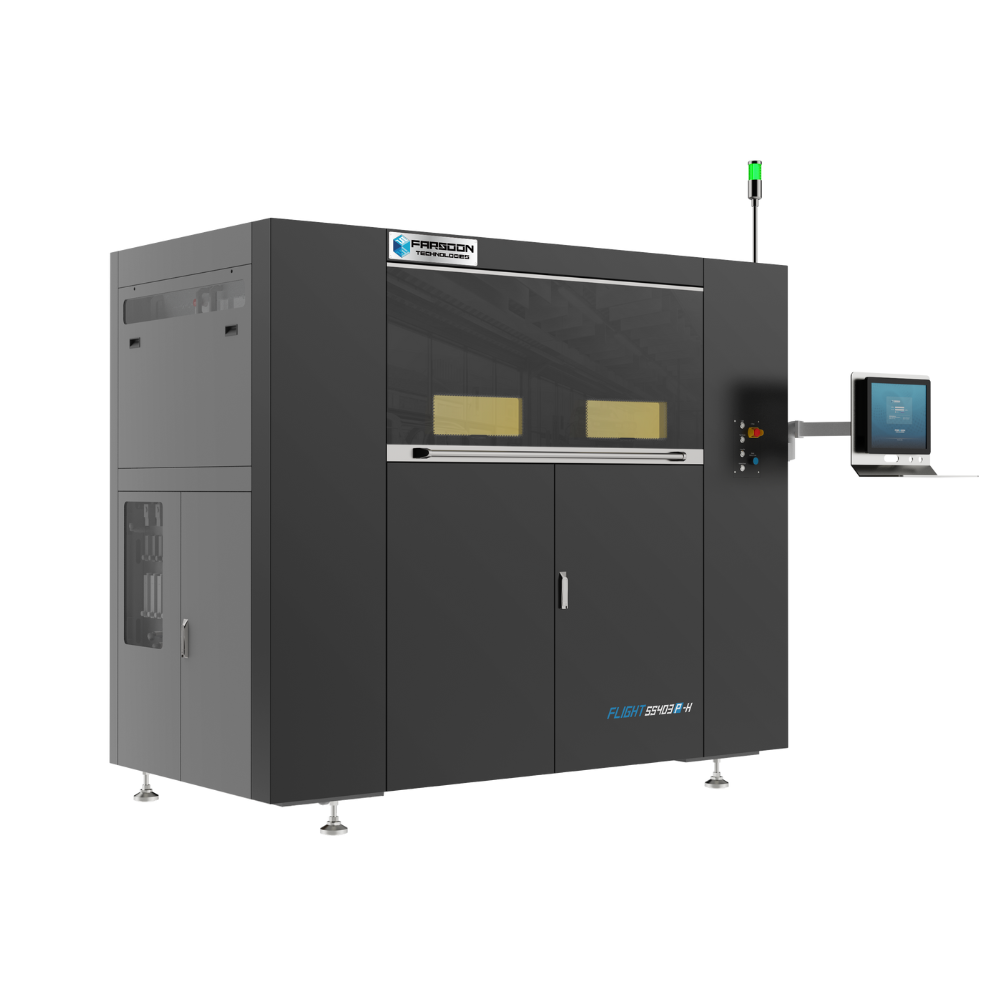

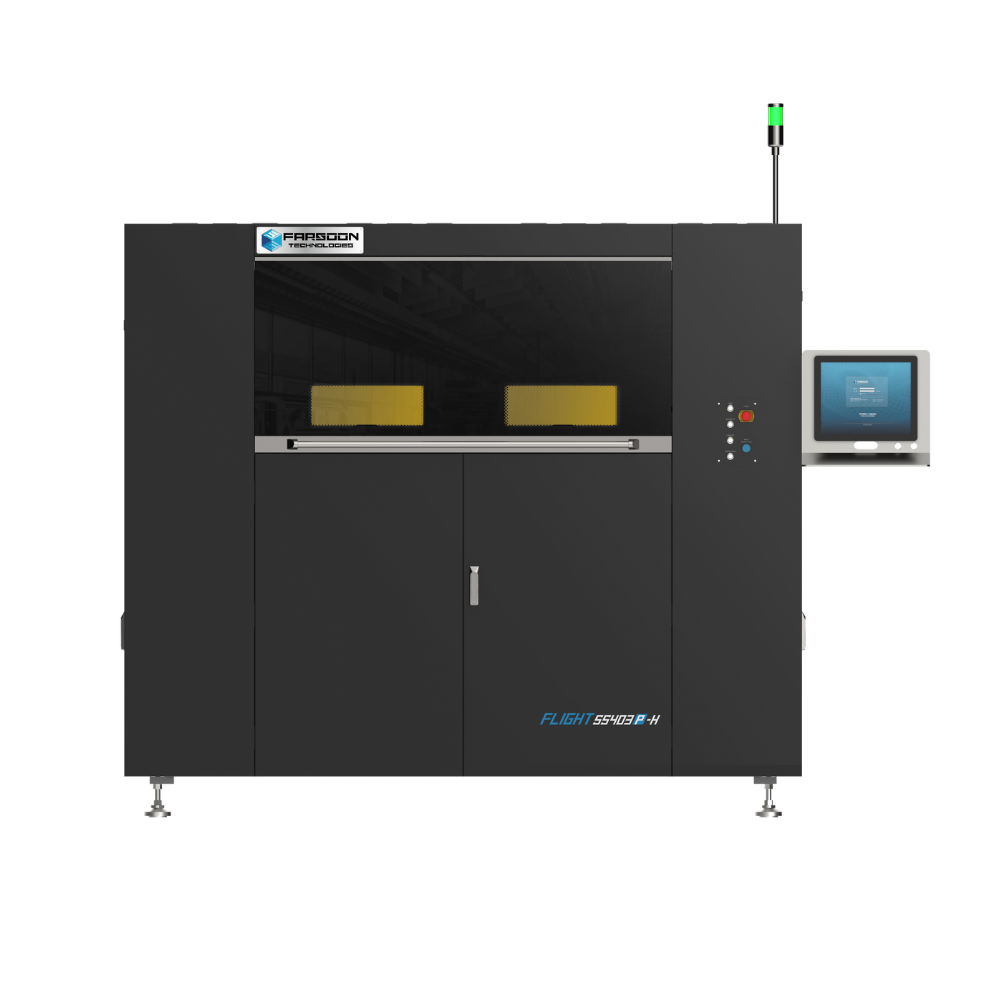

FLIGHT® 403P Series
Fast and Industrial Fiber Laser SLS
Farsoon FLIGHT® 403P Series combines a 400 × 400 × 540 mm build volume with a 500 W fiber laser, enabling scanning speeds up to 20 m/s. Its open platform and fine detail resolution down to 0.3 mm make it suitable for industrial-scale additive manufacturing.
Browse Farsoon 3D printers.
The products below are optional but included in the quote for successful operation.
Equipment: MCWI-15C Chiller, FS-EC-01P External Cooling Station, FS04-PPS Powder Cleaning Station, FS-PMS-02P Powder Management System, FS-M-50 Powder Mixer, ATTIX 961-01 Industrial Vacuum Cleaner, HC-9060A Sandblasting Machine, HSFD39-5 Nitrogen Generator, LG-10 Air Compressor, DHG-9123AS Powder Drying Oven
Technical Specifications
Download DatasheetSLS (Selective Laser Sintering)
400 × 400 × 540 mm
1 × 300 W Maxphotonics Fiber Laser
High-Precision 3-Axis Galvanometer System
≤ 20 m/s
FLIGHT® SS403P-H: 190 °C
FLIGHT® HT403P-H: 220 °C
0.06–0.30 mm
Nitrogen
Eight-Zone Heater and Intelligent Temperature Control Systems
Real-Time, Continuous Monitoring and Optimization of the Build Surface Temperature
Windows 11 (64-Bit)
BuildStar, MakeStar®: Open Access to Core Machine Parameters, Real-Time Changes to Build Parameters, 3D Visualization and Fault Diagnostics
STL
2,540 × 1,370 × 2,225 mm
~ 3,000 kg
400 V ±10%, 3~/N/PE, 50/60 Hz, 32 A
22–28 °C
CE
FLIGHT® SS403P-H: FS3150CF (PA12-CF), FS3201PA-F (PA12), FS3300PA-F (PA12), FS3401GB-F (PA12-GB)
FLIGHT® HT403P-H: FS3150CF (PA12-CF), FS6140GF (PA6-GF), FS3201PA-F (PA12), FS3300PA-F (PA12), FS3401GB-F (PA12-GB), FS6130CF-F (PA6-CF)
The system is an open platform; besides the listed materials, it is also compatible with third-party materials that the machine specifications support. Parameters must be developed separately.
High Throughput at Mid Volume
The first platform with FLIGHT® technology: a 300 W fiber laser and a 20 m/s scanning speed deliver high throughput at a mid-size build volume.
Fiber Laser, Dynamic Optics
New scanning algorithms and a dynamic optical system deliver more energy to the powder bed and shorter layer times.
High Detail
A small laser spot produces thin walls and lattice structures down to 0.3 mm, with superior surface quality.
PA End-Use Parts
A full set is produced in 24 hours with FS3300PA-F, giving certification-ready parts for automotive and aerospace.
Automotive Lighting Housing
A customized lighting housing and assembly: the design iteration cycle was shortened by 97%, and different designs were produced together in the same build.
- Material
- FS3200PA-F (PA12)
- System
- FLIGHT® HT403P-H
System Workflow
-
Data Preparation
The build is laid out in BuildStar.
-
Cartridge Loading
Powder is filled into the feed cartridge.
-
3D Printing
Parts are built layer by layer with the laser.
-
Cartridge Change
The cartridge cools outside the machine.
-
Depowdering
Parts are removed at the station.
-
Post-Processing
Sandblasting and surface finishing are applied.
