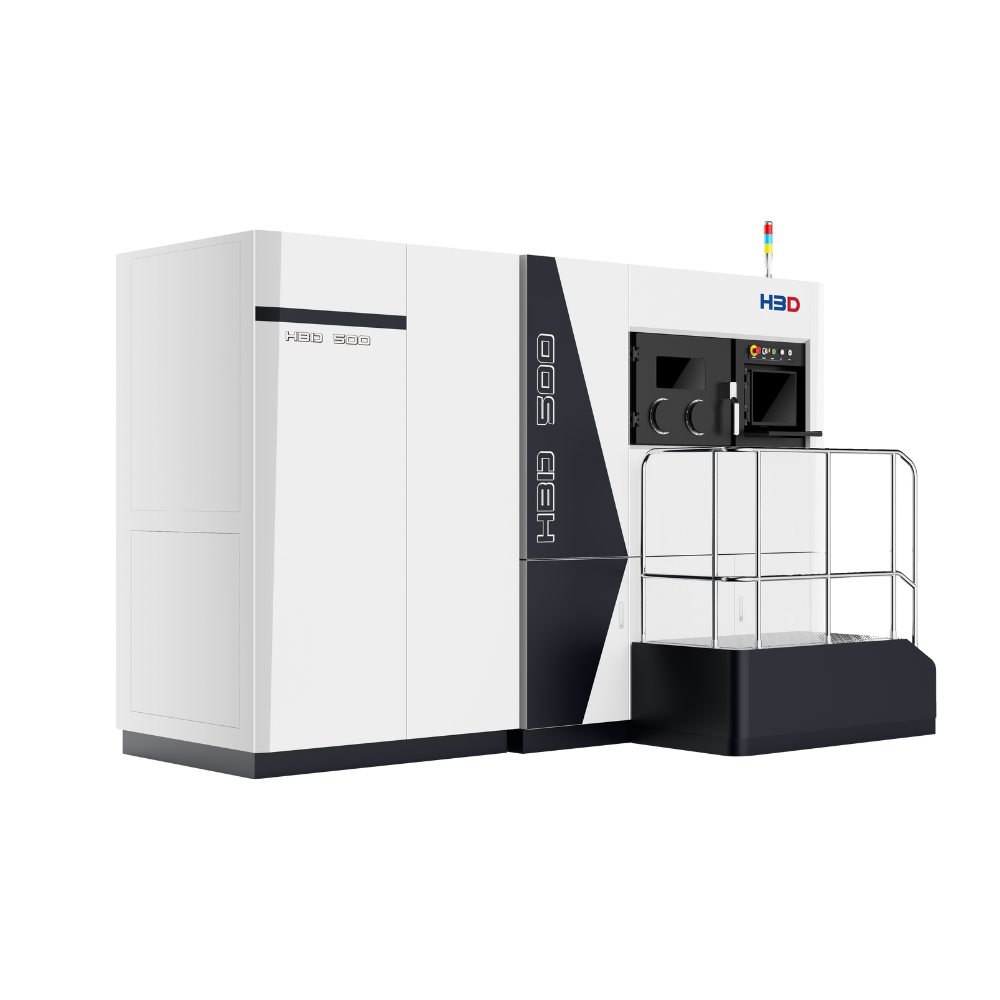

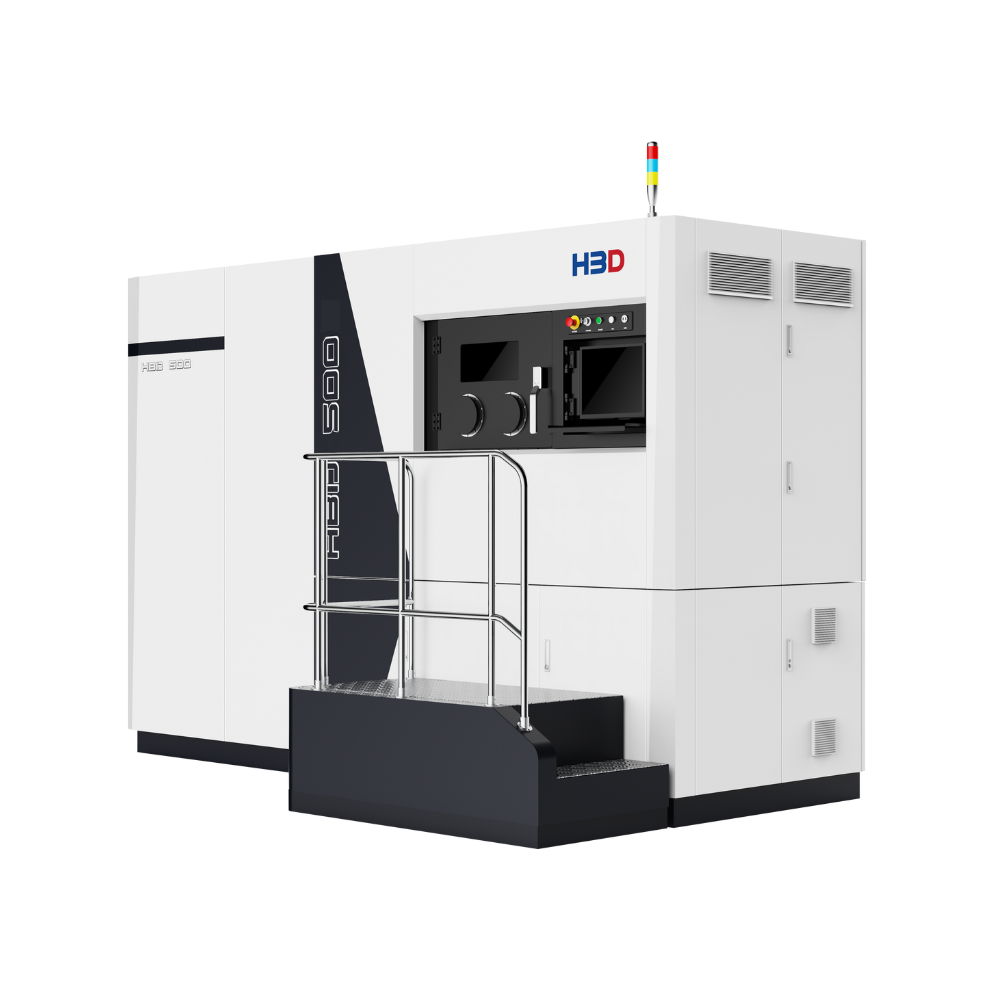

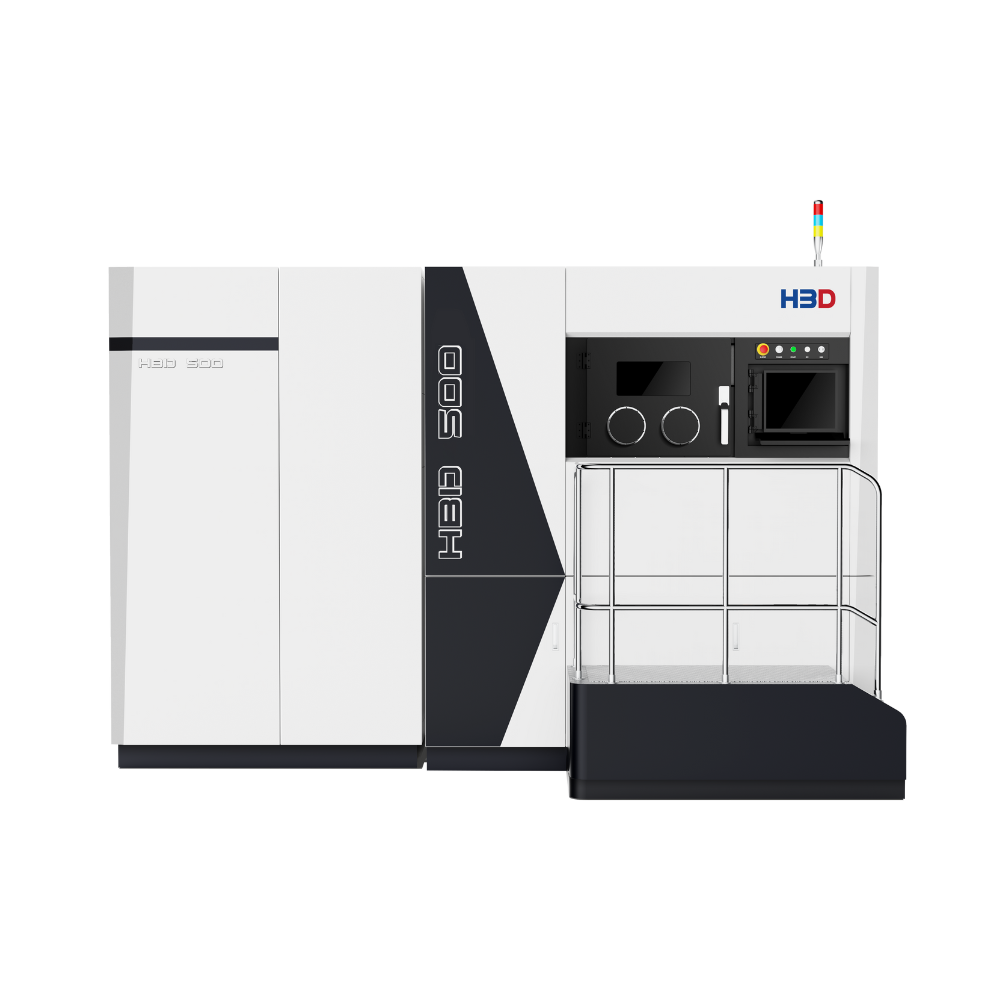

HBD 500
Ultimate Metal 3D Printing Solution
Featuring a superior large forming size, an efficient multi-laser configuration, exceptional wind field performance, and an intelligent powder recoating monitoring system, this setup achieves the ultimate in high quality and consistency.
Browse HBD 3D printers.
The products below are optional but included in the quote for successful operation.
Equipment: SPNA05 Multi-Purpose Forklift, LYL-18ZK Heat Treatment Furnace, YT-9080 Sandblasting Machine, BDL-A5 Nitrogen Generator, HG-AS50120 Grinding Machine, DK7745 Wire Cutting Machine, APM-D400A Powder Sieving Machine, HBD-XS-E500 Integrated Powder Suction and Sieving System, DZF-90A Powder Drying Oven, CB650-A Depowdering Station, MTL 451 INERT Z21-007 Vacuum Cleaner, SBW-SG-50KVA Voltage Stabilizer
Modules: Melt Pool Monitoring Module, Laser Seam Stitching Module
Technical Specifications
Download DatasheetLPBF (Laser Powder Bed Fusion)
430 × 520 × 520 mm (Height Including Build Plate)
20–120 µm
2 × 500 W Maxphotonics Laser; 3 × 500 W Maxphotonics Laser; 4 × 500 W Maxphotonics Laser; 2 × 1,000 W Maxphotonics Laser; 3 × 1,000 W Maxphotonics Laser; 4 × 1,000 W Maxphotonics Laser; 2 × 500 W IPG Photonics Laser; 3 × 500 W IPG Photonics Laser; 4 × 500 W IPG Photonics Laser; 2 × 1,000 W IPG Photonics Laser; 3 × 1,000 W IPG Photonics Laser; 4 × 1,000 W IPG Photonics Laser
≤ 10 m/s
70–200 µm
≤ 100 ppm
Fully Sealed Chamber; Automatic Oxygen Monitoring, Recirculating Purification and a Collection Coefficient of ≥ 99%
> 99.9%
0.05–0.2 mm
Marble Structure; Smart Powder Recoating Monitoring System
HBD AMES – HBD System Machine Control Software and HBD Build Expert Path-Planning Software; Open Parameter Structure
STL
2,280 × 1,560 × 2,570 mm
~ 4,500 kg
500 W: AC 380 V, 50/60 Hz, Peak Power ≤ 16–16.5 kW, Average Power ≤ 6.5–7 kW
1,000 W: AC 380 V, 50/60 Hz, Peak Power ≤ 17–18 kW, Average Power ≤ 7.5–8.5 kW
CE
HBD 316L (Stainless Steel), HBD 15-5PH (Stainless Steel), HBD 17-4PH (Stainless Steel), HBD 18Ni300 (Maraging Steel), HBD 420 (Tool Steel), HBD CX (Tool Steel), HBD AlSi10Mg (Aluminum Alloy), HBD TC4 (Titanium Alloy), HBD TA15 (Titanium Alloy), HBD CoCrMo (Cobalt Alloy), HBD IN718 (Superalloy), HBD IN625 (Superalloy), HBD Hastelloy X (Superalloy), HBD GH99 (Superalloy), HBD GH230 (Superalloy)
The system is an open platform; besides the listed materials, it is also compatible with third-party materials that the machine specifications support. Parameters must be developed separately.
Developed for Aerospace Applications
With a marble body structure, front and rear access doors and smart recoating monitoring, the HBD 500 produces large metal parts in a 430 × 520 × 520 mm build volume with high precision and long-term stability.
Convenient Front and Rear Doors
Front and rear access doors provide easy access for part removal and cleaning, making the machine easier to operate.
Marble Base for Stability
The marble structure provides long-term stability and improved print accuracy in metal additive manufacturing.
Smart Powder Recoating Monitoring
The monitoring system ensures efficient powder recoating, optimizing print quality and production processes.
Large Build Volume
The 430 × 520 × 520 mm build volume enables high-precision production of large metal components.
3D printed with HBD 500.
Alloy Wheel
Burner Head
Combustion Chamber Liner
Intake Pipe
Thin-Wall Flanged Ring
From powder to finished part in twelve steps.
The entire process runs on a single line with HBD equipment and additional modules.
-
Powder Drying
-
3D Print Preparation
-
Sieving and Suction
-
Powder Feeding
-
3D Printing
-
Depowdering
-
Stress Relief
-
Removal from the Build Plate
-
Support Removal
-
Heat Treatment
-
Sandblasting
-
Grinding
