HBD CX Tool Steel
Stainless Steel for Corrosion-Resistant Tools
HBD CX tool steel, also known as CORRAX or 12Cr9Ni, is used in plastic manufacturing molds for its excellent corrosion resistance and good hardness. It offers better corrosion resistance than 18Ni300, making it ideal for mold inserts and waterway components.
Technical Specifications
Download DatasheetFe (Balance), Cr 11.0–13.0, Ni 8.4–10.0, Mo 1.1–1.7, Al 1.2–2.0, Mn ≤ 0.4, Si ≤ 0.4, C ≤ 0.05 (GB/T 20878-2007)
15–53 µm (GB/T 19077-2016)
~ 7.7 g/cm³ (GB/T 3850-2015)
> 99.9% (GB/T 3850-2015)
≥ 6 µm (GB/T 40389-2021)
900 ± 100 MPa (GB/T 228.1-2015)
1,000 ± 100 MPa (GB/T 228.1-2015)
16 ± 3 % (GB/T 228.1-2015)
35 ± 3 HRC (GB/T 230.1-2018)
1,500 ± 100 MPa (GB/T 228.1-2015)
1,600 ± 100 MPa (GB/T 228.1-2015)
10 ± 2 % (GB/T 228.1-2015)
48 ± 2 HRC (GB/T 230.1-2018)
1 Hour at 900 °C, Air Cooling; 4 Hours at 530 °C, Furnace Cooling
HBD 150, HBD 200, HBD 200Pro, HBD 400, HBD 500, HBD 600, HBD 800, HBD 1600
Besides the listed systems, the material can also be used with third-party systems that meet its requirements. Parameters must be developed separately.
Key Features and Applications
Key Features
- Combines corrosion resistance and hardness.
- Reaches 48 HRC hardness with heat treatment.
- Provides polishable mold surfaces.
Applications

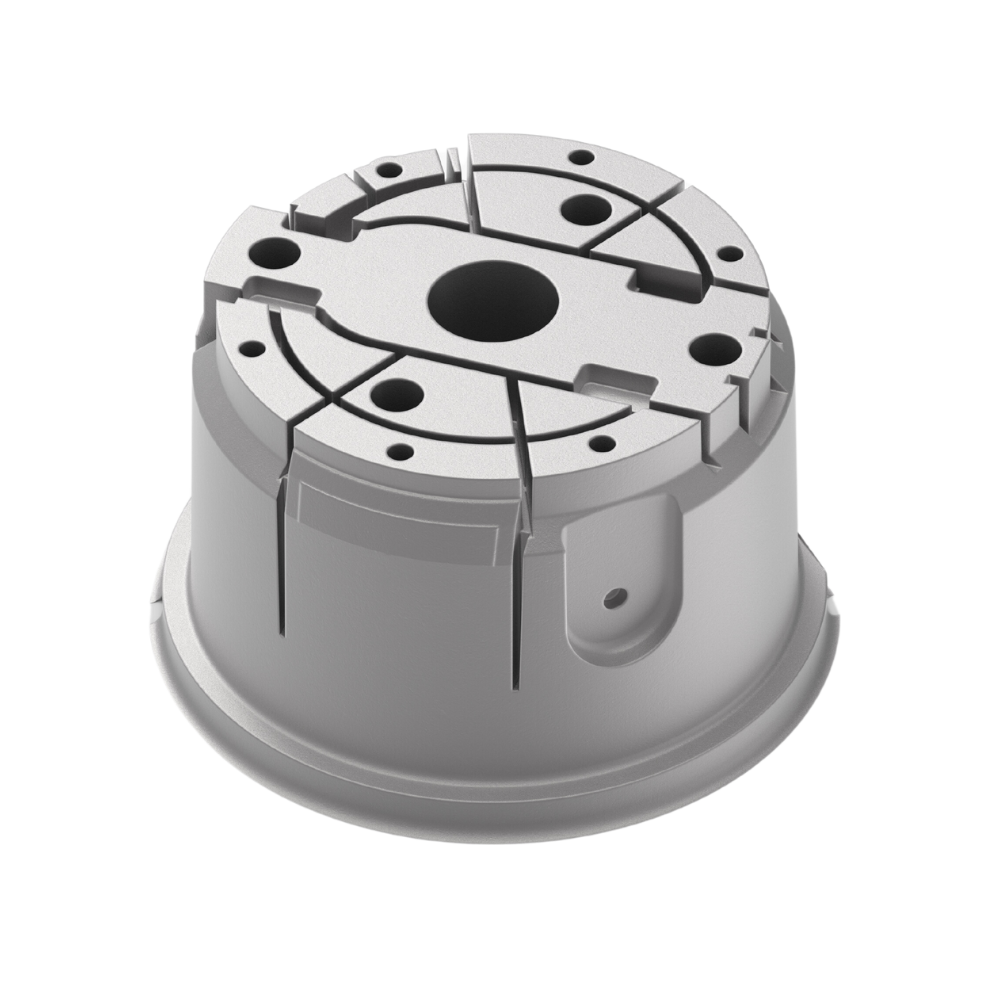

- Female mold inserts for cup lids and bottle necks.
- Mold inserts with conformal cooling channels.
