Intamsys INTAM™ PEKK 3D Printing Material

Intamsys

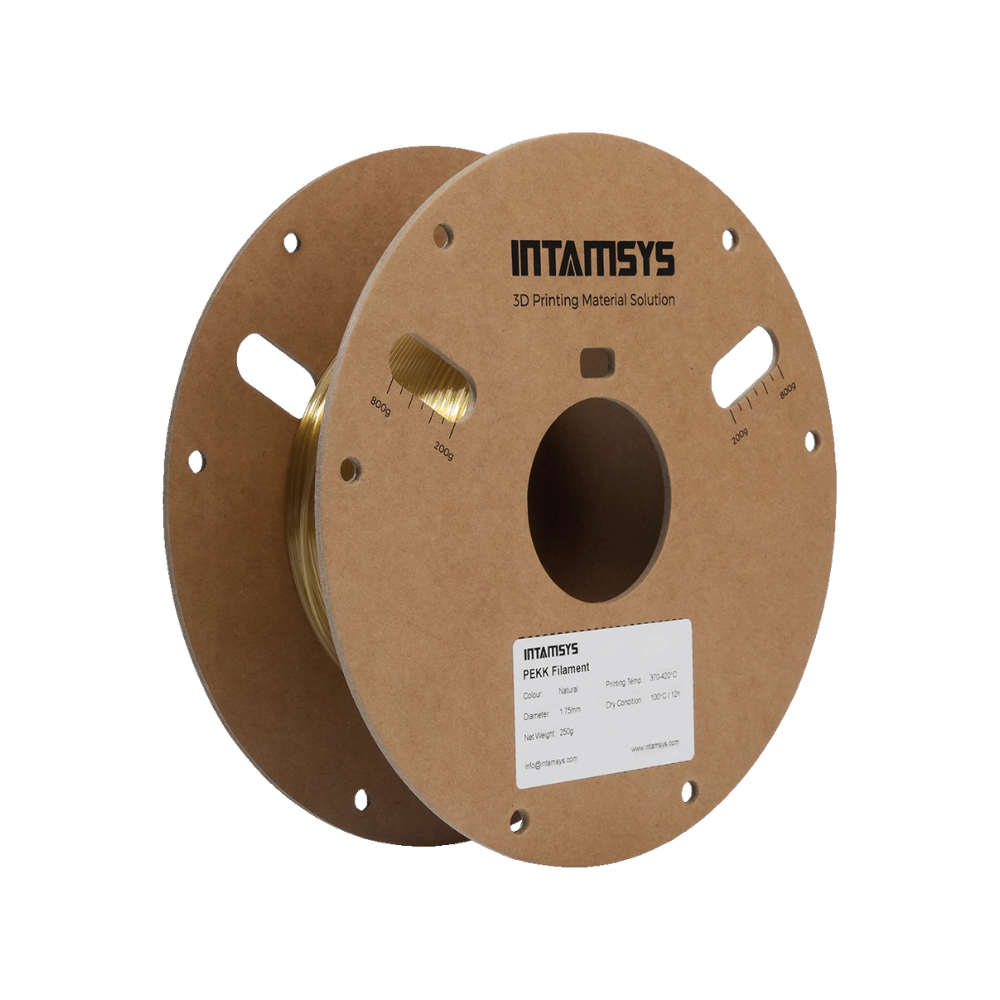

INTAM™ PEKK

Name: INTAM™ PEKK
Brand: Intamsys

Engineered for Harsh Environments

PEKK offers an exceptional balance of thermal strength, chemical resistance, and flame retardancy thanks to its semi-crystalline structure. Well-suited for critical components in aerospace, energy, and high-performance industrial applications.

FFF (Fused Filament Fabrication)Thermoplastic Filaments

Color: Natural

Weight:

Product variants:

Get a Quote

Technical Specifications

Download Datasheet

1.29 g/cm³ (ISO 1183, Crystalline)

160 °C (ISO 11357)

335 °C (ISO 11357)

146 °C (ISO 75-F)

86 / 60 MPa (ISO 527)

3,984 / 2,770 MPa (ISO 527)

5.5 / 3.1% (ISO 527)

146 MPa (ISO 178)

5,220 MPa (ISO 178)

5.2 kJ/m² (ISO 179, Notched)

FUNMAT HT, FUNMAT PRO 310 APOLLO, FUNMAT PRO 410, FUNMAT PRO 610HT

Can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.

Key Features and Applications

Key Features

Offers a stable chemical structure.
Provides superior mechanical and thermal strength.
Shows chemical and fire resistance.

Applications

Ideal for aerospace and defense components.
Oil and gas and industrial parts operating at high temperatures.

Compatible Systems

Can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.

Typical values are for reference and comparison only and must not be used for design specifications or quality control. Actual values may vary with printing conditions. Test specimens were produced under laboratory conditions on FUNMAT 3D printers with 100% infill.
