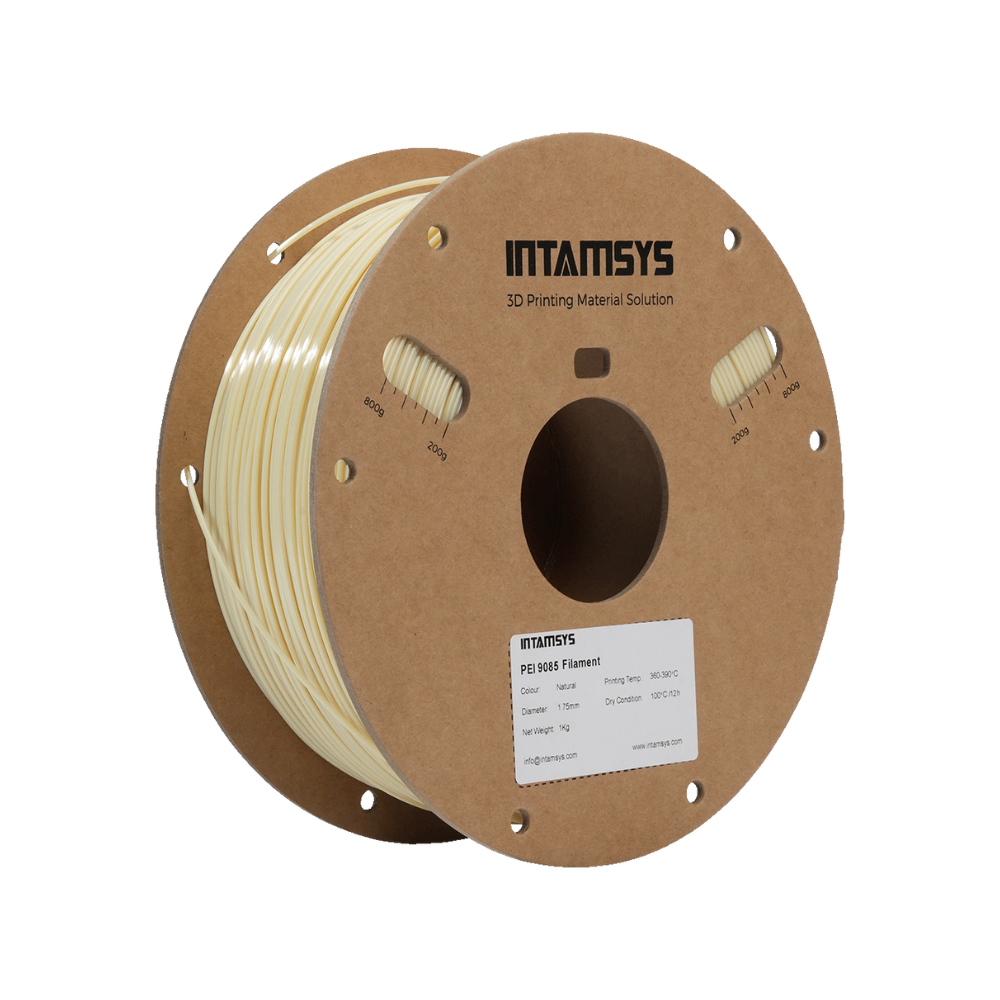

INTAM™ PEI 9085
Aerospace-Grade PEI 9085
PEI 9085 (ULTEM™) meets aerospace fire safety standards FAR 25.853 and OSU 55/55, with high strength-to-weight ratio and excellent thermal resistance. Approved by major aerospace OEMs, it's also suitable for rail and other transport applications requiring strict FST compliance.
FFF (Fused Filament Fabrication)Thermoplastic Filaments
Technical Specifications
Download Datasheet1.34 g/cm³ (ASTM D792)
186 °C (DSC, 10 °C/min)
168 °C (ASTM D648, 3.2 mm)
73 MPa (ASTM D638)
2,230 MPa (ASTM D638)
4.5% (ASTM D638)
116 MPa (ASTM D790)
2,340 MPa (ASTM D790)
115 J/m (ASTM D256, Notched)
Compliant (FAR 25.853)
V0 (UL94, 1.5 mm)
44 kW·min/m² (FAR 25.853, 1.5 mm)
FUNMAT PRO 610HT
Besides the listed systems, it can also be used with third-party systems that meet the material requirements. Parameters must be developed separately.
Key Features and Applications
Key Features
- Meets the aerospace FAR 25.853 and OSU 55/55 heat release requirements.
- Rated EN 45545 R6-HL3 for rail applications.
- Offers a high strength-to-weight ratio and an FST rating.
Applications
- Ideal for aircraft cabin interior components.
- Interior parts for rail and public transport.
