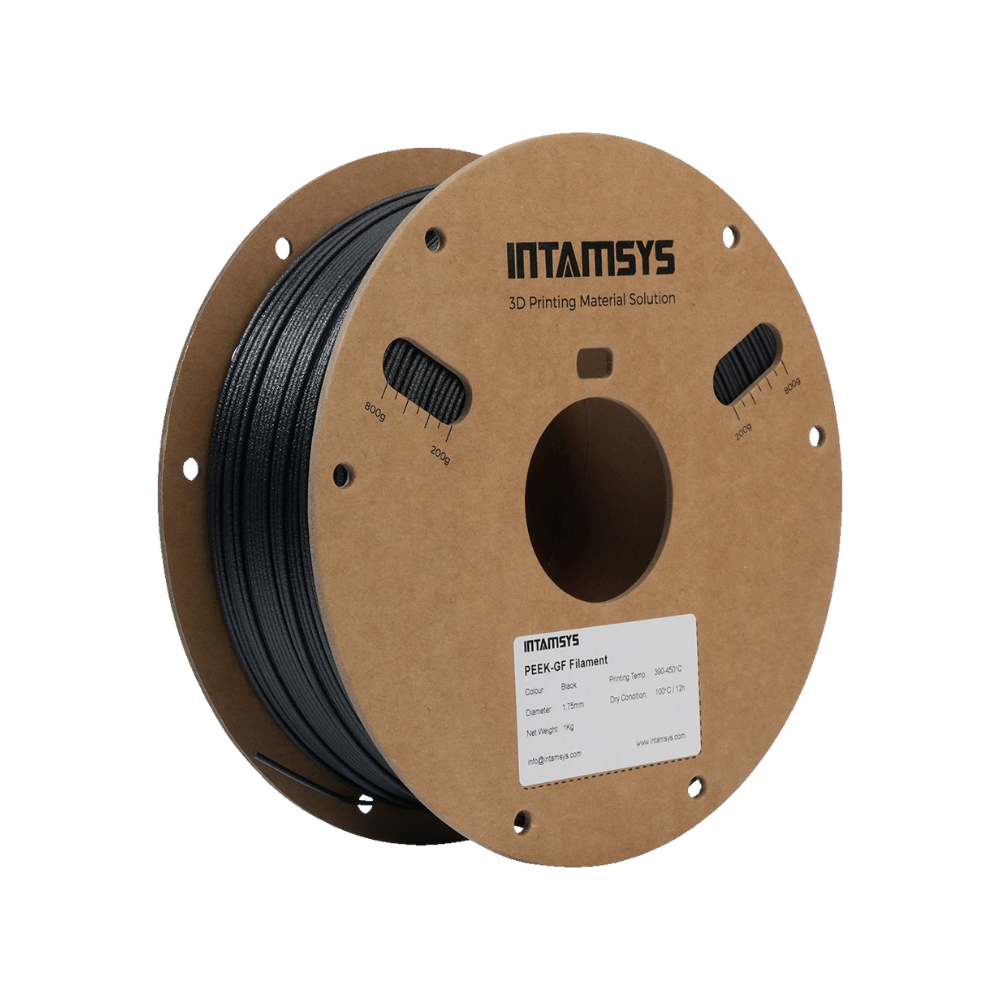

INTAM™ PEEK-GF
Glass-Fiber Reinforced PEEK
With 10% glass fiber reinforcement, PEEK-GF delivers excellent stiffness and dimensional stability under heat. A strong choice for high-load parts exposed to temperature fluctuations and humidity.
FFF (Fused Filament Fabrication)Thermoplastic Filaments
Technical Specifications
Download Datasheet1.35 g/cm³ (ISO 1183, Crystalline)
143 °C (ISO 11357)
343 °C (ISO 11357)
144 °C (ISO 75-F)
12 g/10 min (ISO 1133, 380 °C, 5 kg)
69 MPa (ISO 527)
158.7 MPa (ISO 178)
5,713 MPa (ISO 178)
8.9 kJ/m² (ISO 179, Notched)
FUNMAT HT, FUNMAT PRO 310 APOLLO, FUNMAT PRO 410, FUNMAT PRO 610HT
Can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.
Key Features and Applications
Key Features
- Offers high stiffness through glass fiber reinforcement.
- Provides high heat resistance.
- Shows dimensional stability with low water absorption.
Applications
- Ideal for high-temperature parts that require electrical insulation.
- Industrial jigs and fixtures and structural components.
