Intamsys INTAM™ PEEK-CF 3D Printing Material

Intamsys

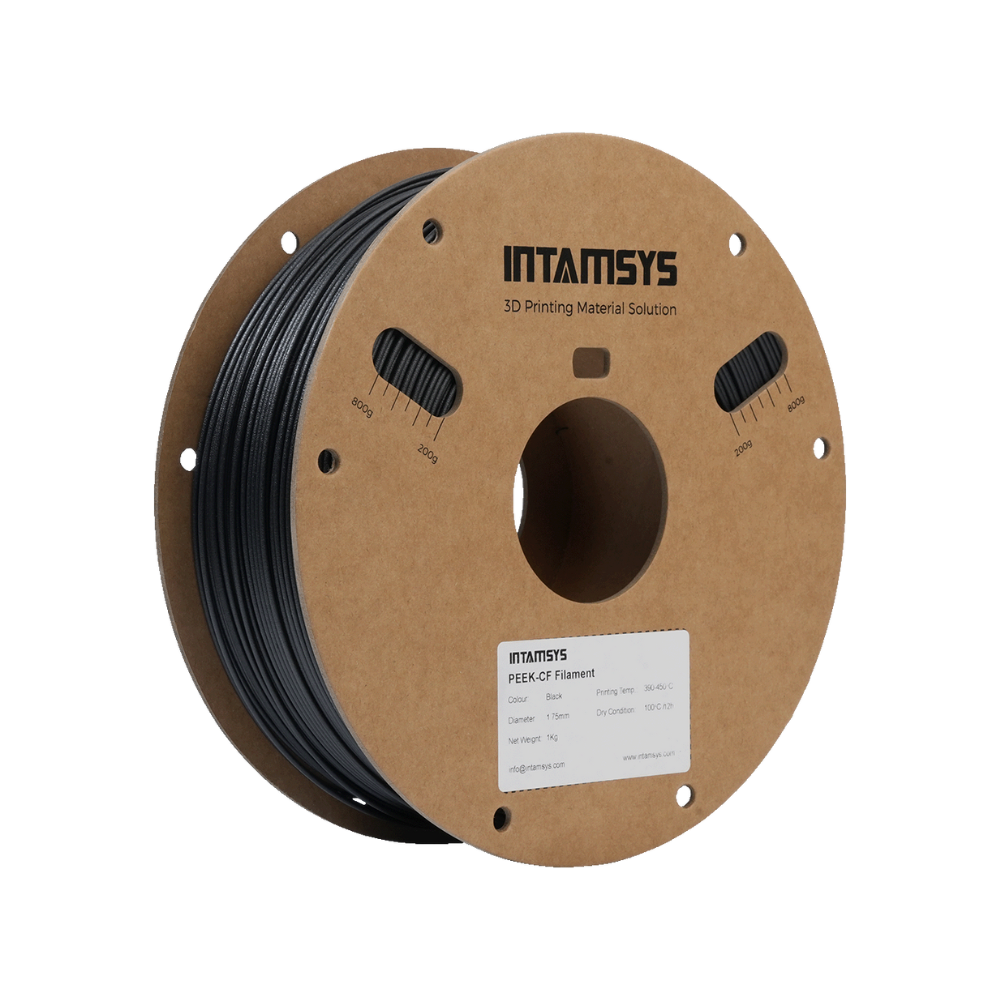

INTAM™ PEEK-CF

Name: INTAM™ PEEK-CF
Brand: Intamsys

Carbon-Fiber Reinforced PEEK

PEEK-CF is reinforced with 10% chopped carbon fiber, delivering extreme stiffness, heat resistance, and improved thermal conductivity. Ideal for lightweight, high-load parts in aerospace, automotive, and industrial environments.

FFF (Fused Filament Fabrication)Thermoplastic Filaments

Color: Black

Weight:

Product variants:

Get a Quote

Technical Specifications

Download Datasheet

1.34 g/cm³ (ISO 1183, Crystalline)

143 °C (ISO 11357)

343 °C (ISO 11357)

144 °C (ISO 75-F)

12 g/10 min (ISO 1133, 380 °C, 5 kg)

69 MPa (ISO 527)

168.6 MPa (ISO 178)

6,338 MPa (ISO 178)

9.7 kJ/m² (ISO 179, Notched)

V0 (UL94)

FUNMAT HT, FUNMAT PRO 310 APOLLO, FUNMAT PRO 410, FUNMAT PRO 610HT

Can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.

Key Features and Applications

Key Features

Offers high stiffness through carbon fiber reinforcement.
Provides high heat resistance.
Delivers UL94 V0 flame retardancy.

Applications

Ideal for lightweight, rigid structural parts.
Metal replacement in aerospace and automotive.

Compatible Systems

Can also be used with third-party systems that meet the material requirements, in addition to the listed systems. Parameters must be developed separately.

Typical values are for reference and comparison only and must not be used for design specifications or quality control. Actual values may vary with printing conditions. Test specimens were produced under laboratory conditions on FUNMAT 3D printers with 100% infill.
