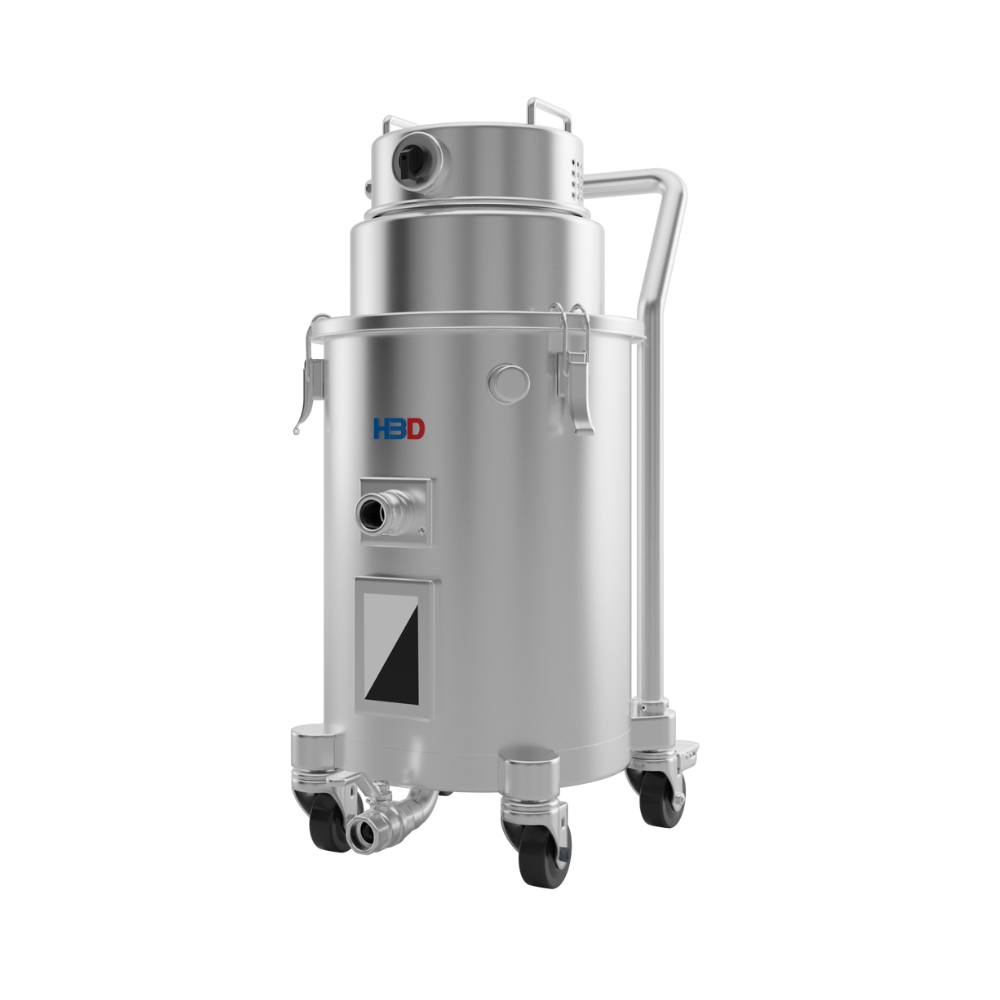

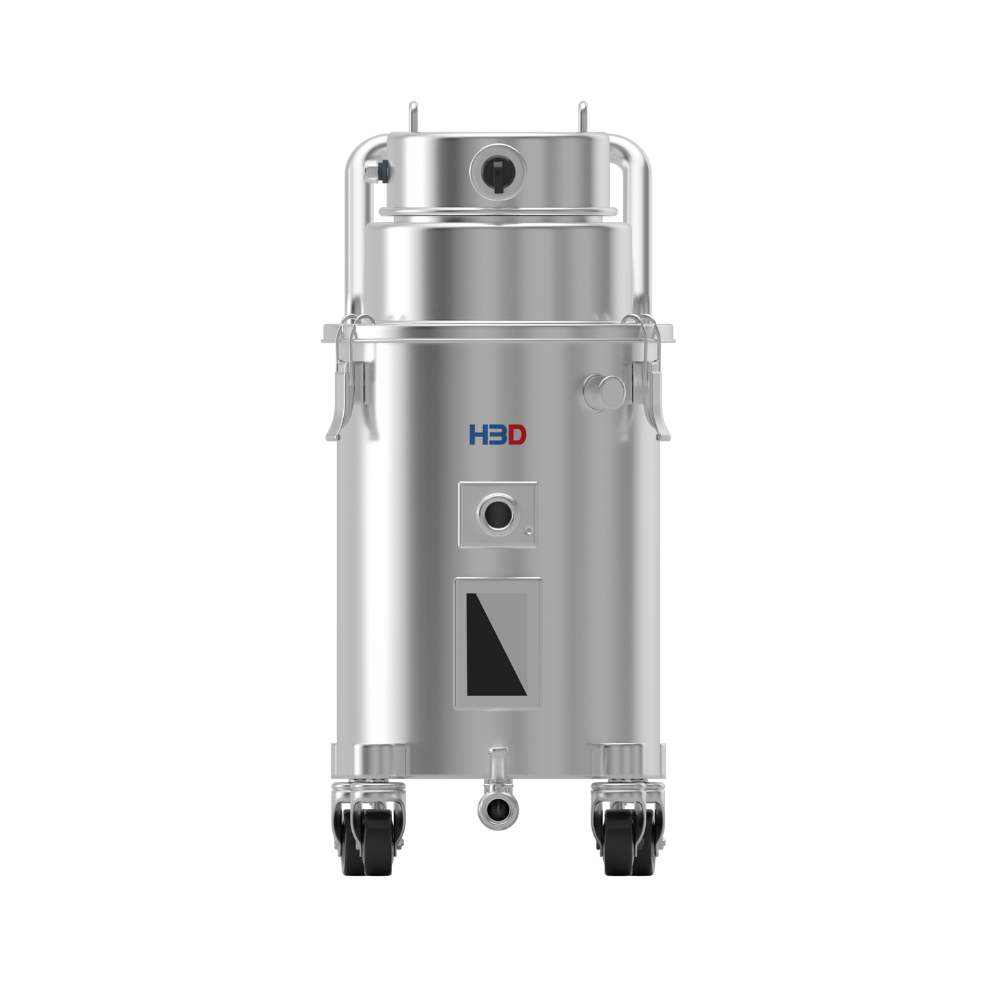

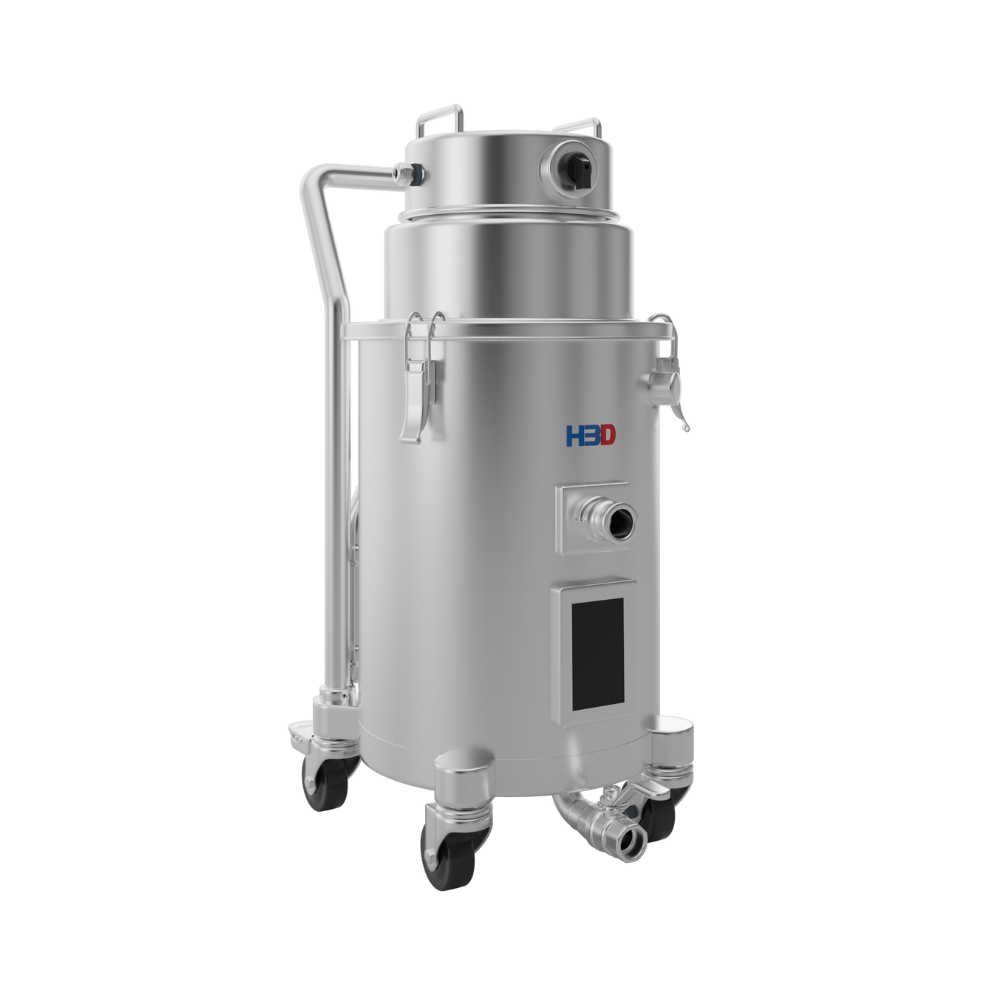

HBD Dust Cleaner
Dust Cleaner for Metal 3D Printing
HBD Dust Cleaner is designed to efficiently collect and recycle excess metal powder during the 3D printing process, reducing waste and ensuring the material can be reused.
Compatible TechnologyLPBF (Laser Powder Bed Fusion)
Compatible MaterialsMetal Powders (Metals)
Compatible Technology
LPBF (Laser Powder Bed Fusion)—also known as SLM (Selective Laser Melting)
Compatible 3D Printers
HBD 150, HBD 200, HBD 350, HBD 400, HBD 500, HBD 1000Pro
Maximum Vacuum Rate
2,285 mm H₂O (115 V) / 2,250 mm H₂O (230 V)
Maximum Airflow Rate
200 m³/h (115 V) / 215 m³/h (230 V)
Noise Level
77 dB(A)
Filter Type
Polyester Antistatic Class M
Filter Surface Area
20,000 cm²
Dust Capacity
4 l
Suction Inlet Diameter
50 mm
Optimal Room Temperature
5–45 °C
Optimal Room Humidity
≤70%
Power Requirements
AC 115 V/230 V, 50/60 Hz, 1.1 kW
Machine Dimensions
500 x 630 x 1,360 mm
Machine Weight
44 kg
CE Certificate
Yes
ATEX Certificate
Yes
